Yealink CS10-D Low-Profile 2-Way Coaxial Ceiling Loudspeaker (Dante Edition)
- Brand: Yealink
- MPN: 1306036
- Part #: VCYLK1306036

Product URL: https://www.pbtech.com/pacific/product/VCYLK1306036/Yealink-CS10-D-Low-Profile-2-Way-Coaxial-Ceiling-L
Features
The Yealink CS10-D, a low-profile (120mm) 2-way coaxial network speaker, excels in video conferencing with its exceptional audio performance. Designed specifically for the modern meeting environment, the CS10-D blends high-quality audio with an elegant, minimalist design, making it a perfect match for contemporary conference rooms. Featuring support for the Dante audio transmission protocol, the CS10-D seamlessly integrates with a wide range of standard Dante devices, delivering a versatile and convenient collaborative experience.
Practical and Aesthetic Integration

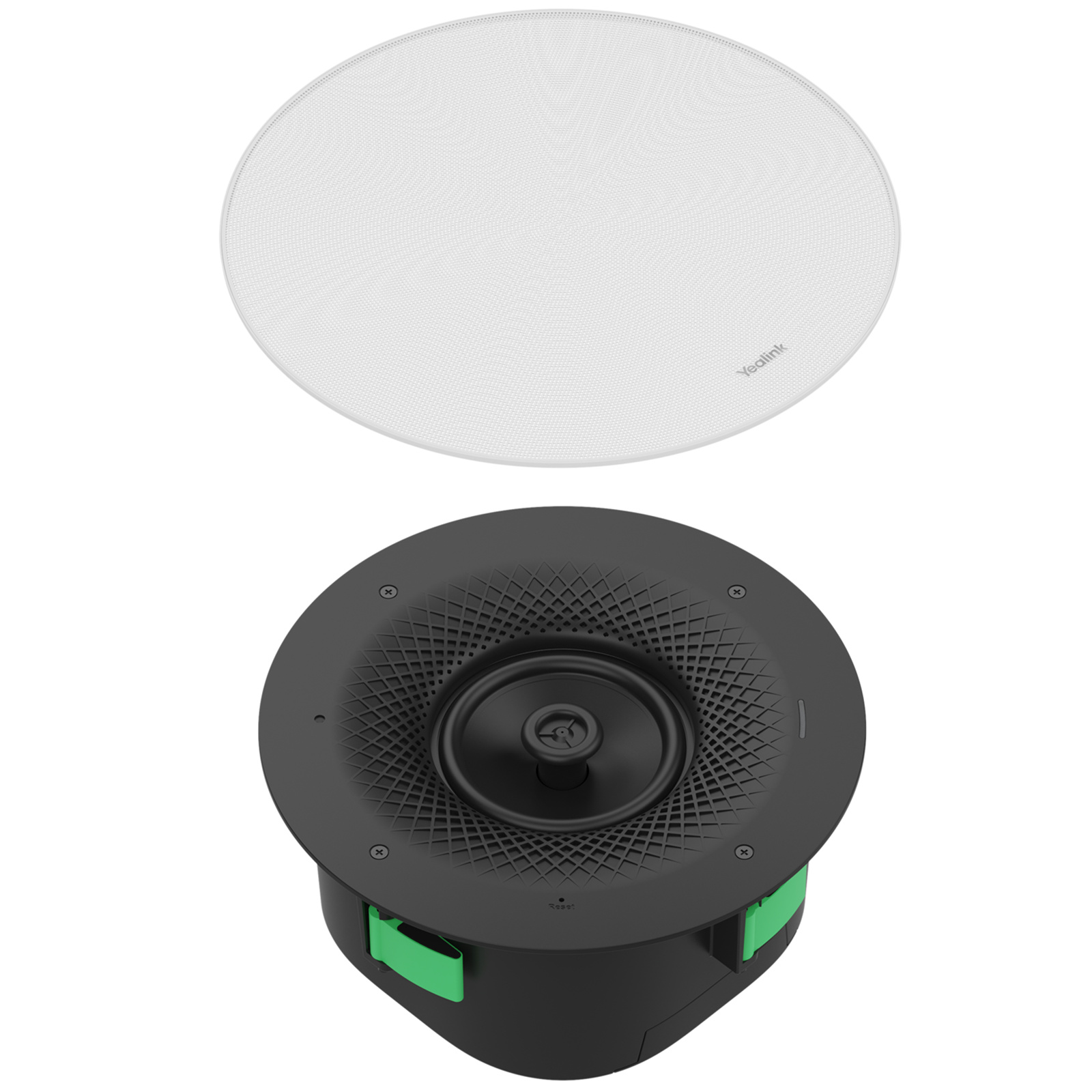

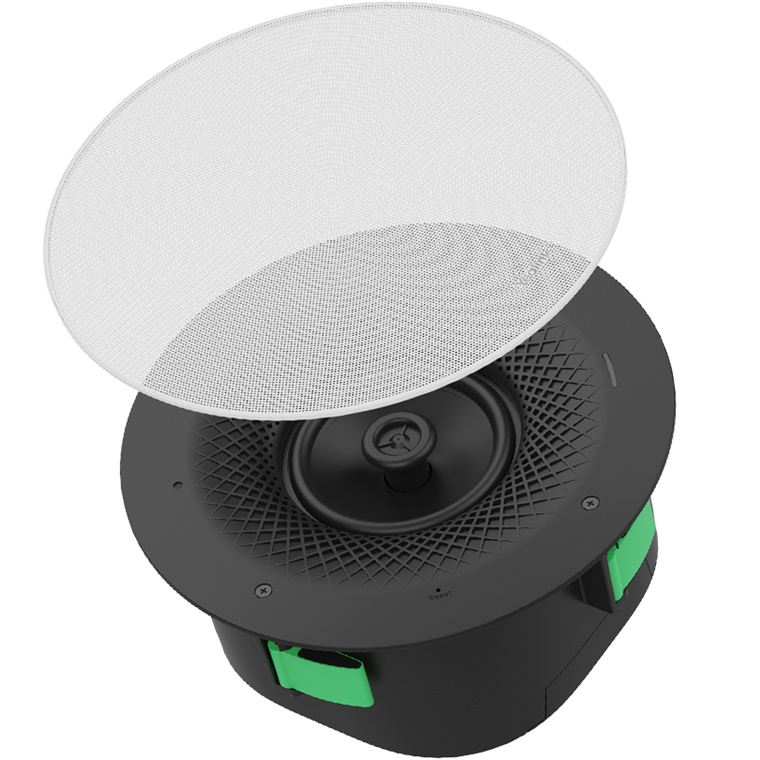

The Loudspeaker features a low-profile (120mm depth) 2-way coaxial design and a removable magnetic suction mesh cover. The CS10-D blends high-quality audio with an elegant, minimalist design, making it a perfect match for contemporary conference rooms.
Specially Designed for Conference Space
The CS10-D boasts impressive acoustic parameters, which ensures an unparalleled level of sonic excellence, while its EQ calibration is specifically tailored to accentuate the utmost quality of human vocals. It seamlessly combines active speaker functionality with an integrated DAC and PoE technology, allowing for swift digital signal processing from the network for a hassle-free setup and minimal latency.

Video Conferencing Perfected
CS10-D was tuned the sound profile for video conference first. It emphasized the mid-range of frequency response that improves sound performance in human voice.
Versatile Adaptability

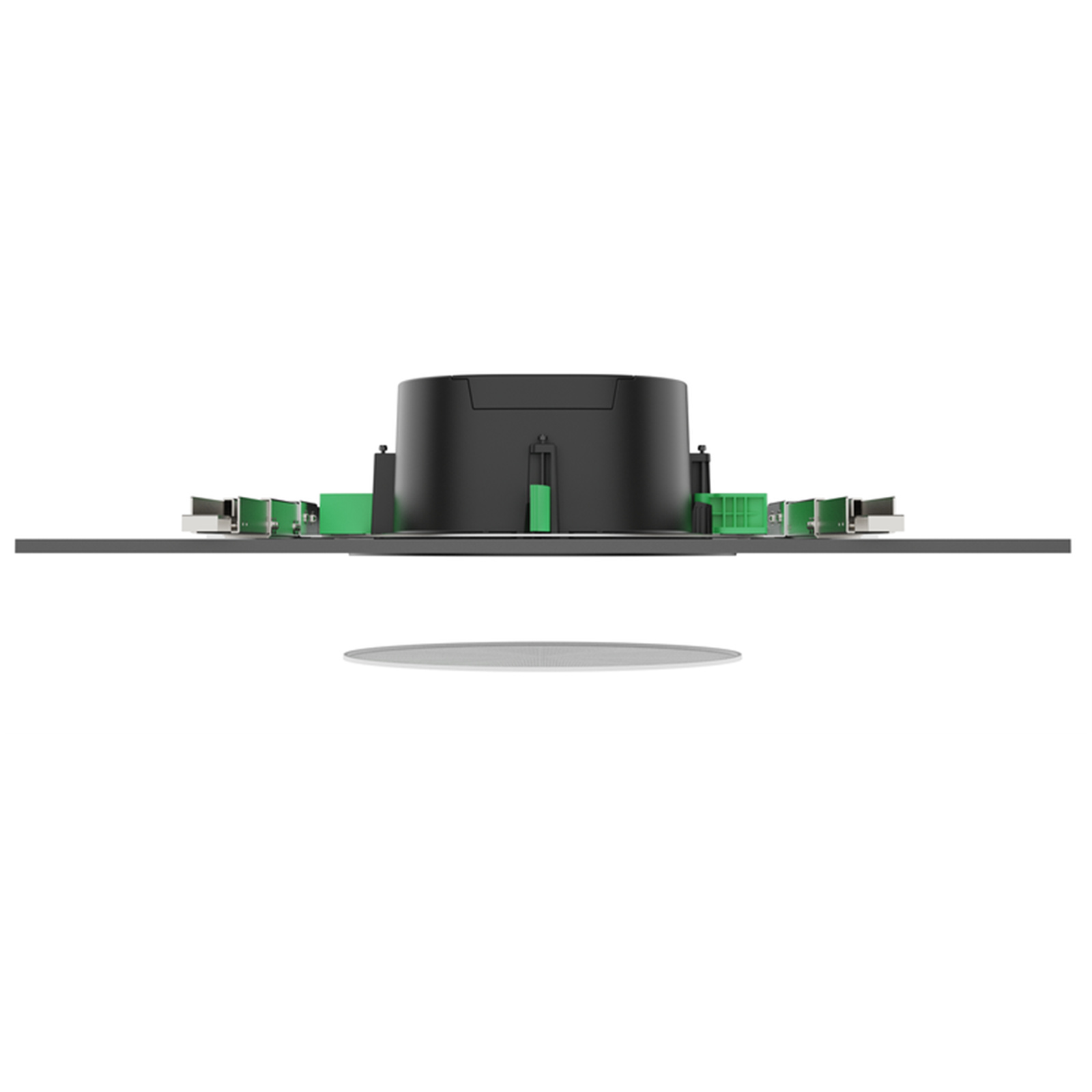

CS10-D provides flexible indoor installation solutions, ensuring compatibility with various ceiling types.
Deploy for Multiple Spaces
Large Room
Divisible Room
Medium Room
Specifications
General
Materials
Cover Mesh: PC/ABS Welded SPCC
Main Body Shell: PA (Polyamide) with 15% GF
Bottom Shell: aluminum alloy
Cover Plate: PC/ABS and SGCC
Interface
1 x RJ-45
Rated Power
24W (20W typical power)
Power Supply
PoE+ (IEEE 802.3at class 4)
Dimensions
294mm (diameter) × 125.8mm (H) (with cover mesh)
287.2mm (diameter) × 125mm (H) (without cover mesh)
Weight
2808g (without cover mesh); 207g (Cover mesh)
Audio Specifications
Frequency Response (-6dB)
100-20kHz
Maximum SPL
Continuous: 99dB @ 20W 1m
Sensitivity: 88dB @ 1m 1W
Speaker Specification
LF
5.7 inch (145 mm) woofer
HF
1.1 inch (28 mm) tweeter
Nominal Impedance
8ohm
Nominal Coverage Angle
120
Environmental Conditions
Operating Temperature
0-50?
Storage Temperature
0-50?
Operating Humidity
5%~90%
