Winmate R15IT3S-GCC3 15'' Standalone Panel PC HMI, i5, 8G, 256GB SSD,P-CAP, 300nits Win10 IoT, 2 x RJ45,1 x RS232/422/485,2 x USB3.0, 1 x HDMI(Optional), IP65,

PB Tech price
PB Tech price
NZD $ 2,807 .79
$ 2,807 .79

Out of stock

Winmate R15IT3S-GCC3 15'' Standalone Panel PC HMI, i5, 8G, 256GB SSD,P-CAP, 300nits Win10 IoT, 2 x RJ45,1 x RS232/422/485,2 x USB3.0, 1 x HDMI(Optional), IP65,

  • Brand: Winmate
  • MPN: R15IT3S-GCC3
  • Part #: WKAWMA15503
  • UPC:
PB Tech price
NZD $ 2,807 .79 $ 2,807 .79
Out of stock
Delivery: Out of stock
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
Add To Compare
Stock Alerts
Click or hover over image to enlarge
  • Brand: Winmate
  • MPN: R15IT3S-GCC3
  • Part #: WKAWMA15503
  • UPC:
Returns & Warranty Bulk Quote Print Page

Features


R15IT3S-GCC3

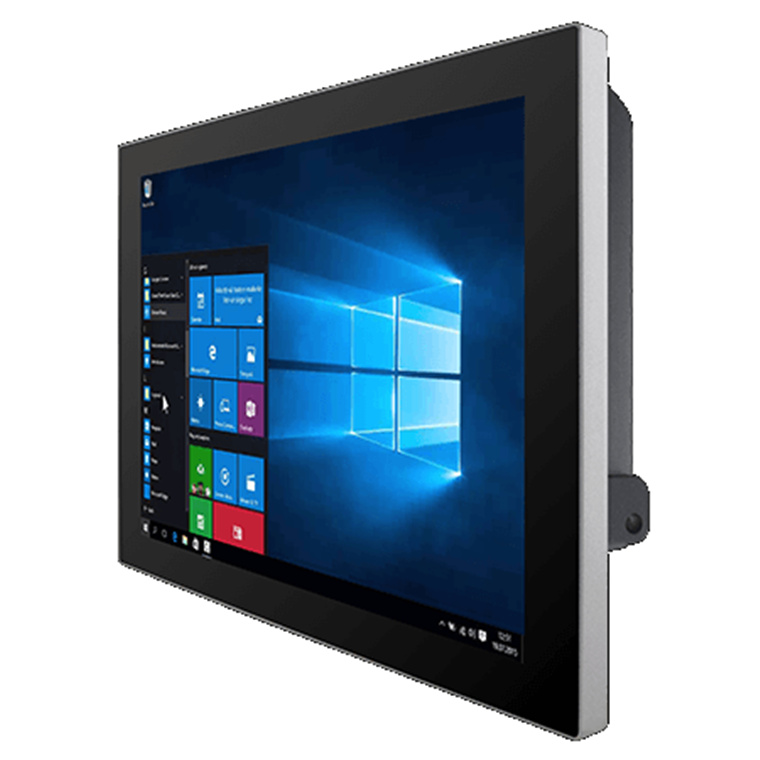

15" Intel® Core™ i5-1135G7 Standalone Panel PC HMI

KEY FEATURES


 - 15" 1024 x 768 with P-CAP touchscreen with 300 nits brightness

 - High computing performance with Intel® Core™ i5-1135G7 2.4 GHz (turbo to 4.2GHz) processor

 - Fanless cooling system and ultra-low power consumption

 - Front IP65 for protection against water and dust

 - A true flat, easy-to-clean front surface with edge-to-edge design

 - Plenty of I/O, including 2 x LAN, 1 x COM, 2 x USB 3.0, 1 x HDMI

Specifications

Display

Touch / Glass

Projected Capacitive Multi Touch Screen
Anti-glare Coating (Optional)

Size

15 inches

Resolution

1024x768

Panel Brightness

300 nits
1000 nits(Optional)

Contrast Ratio

2000:1

View Angles

88,88,88,88

Active Area

304.1x228.1 mm

System Specification

Processor

Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)
Intel Core i5-1145G7 2.6GHz (up to 4.4GHz) (Optional)

Memory

1 x SO-DIMM, DDR4 3200 MHz, 8GB
16GB (Optional)
32GB (Optional)

Storage

1 x M.2 M-Key 2242 SATA SSD or 1 x M.2 M-Key 2280 NVMe SSD 256GB
128GB (Optional)
512GB (Optional)
1TB(for NVMe) (Optional)
2TB(for NVMe) (Optional)
4TB(for NVMe) (Optional)
1 x SATA III , up to 2TB (Optional)

Ethernet controller

2 x Intel® Ethernet Controller

Security

TPM 2.0

Operating System

Windows 11 IoT Enterprise SAC (64 bit) (Optional)
Windows 10 IoT Enterprise (64 bit) (Optional)
Linux Ubuntu 22.04 (Optional)

Environment

Operating Humidity

10% to 90% (Non-Condensing)

Operating Temperature

0~50°C

Storage Temperature

-20°C~60°C

Shock

MIL-STD-810G Method 516.6

Vibration

MIL-STD-810G Method 514.6

IP rating

Front IP65

Certification

Certification

CE, FCC

IO Ports

USB Port

2 x USB 3.0

Serial Port

1 x RS232/422/485 (Default RS232)
1 x RS232 (Optional)

LAN

2 x RJ45

Video

1 x HDMI (Optional)

Audio

2 x Speaker

Mechanical

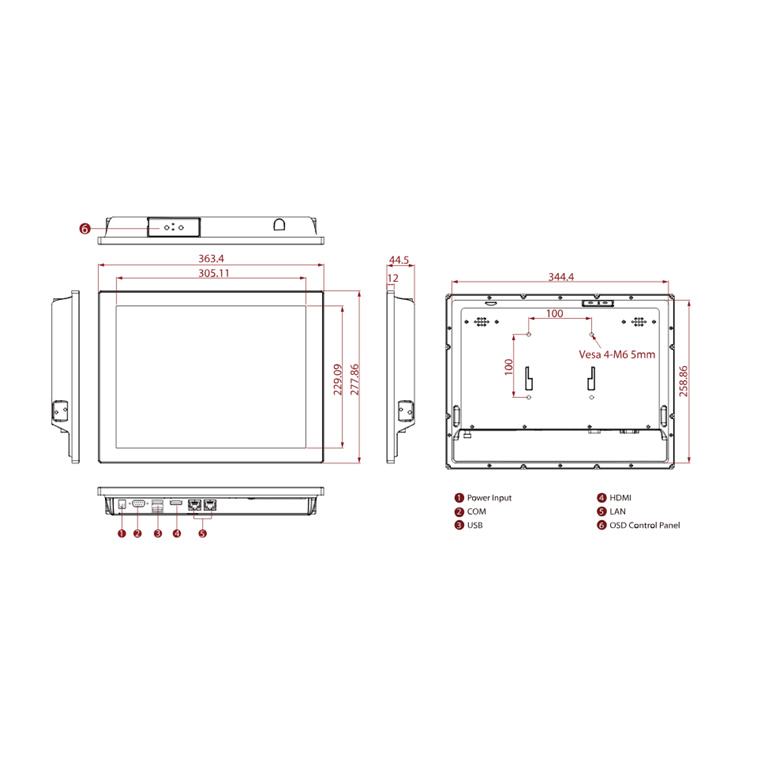

Dimension

363.4 x 277.9 x 45.2 mm

Mounting

VESA Mount/ Panel Mount

Enclosure

Aluminum

Cooling System

Fanless Design

Accessory

Accessory

Quick Start Guide(Hardcopy)
Driver CD & User Manual
AC Adapter
Power Cable

Power

Power Rating

12V DC input
9~36V DC input (Optional)

Control

Button

1 x Power Button
1 x Reset Button

Manufacturer Part No:
R15IT3S-GCC3
Brand:
Winmate
Product Type:
15'' Standalone Panel PC HMI,
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
WKAWMA15503
Product Model:
R15IT3S-GCC3
Warranty: 12 months *
