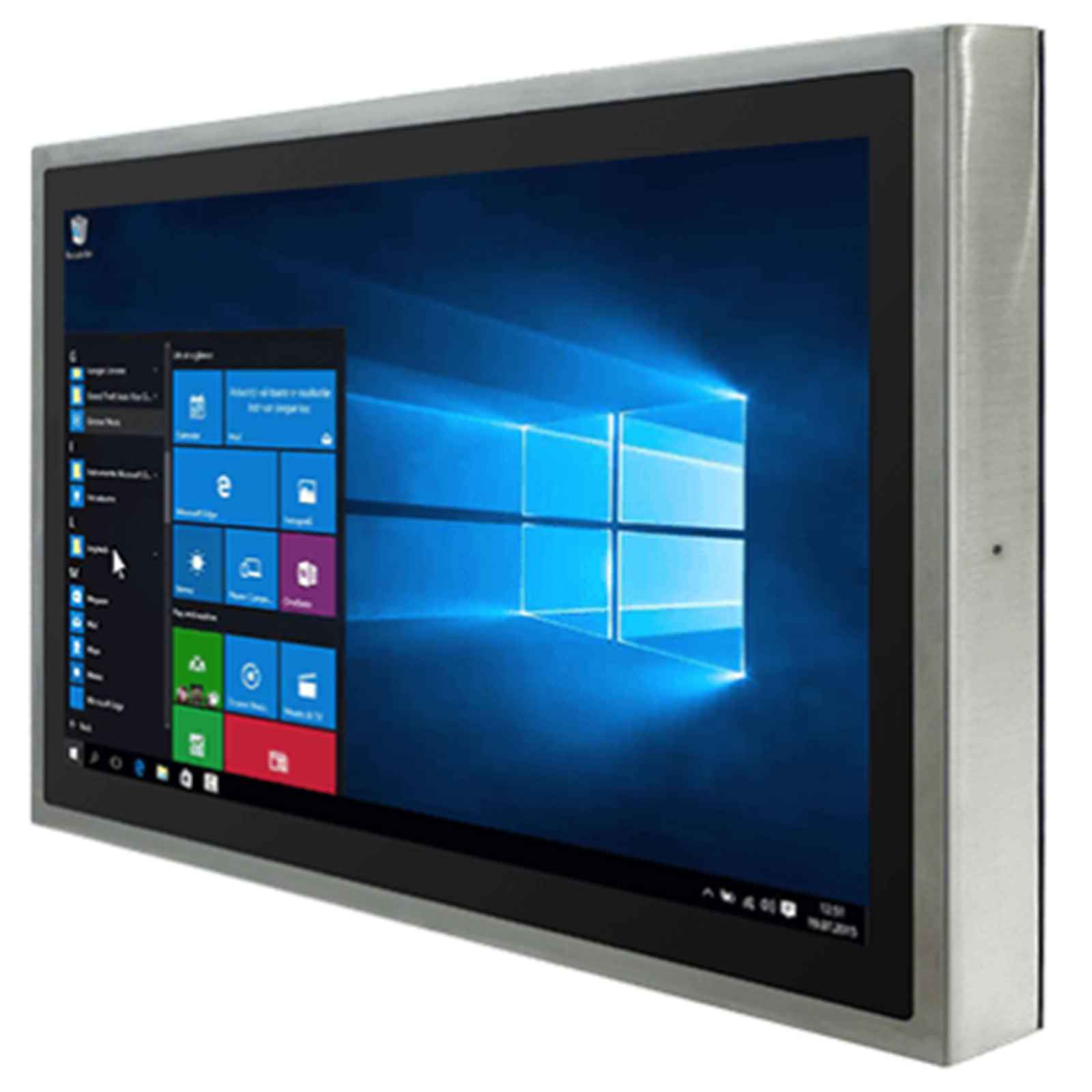

Winmate W22IH3S-SPA369 Panel PC, IP69 21.5" PcapTouchscreen, i5,4G, 64GB, 2XUSB, 1xGbit LAN,1xRS-232, 12v DC-in
- Brand: Winmate
- MPN: 98C021A0004U
- Part #: WKAWMA22101

Product URL: https://www.pbtech.com/pacific/product/WKAWMA22101/Winmate-W22IH3S-SPA369-Panel-PC-IP69-215-PcapTouch
Features
Waterproof All-Around
The Panel PC fully complies with IP69K water and dust resistance to survive splashing conditions during stringent cleanup processes and strict hygiene demands in the Food, Beverage, and Pharmaceutical industries.
Comprehensive Stainless Solution
The wide range of stainless human-machine interfaces (HMI) and Panel PCs are widely used for automation processes in Food & Beverage applications and chemical factories.
Projected Capacitive Multi-Touch (P-CAP)
The highly-sensitive touch screen and PCAP multi-touch support make it easy for users to key in data, rotate images, drag and drop files, and zoom in with two or more fingers.
- 21.5", 1920 x 1080 P-cap touch with flat design
- 8th Generation (Whiskey Lake) Intel® Core™ i5-8265U 1.6GHz (turbo to 3.9GHz)
- SUS 316/ AISI 316 stainless steel for food and chemical industries
- Full IP69K waterproof enclosure
- A true flat, easy-to-clean front surface with edge-to-edge design
- Plentyof I/Os, including USB 2.0, RS232 and RJ45-10/100/1000 LAN
- Waterproof ports with adapter cables for external connectivity
- Support VESA/ YOKE mount
- Support Glove/ Rain mode
- Optical bonding (optional)
Specifications
Display
Size
21.5 inches
Touch / Glass
Projected Capacitive Multi Touch Screen
Resolution
1920x1080
Panel Brightness
250 nits
Contrast Ratio
3000:1
View Angles
89,89,89,89
Active Area
476.64x268.11 mm
System Specification
Processor
Intel® Core™ i5 -8265U (6M Cache, 1.6GHz up to 3.9 GHz)
Memory
1 x SO-DIMM, DDR4 2400 MHz, 4GB
Storage
1 x M.2 2242 B-key SSD 64GB
Ethernet controller
Intel® Ethernet Controller I210-AT +
Intel® Ethernet Connection I219-LM
Security
TPM 2.0
Operating System
Windows 10 IoT Enterprise (Optional)
Linux Ubuntu 18.04 (Optional)
Linux Ubuntu 20.04 (Optional)
WLAN
Support (Optional)
BT
Support (Optional)
Mechanical
Dimension
541 x 337 x 56.2 mm
Mounting
VESA Mount
Yoke Mount
Enclosure
Stainless Housing
Cooling System
Fanless design
Environment
Operating Humidity
10% to 90% (non-condensing)
Operating Temperature
0~45°C
Storage Temperature
-20~60°C
IP rating
IP69K
Certification
Certification
CE, FCC
IO Ports
USB Port
1x M12 waterproof connector for 2 x USB2.0
Serial Port
1 x M12 waterproof connector for RS232
LAN
1 x waterproof Giga LAN RJ45 connector
Indicator
1 x LED Indicator for power
1 x LED Indicator for storage
Power Input
1 x M12 waterproof connector for 12V DC
Control
Button
1 x Power Button
1 x Reset Button
Power
Power Rating
12V DC (M12 type)
