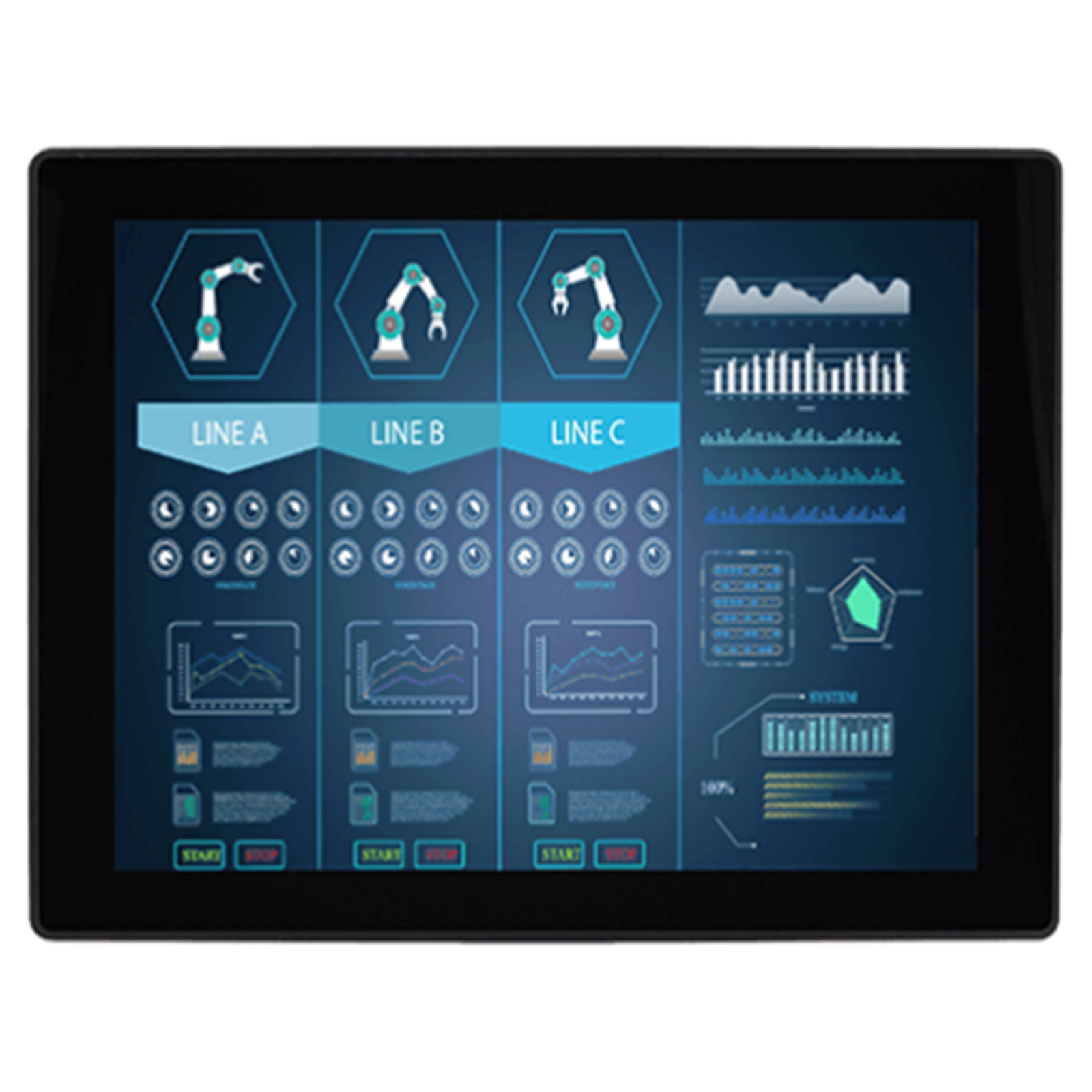

Winmate Industrial PoE Touch Display R12L100-PCM2-POE 12.1" PoE Chassis Display 1024x768, PCAP, 500 nits, Supports PoE, Front IP65, VGA and HDMI input
- Brand: Winmate
- MPN: R12L100-PCM2-POE
- Part #: WKAWMAR12L1003

Product URL: https://www.pbtech.com/pacific/product/WKAWMAR12L1003/Winmate-Industrial-PoE-Touch-Display-R12L100-PCM2
Features
- 12.1" 1024 x 768 Resolution
- Projected Capacitive Multi-Touch (P-Cap)
- VGA input and HDMI input
- USB port for touch
- Stylish and elegant design
- Supports PoE
- Front IP65
Specifications
Display
Size
12.1 inches
Touch / Glass
Projected Capacitive Multi Touch Screen
Protection Glass (Optional)
Resolution
1024x768
Panel Brightness
500 nits
Contrast Ratio
700:1
View Angles
89,89,89,89
Display Color
16.2M Colors
Environment
Operating Humidity
10% to 90% (non-condensing)
Operating Temperature
0~50°C
Storage Temperature
-10~60°C
Certification
Certification
CE, FCC
IO Ports
USB Port
1 x USB for Touch Screen
LAN
1 x PoE for Power Input
Video
1 x VGA
1 x HDMI (Optional)
Audio
2 x Speaker(Optional)
Mechanical
Dimension
296.2 x 226.7 x 45.5 mm
Mounting
VESA Mount/ Panel Mount
Enclosure
Metal
Cooling System
Fanless Design
Accessory
Accessory
1 x USB Cable for Touch
1 x VGA Cable
1 x HDMI Cable
Power
POE
Power Device (PD) follows
IEEE 802.3at (25 W), IEEE 802.3af (15 W)
Control
Button
5 Keys: - , + , Power , Esc , Enter
