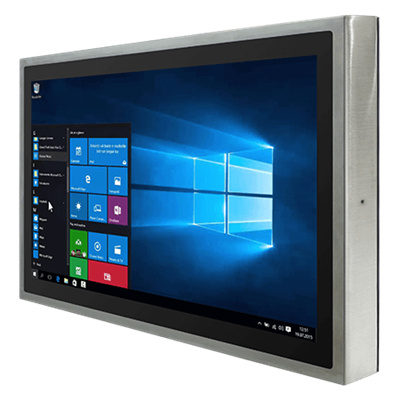

Winmate Panel PC W24IT3S-SPA269 32G, 256GB, Win 11 pro 23.8" Intel Core i5 IP69K, PCAP, Stainless Chassis, With Optical Bonding, wide temp, 3 years warranty.
Winmate Panel PC W24IT3S-SPA269 32G, 256GB, Win 11 pro 23.8" Intel Core i5 IP69K, PCAP, Stainless Chassis, With Optical Bonding, wide temp, 3 years warranty.
- Brand: Winmate
- MPN: W24IT3S-SPA269
- Part #: WKAWMAW24002
- UPC:
- Brand: Winmate
- MPN: W24IT3S-SPA269
- Part #: WKAWMAW24002
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial PCs & IoT





Winmate Panel PC W24IT3S-SPA269 32G, 256GB, Win 11 pro 23.8" Intel Core i5 IP69K, PCAP, Stainless Chassis, With Optical Bonding, wide temp, 3 years warranty.
- Brand: Winmate
- MPN: W24IT3S-SPA269
- Part #: WKAWMAW24002

Product URL: https://www.pbtech.com/pacific/product/WKAWMAW24002/Winmate-Panel-PC-W24IT3S-SPA269-32G-256GB-Win-11-p
Features
KEY FEATURES
- 23.8", 1920 x 1080 P-cap touch with flat design
- 11th Generation Intel® Core™ i5-1135G7 2.4GHz (up to 4.2GHz)
- SUS 316/ AISI 316 stainless steel for food and chemical industries
- Full IP69K waterproof enclosure
- A true flat, easy-to-clean front surface with edge-to-edge design
- Plenty of I/Os, including USB 2.0, RS232 and RJ45-10/100/1000 LAN
- Waterproof ports with adapter cables for external connectivity
- Support VESA/ YOKE mount
- Support Glove/ Rain mode
- Optical bonding
Waterproof All-Around
The Panel PC fully complies with IP69K water and dust resistance to survive splashing conditions during stringent cleanup processes and strict hygiene demands in the Food, Beverage, and Pharmaceutical industries.
Comprehensive Stainless Solution
The wide range of stainless human-machine interfaces (HMI) and Panel PCs are widely used for automation processes in Food & Beverage applications and chemical factories.
Projected Capacitive Multi-Touch (P-CAP)
The highly-sensitive touch screen and PCAP multi-touch support make it easy for users to key in data, rotate images, drag and drop files, and zoom in with two or more fingers.
Specifications
Display
Size
23.8 inches
Touch / Glass
Projected Capacitive Multi Touch Screen
Resolution
1920x1080
Panel Brightness
250.0 nits
Contrast Ratio
3000:1
View Angles
89,89,89,89
Active Area
527.04x296.46 mm
System Specification
Processor
Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)
Memory
1 x SO-DIMM, DDR4 3200 MHz, 32GB
Storage
1 x M.2 2280 M-Key NVMe SSD 256GB (Optional)
Ethernet controller
2 x Intel® Ethernet Controller
Security
TPM 2.0
Operating System
Windows 11 Pro 64 bit (Optional)
WLAN
Support (Optional)
BT
Support (Optional)
Mechanical
Dimension
620 x 390 x 56 mm
Weight
12Kg
Mounting
VESA Mount
Yoke Mount
Enclosure
Stainless Housing
Cooling System
Fanless design
Environment
Operating Humidity
10% to 90% RH, Non-Condensing
Operating Temperature
0°C to 45°C
Storage Temperature
-20°C to 60°C
IP rating
IP69K
Certification
Certification
CE, FCC
IO Ports
USB Port
1x M12 waterproof connector for 2 x USB2.0
Serial Port
1 x M12 waterproof connector for RS232
LAN
1 x waterproof Giga LAN RJ45 connector
Indicator
1 x LED Indicator for power
1 x LED Indicator for storage
Power Input
1 x M12 waterproof connector for 12V DC
Control
Button
1 x Power Button
1 x Reset Button
Accessory
Accessory
100~240V AC to DC Adapter with waterproof connector
Power Cord
External USB cable with waterproof connector
External COM cable with waterproof connector
External LAN cable with waterproof connector
Waterproof caps
VESA screws
Power
Power Rating
12V DC (M12 type)
