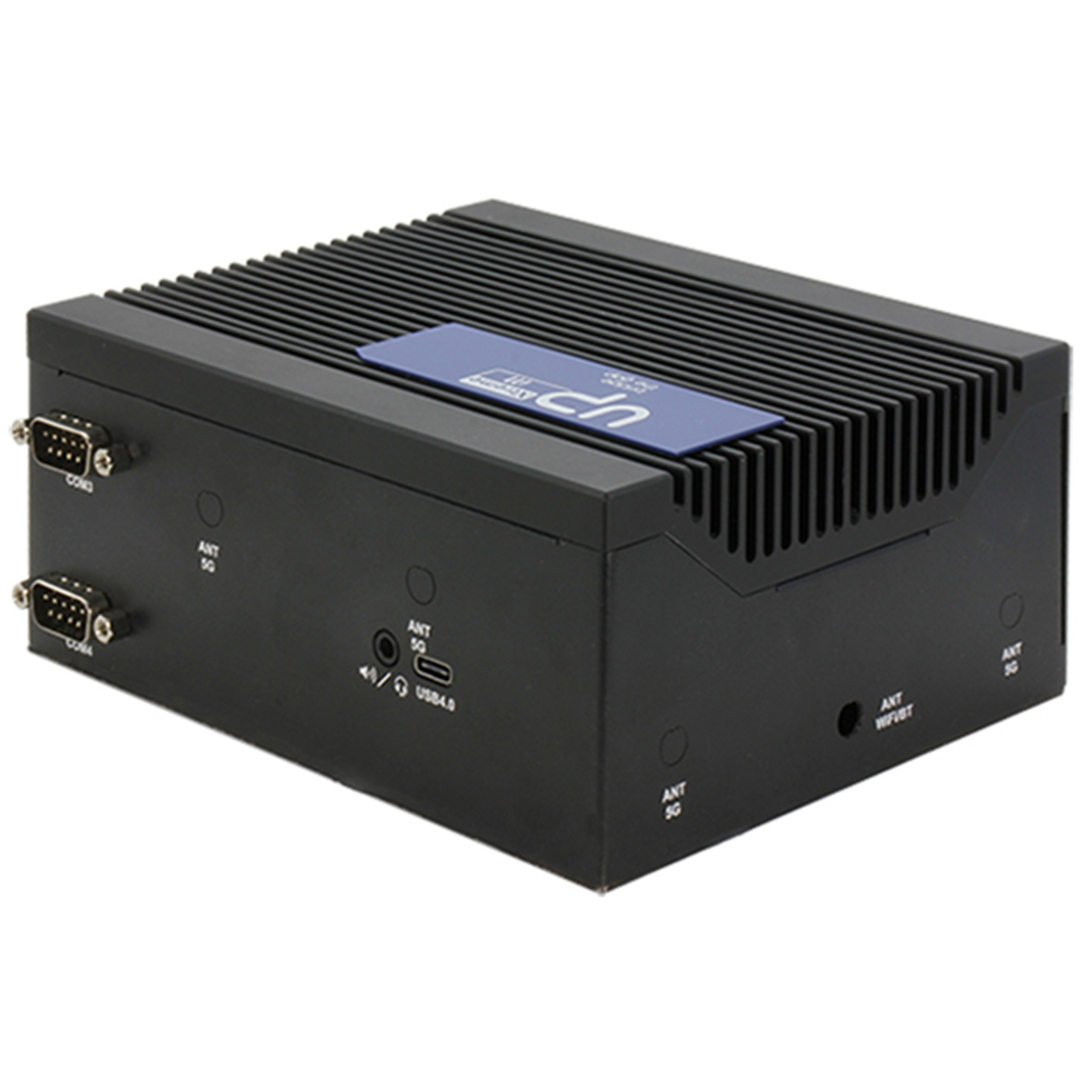

AAEON UPX-EDGE i11 System UPX-EDGE i11. Core i5-1145GRE 16GB RAM 128GB 2.5" SSD w/ Ubuntu FDKt image

Brand: AAEON
MPN: UPX-EDGE-TGLI5-A10-16128-FDAI
Part #: WKSAAEI11008
UPC:

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: AAEON
MPN: UPX-EDGE-TGLI5-A10-16128-FDAI
Part #: WKSAAEI11008
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

The UP Xtreme i11 Edge packages the powerful and innovative UP Xtreme i11 board in a system platform that's designed to easily deploy AI Edge applications anywhere they're needed. Powered by the 11th Generation Intel® Core™ processors (formerly Tiger Lake UP3), the UP Xtreme i11 delivers up to 20% greater performance over the previous generation along with up to 64GB of DDR4 SO-DIMM memory. The UP Xtreme i11 Edge is now available in both fan and fanless designs, expanding its application potential. The UP Xtreme i11 is built for AI, leveraging the embedded Intel® Iris® Xe graphics with an AI enhanced engine to allow implementation of various inferences, compatible with the Intel® distribution of OpenVINO™ toolkit.

Both the original and fanless versions of the UP Xtreme i11 Edge are built to provide flexible deployment for any project, delivering sophisticated AI solutions in a versatile package. The system itself is smaller than the previous generation, making it easier to install in tight spaces. The UP Xtreme i11 Edge features several M.2 expansion slots, designed to support Wi-Fi 6 communication, AI accelerator modules, and 5G cellular cards. Additionally, the system is available as an Intel® Foundation Kit, the UP Xtreme i11 Edge Compute Enabling Kit, which contains everything you need to deploy out of the box, including Ubuntu Certification with the Ubuntu OS pre-installed, saving time and money for setup.

- 11th generation Intel® Core™ i7/i5/i3/Celeron® Processor SoC (formerly Tiger Lake UP3)
- DDR4 SO-DIMM Slot x 2 (up to 64GB)
- 16pin GPIO connector x 1
- SATA storage
- Support 5G via M.2 3052
- Support AI Accelerator via M.2 2280
- Support WiFi 6
- Support USB 4.0
- Support LAN up to 2.5Gbps
- Fanless/Fan design available

Specifications

SYSTEM

CPU

11th Gen Intel® Core™ Processor SoC
Core i7-1185G7E
Core i7-1185GRE
Core i5-1145G7E
Core i5-1145GRE
Core i3-1115GRE
Celeron® 6305E

MEMORY

DDR4 SO-DIMM Slot x 2 (up to 64GB 3200Mhz)

GRAPHICS

Intel® Iris® Xe graphics

STORAGE

SATA CONN x 1 with POWER CONN (2.5" SSD)
M.2 2280 M Key NVMe(PCIe [x2])

ETHERNET

Intel® i225IT x 1, Intel® i219 (vPRO) x 1

WIFI/BT

Optional

EXPANSION SLOT

M.2 2230 E-Key x 1
M.2 2280 M-Key x 1
M.2 3052 B-Key x 1 with Micro-SIM
SATA3.0 with power connector x 1 (2.5" SSD)
PCIe x 4 slot (Optional)

SECURITY

OS SUPPORT

Windows 10 /IOT, Yocto 3.1, Ubuntu 20.04.02

I/O PLACEMENTS

USB

USB3.2 Gen2 x 3
USB2.0 x 1 (Type A)
USB4.0 via USB type C

DISPLAYPORT

HDM 2.0 x 1 /DP 1.4 x 1
eDP x 1, 4K at 60hz panel

ETHERNET

Intel® i225IT x 1, Intel® i219 (vPRO) x 1

COM

RS232/422/485 x 2

AUDIO

Realtek ALC888s x 1 (Mic /Line out)

GPIO

POWER SUPPLY

POWER REQUIREMENT

POWER SUPPLY TYPE

POWER CONSUMPTION (TYPICAL)

MECHANICAL

MOUNTING

DIMENSIONS (W X H X D)

NET WEIGHT

GROSS WEIGHT

GW: 2.3kg

ENVIRONMENT

OPERATING TEMPERATURE

32°F ~ 140°F (0°C ~ 60°C)
Fanless Sku memory and Storage requirement:
DRAM Module : 0°C ~ 85°C
2.5" SSD: -45°C ~ 85°C

OPERATING HUMIDITY

0% ~ 90% relative humidity, non-condensing

STORAGE TEMPERATURE

MTBF

CERTIFICATION

CE,FCC Class A

Manufacturer Part No:

UPX-EDGE-TGLI5-A10-16128-FDAI

Brand:

AAEON

Product Type:

UPC

Product Family:

UPX-EDGE i11 System

Shipping Weight:

1 kg

PB Part No:

WKSAAEI11008

Product Model:

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
