AAEON UP Squared System UPS-GWS01P4.CPU N4200(F1).8GB memory.64 GB eMMC.Rev.A1.0.w/ VESA

Brand: AAEON
MPN: UPS-GWS01P4F-A20-1864 (F1)
Part #: WKSAAESQ0009
UPC:

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: AAEON
MPN: UPS-GWS01P4F-A20-1864 (F1)
Part #: WKSAAESQ0009
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

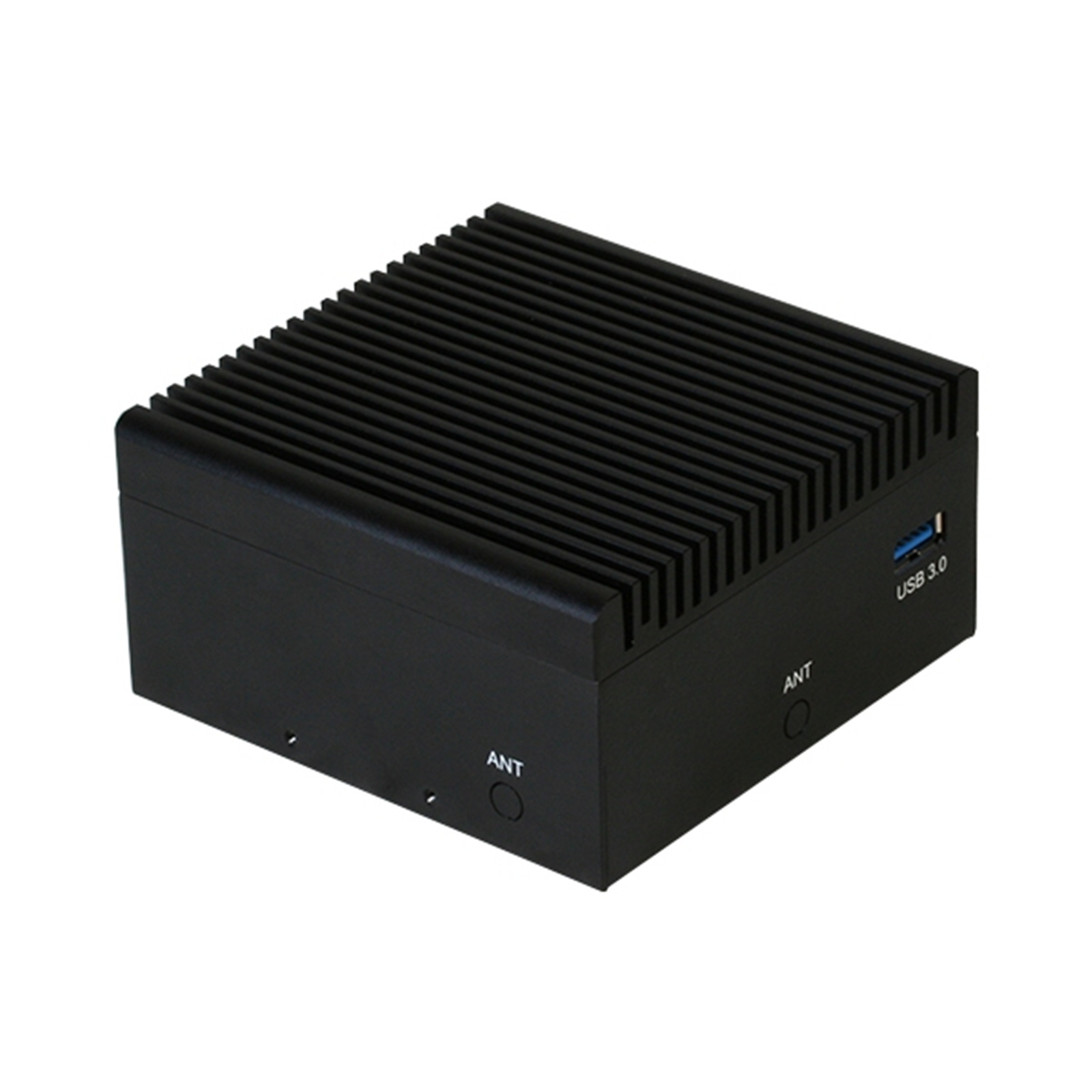

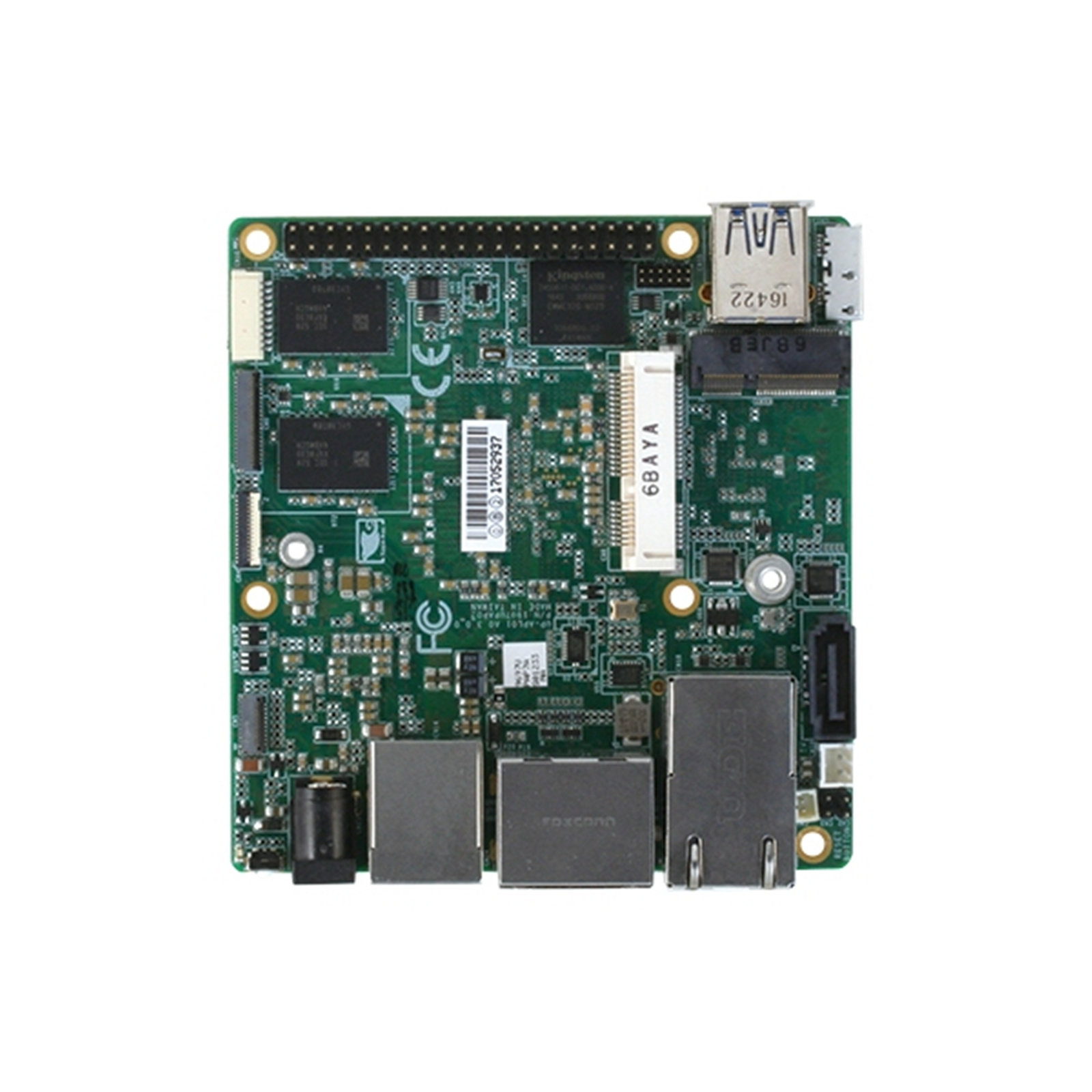

The UP Squared system is a complete system package featuring the powerful and fast UP Squared maker board. Designed for easy deployment in embedded applications from industrial automation to IIoT and AIoT, the UP Squared system brings high-performance in a low-power compact solution.

UP Squared is powered by Intel® Apollo Lake processors, delivering high performance at minimum power consumption. Its small size also makes it perfect for use in mobile applications including drone operations. UP Squared offers flexible OS support including Windows 10, Linux and Android.

UP Squared supports the AI Core X mPCIe module, which features Intel Movidius Myriad X. With speeds up to 105 fps (80 typical) and 1 trillion floating point operations, adding on the AI Core X to UP Squared creates a powerful, compact AI Edge solution. UP Squared with AI Core X has proven real-world performance, used by AAEON partners in applications from license plate recognition to drone-based visual inspections.

If you require a total AI solution, AAEON offers the "UP Squared AI Developer Kit". This kit includes the UP Squared system with the AI Core X and an Ever Focus® USB camera. The "UP Squared AI Developer Kit" comes preloaded with Windows™ 10 and the Intel® OpenVINO™ toolkit. Be sure to inquire about the kit when speaking to your sales representative.

- Intel® Pentium® N4200/ Celeron® N3350 Processor SoC/Atom® E3950
- Onboard LPDDR4 Memory, eMMC Storage
- Gigabit LAN x 2
- HDMI x 1, DP x 1
- USB 3.0 x 3, USB 3.0 OTG x 1
- 3G/ WiFi/ BT(Optional)

Specifications

SYSTEM

CPU

Intel® Pentium® N4200/ Celeron® N3350 Processor SoC/ Atom® E3950

MEMORY

Onboard Single/ Dual Channel LPDDR4 memory, Max. 8GB

GRAPHICS

Intel® Graphics, GEN 9

STORAGE

eMMC ver 5.0 x 1, Max. 128G
Optional:
Full-sized Mini-PCIe x 1
SATA3 x 1

ETHERNET

Realtek® 8111G x 2

WIFI/BT

Optional: M.2 2230 x 1

EXPANSION SLOT

Full-sized Mini-PCIe x 1 (PCIe & SATA + USB2.0)
M.2 2230 x 1

SECURITY

OS SUPPORT

Windows® 10, Linux, Android 7.0, Windows® 10 IoT core

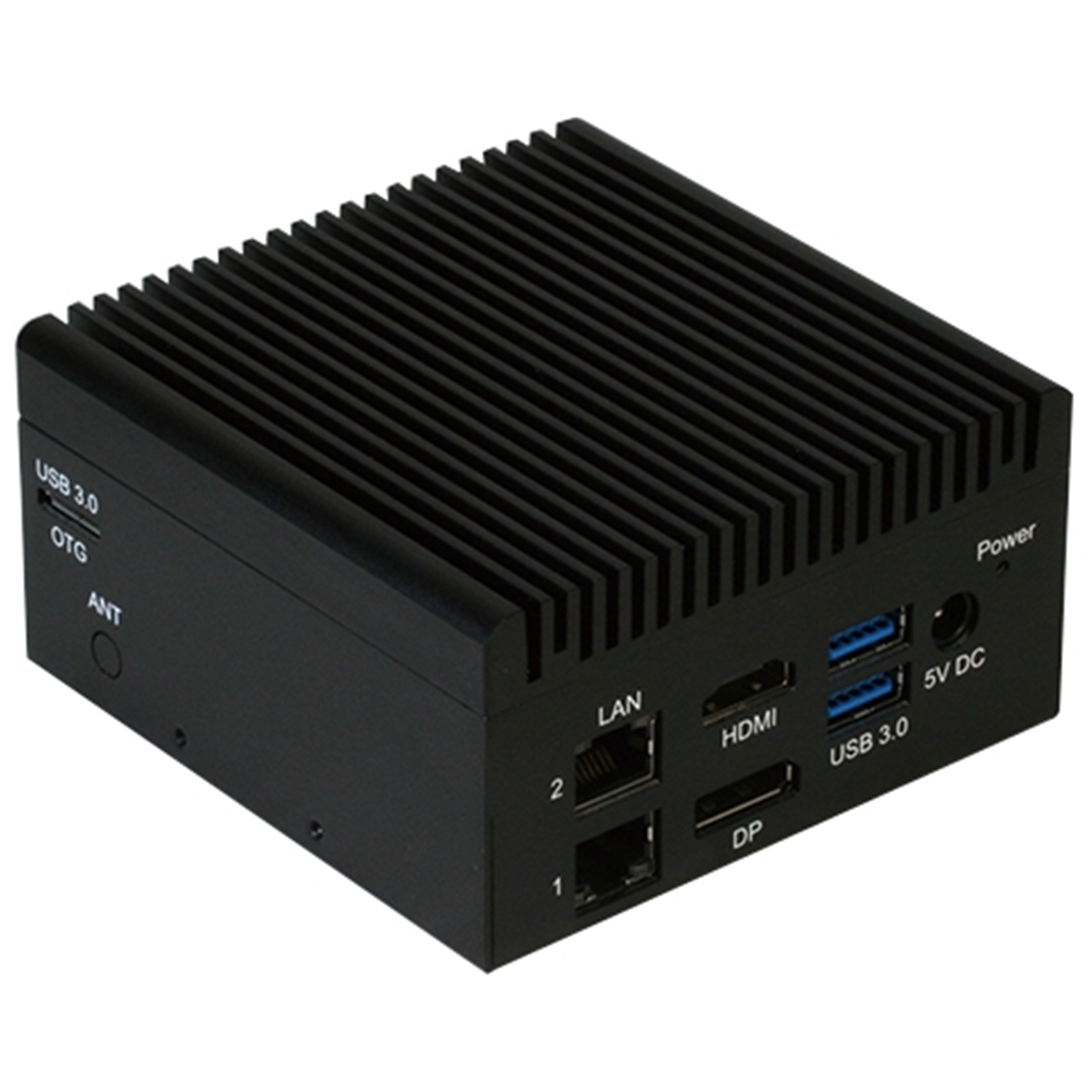

I/O PLACEMENTS

USB

USB3.0 x 2, USB3.0 OTG x 1/ USB3.0 x 1

DISPLAYPORT

HDMI x 1, DP x 1

ETHERNET

Realtek® 8111G x 2

COM

AUDIO

HDMI x 1, DP x 1

GPIO

MECHANICAL

MOUNTING

DIMENSIONS (W X H X D)

3.74" x 3.58" x 1.46" (95mm x 91mm x 37mm)

NET WEIGHT

GROSS WEIGHT

ENVIRONMENT

OPERATING TEMPERATURE

32°F ~ 113°F (0°C ~ 45°C)

OPERATING HUMIDITY

0% ~ 90% relative humidity non-condensing

STORAGE TEMPERATURE

MTBF

CERTIFICATION

CE, FCC Class A, UL

Manufacturer Part No:

UPS-GWS01P4F-A20-1864 (F1)

Brand:

AAEON

Product Type:

UPC

Product Family:

UP Squared System

Shipping Weight:

1 kg

PB Part No:

WKSAAESQ0009

Product Model:

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
