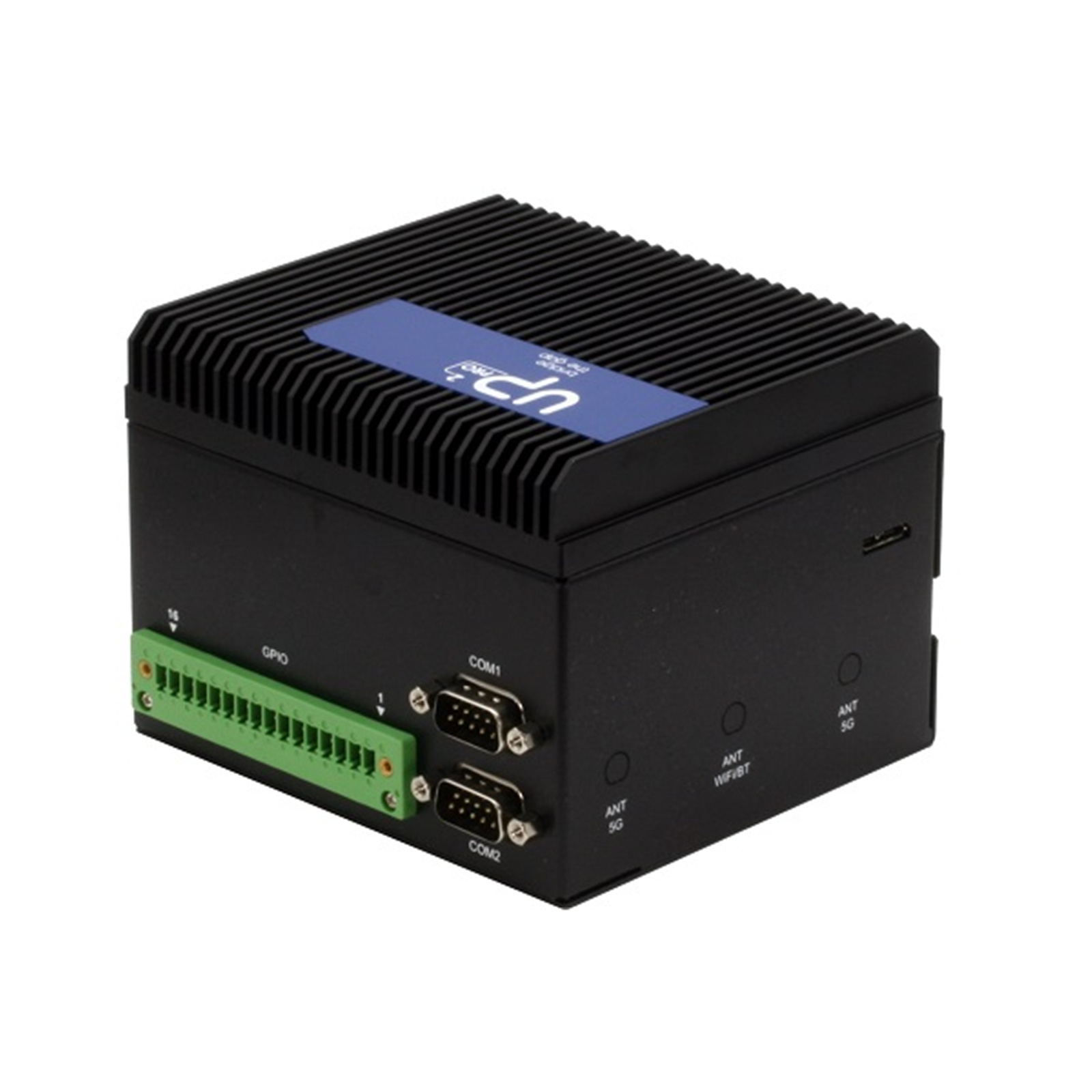

AAEON UPSquared PRO System UPN-EDGE PRO.CPU N4200(F1).Memory 8GB.eMMC 64GB.REV.A1.0

AAEON UPSquared PRO System UPN-EDGE PRO.CPU N4200(F1).Memory 8GB.eMMC 64GB.REV.A1.0

  • Brand: AAEON
  • MPN: UPN-EDGE-APLP4F-A10-0864
  • Part #: WKSAAESQP004
  • UPC:
  • Brand: AAEON
  • MPN: UPN-EDGE-APLP4F-A10-0864
  • Part #: WKSAAESQP004
  • UPC:

Features

UP Squared Pro EDGE System with Intel® Pentium® N4200/ Celeron® N3350/ Atom™ E3950 Processor SoC

- Intel® Pentium® N4200/ Celeron® N3350/ Atom™ E3950 Processor SoC
- Onboard LPDDR4 Memory up to 8GB
- Onboard eMMC Storage up to 64GB
- Gigabit LAN x 2, USB 3.2 Gen 1 (Type A) x 3
- 12-24 VDC-in, 5A
- 16pin GPIO connector for 40 pin HAT
- Audio Jack x 1 (line out + Mic)
- SATA3 x 1

Specifications

SYSTEM

CPU

Intel® Apollo Lake N4200/N3350/E3950 Processor SoC

MEMORY

onboard DDR4, Max 8GB
Single Channel:2GB
Dual Channel:4GB,8GB

GRAPHICS

Intel® Graphic ,Gen 9

STORAGE

Emmc 32G/64G

ETHERNET

Intel i210 x2

WIFI/BT

Optional

EXPANSION SLOT

40 pin GPIO x 1
M.2 2230 E-key x 1
M.2 2280 M-key x 1
M.2 3052/3042 B-key x 1 (support with SIM)
SATA3 connector x 1 (support 2.5" HDD/SSD expansion)

SECURITY

-

OS SUPPORT

Microsoft Windows 10 (full), Windows IOT Core
Linux: Ubuntu 18.04.5 & Ubuntu 20.04.1
Yocto 3.1

I/O PLACEMENTS

USB

USB3.2 Gen1 OTG x 1
USB3.2 Gen1 (Type A) x 3

DISPLAYPORT

HDMIx1, DP x1

ETHERNET

Gb Ethernet (full speed) RJ-45 x 2 ( Intel i210)

COM

RS422/RS232/RS485 x 2

AUDIO

Line out+mic in x1

GPIO

-

POWER SUPPLY

POWER REQUIREMENT

12-24VDC

POWER SUPPLY TYPE

-

POWER CONSUMPTION (TYPICAL)

-

MECHANICAL

MOUNTING

-

DIMENSIONS (W X H X D)

4.61" x4.19" x3.5" (117mm x 106.5mm x 88.8mm)

NET WEIGHT

-

GROSS WEIGHT

2.17 lb (982.5g)

ENVIRONMENT

OPERATING TEMPERATURE

32°F ~ 140°F (0°C ~ 55°C) with air flow 0.5m/s

OPERATING HUMIDITY

0% ~ 90% relative humidity, non-condensing

STORAGE TEMPERATURE

-

MTBF

-

CERTIFICATION

CE/FCC Class A, RoHS Compliant , REACH

Manufacturer Part No:
UPN-EDGE-APLP4F-A10-0864
Brand:
Product Type:
-
UPC
-
Product Family:
UPSquared PRO System
Shipping Weight:
1 kg
PB Part No:
WKSAAESQP004
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
