AAEON UP Xtreme System UPX-EDGE. i7-8665UE.16GB RAM.64GB eMMC. A1.0
- Brand: AAEON
- MPN: UPX-EDGEI7-A10-1664-F01
- Part #: WKSAAEXTR001

Product URL: https://www.pbtech.com/pacific/product/WKSAAEXTR001/AAEON-UP-Xtreme-System-UPX-EDGE-i7-8665UE16GB-RAM6
Features

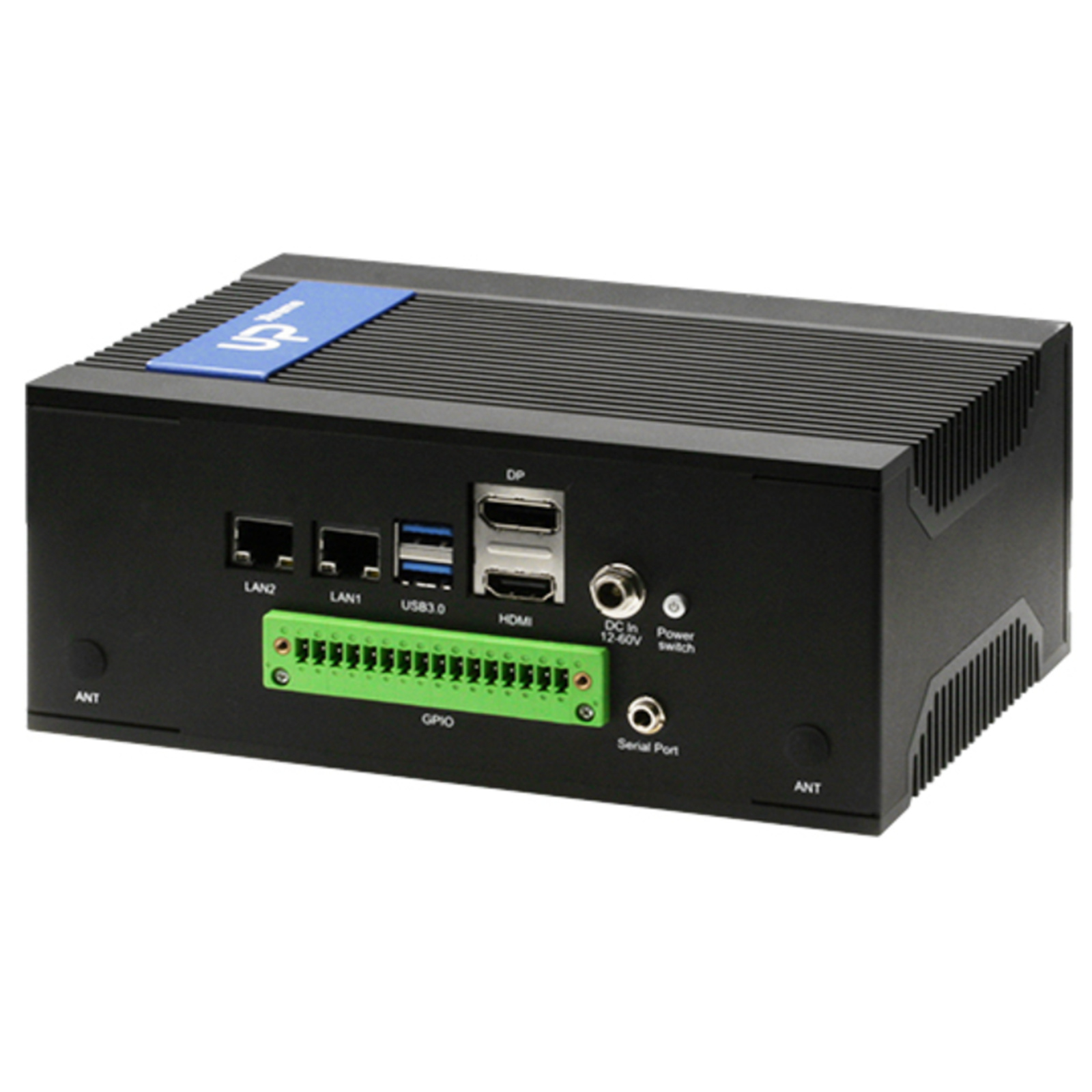

The UP Xtreme Edge Computing System, or UPX-Edge for short, is a complete embedded system that's ready to go out of the box. Built on the UP Xtreme board, UPX-Edge is powered by 8th Generation Intel® Core™ and Celeron® processors (formerly Whiskey Lake) with up to 16GB of onboard RAM and 64GB of eMMC memory to power through any application. With the latest Intel® graphics solution, the UPX-Edge is capable of 4K video output, and features a built-in audio jack as standard.
The UPX-Edge is designed with key industrial I/O features for flexibility and easy integration with existing infrastructure. I/O ports include two external GPIO connections, two COM ports, and four USB 3.2 Gen 1 ports. The UPX-Edge can also hold up to extreme conditions, with an operating temperature range of -20°C to 70°C (tested with AI Core XM 2280, 2x Intel® Movidius™ Myriad™ X).
UPX-Edge makes deploying a powerful edge system easy, whether it's as a factory IoT gateway, AI powered machine controller, or in a smart retail application.
- Intel® WHL-U Core™ i7/i5/i3/Celeron Processor SoC
- Onboard DDR4 memory, Max 16GB
- eMMC 64GB
- HDMI 2.0 x 1 (Support 4K at 60 Hz)
- COM ports (RS-232/422/485) x 2
- 16pin GPIO connectors (1x GPIO for SMT32, 1x GPIO for 40pin HAT)
- Audio Jack x 1 (line out + Mic)
- 12-60V DC-in
- Fanless Chassis design
Specifications
SYSTEM
CPU
8th generation Intel Core i7/i5/i3/Celeron Processor SoC
MEMORY
Onboard DDR4 memory, Max 16GB
Single Channel: 4GB
Dual Channel: 8GB, 16GB
GRAPHICS
Intel® Graphics , GEN 9
STORAGE
eMMC 64GB
ETHERNET
i7/i5 SKU LAN (i210 AT) x 1, LAN (i219 LM) x 1
i3/Celeron® LAN (i210 AT) x 1, LAN (i219 V) x 1
WIFI/BT
Optional
EXPANSION SLOT
M.2 2230 E Key x 1
M.2 2280 M Key x 1
mPCIe slot x 1
100pin connector x 1
40 pin HAT x 1
SATA3 connector x 1 (support 2.5" HDD/SSD expansion)
SECURITY
-
OS SUPPORT
Win 10, Linux Ubuntu 18.04 with Kernel 5.0, Linux Yocto 2.7 with Kernel 4.19
I/O PLACEMENTS
USB
USB 3.2 Gen 2 STACK Connector for 2 ports (Front) x 1
USB 3.2 Gen 2 STACK Connector for 2 ports (Rear) x 1
DISPLAYPORT
HDMI 2.0 x 1 (Support 4K at 60 Hz), DP 1.2 x 1,
16pin GPIO connectors (1 x GPIO for SMT32, 1 x GPIO for 40pin HAT)
ETHERNET
RJ45 connector x 2
COM
RS-232/422/485 x 2
AUDIO
Line out + MIC x 1
GPIO
-
POWER SUPPLY
POWER REQUIREMENT
12V5A
POWER SUPPLY TYPE
12VDC from M/B
POWER CONSUMPTION (TYPICAL)
-
MECHANICAL
MOUNTING
-
DIMENSIONS (W X H X D)
-
NET WEIGHT
-
GROSS WEIGHT
6.61lbs (3kg)
ENVIRONMENT
OPERATING TEMPERATURE
eMMC: 32°F ~ 140°F (0°C ~ 60°C)
SATA: -4°F ~ 158°F (-20°C ~ 70°C)
With AI module: 32°F ~ 140°F (0°C ~ 60°C)
OPERATING HUMIDITY
0% ~ 90% relative humidity, non-condensing
STORAGE TEMPERATURE
-
MTBF
-
CERTIFICATION
CE/FCC Class A, RoHS Compliant, REACH
