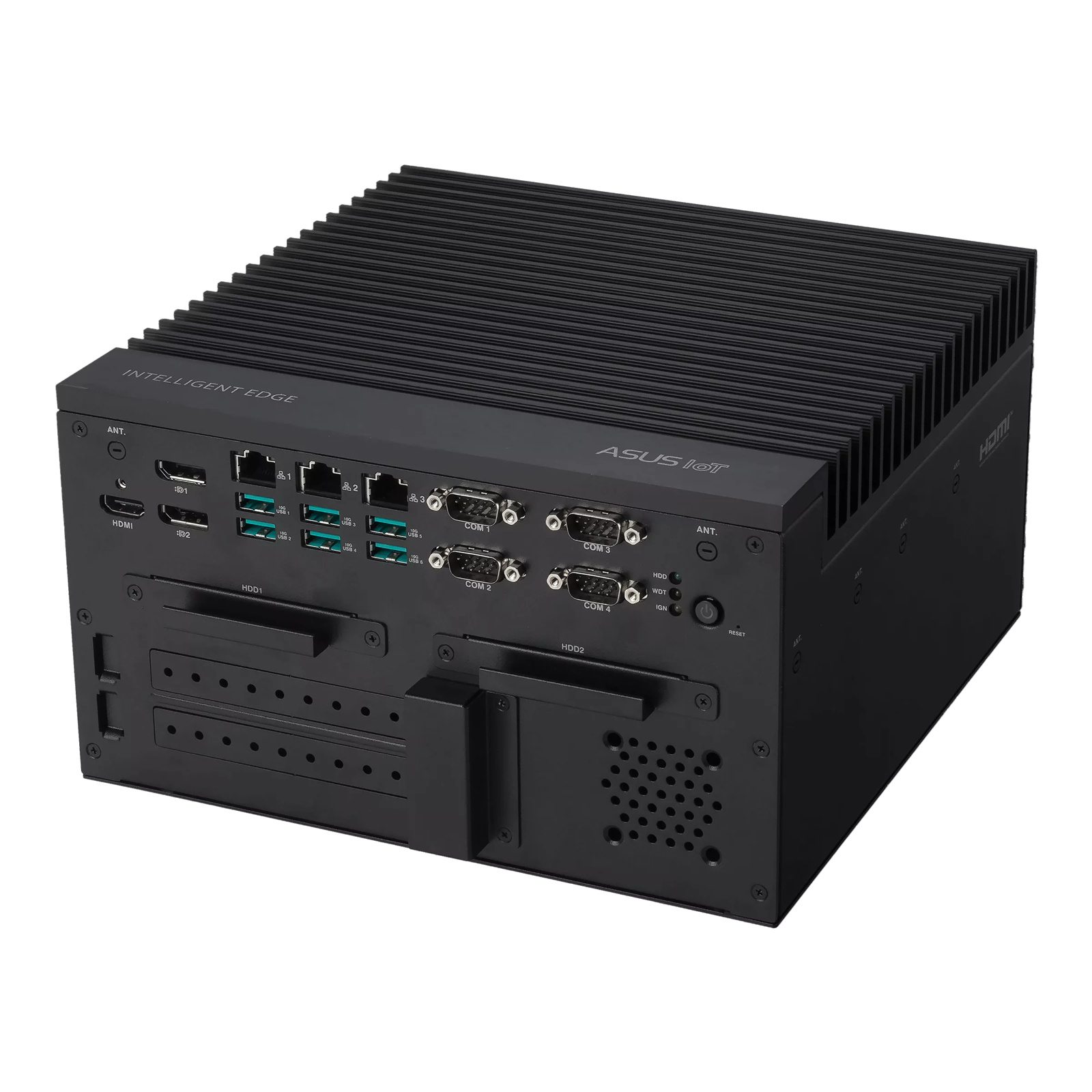

ASUS IoT Rugged AI GPU system PE5101D Core i3 14100T Barebone 2.5 Hot-Swappable SSD/HDD Tray, RD 0/1 and up to 200W Graphics Card
Out of stock
ASUS IoT Rugged AI GPU system PE5101D Core i3 14100T Barebone 2.5 Hot-Swappable SSD/HDD Tray, RD 0/1 and up to 200W Graphics Card
- Brand: ASUS IoT
- MPN: PE5101D i3
- Part #: WKSASU011
- UPC:
- Brand: ASUS IoT
- MPN: PE5101D i3
- Part #: WKSASU011
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Computers





ASUS IoT Rugged AI GPU system PE5101D Core i3 14100T Barebone 2.5 Hot-Swappable SSD/HDD Tray, RD 0/1 and up to 200W Graphics Card
- Brand: ASUS IoT
- MPN: PE5101D i3
- Part #: WKSASU011

Product URL: https://www.pbtech.com/pacific/product/WKSASU011/ASUS-IoT-Rugged-AI-GPU-system-PE5101D-Core-i3-1410
Features
Rugged High Performance Edge Computer Supports Intel® 14th/ 13th/ 12th Gen Core™ i CPU, 2.5" Hot-Swappable SSD/HDD Tray, RAID 0/1 and up to 200W Graphics Card
- Supports Intel® 14th/ 13th/ 12th Gen Core™ i CPU with R680E chipset
- Supports dual 2.5" hot-swappable SSD/HDD tray & RAID 0/1
- Rich I/O with 3 x 2.5 GbE, 10 x USB, 6 x COM
- PCIe x16 & PCIe x4 expansion slots support up to 200-watt Graphics card
- 8 to 48V wide-range DC-in w/ built-in ignition power control
- Wide operating temperature range: -25° C to 60° C
Specifications
Processors
CPU
Intel® Core™ i3-14100T
TDP
35W
# of Cores
4
Base Freq.
2.7GHz
System
Chipset
Intel® R680E
Memory
2 x SO-DIMM (supports DDR5 ECC/non-ECC, up to 4800 MHz, max. 64GB)
I/O Interfaces
Display
1 x HDMI, supports up to 4096 x 2160 @ 30 Hz
2 x DP++, supports up to 4096 x 2160 @ 60 Hz
Ethernet
3 x 2.5 GbE, RJ45 (Intel® i226-IT)
AMT
Supports Intel® vPro/ AMT
USB
6 x USB 3.2 Gen 2 (10Gbps)
2 x USB 3.2 Gen 1 (5Gbps)
2 x USB 2.0
COM
2 x RS-232/422/485
4 x RS-232
1 x Mic-in
Audio
1 x Line-out
DIO
8-bit isolated DIO(4-in/4-out, terminal block, optional)
Storage
2.5" SATA
2 x 2.5" (supports hot-swappable SSD/HDD tray, RAID 0/1)
M.2 M Key
1 x M.2 2280 M-key (PCIe Gen4x4)
Expansion Slot
M.2 E-Key
1 x M.2 2230 E-key (PCIex1/USB2.0)
M.2 B-Key
1 x M.2 3042/3052 B-key with dual nano-SIM slot(PCIex1/USB 3.2 Gen1/USB2.0)
Mini PCIe
1 x Mini PCIe socket (PCIex1/USB 2.0)
PCIe Slot
1 x PCIe Gen4 x4 slot
1 x PCIe Gen4 x16 slot, the max in size 229 x 123.24 x 49.6 mm1 PCIe Slot
Power
Power input
8 to 48 V DC-in, 3-pin terminal block (V+, GND, IGN)
Remote switch
2-pin terminal block (Remote, GND)
Mechanical
Mounting
Wall-mount
Dimensions
242 x 241.4 x 137mm
Weight
5.81 kg
Environment
Operating Temp.
-25° C to 60° C 2,3
Storage Temp.
-40° C to 85° C
Relative Humidity
10 to 95% (non-condensing)
EMC
CE, FCC, BSMI
Safety
CE-LVD, CB, BSMI, CCC
Vibration
Operating: MIL-STD 810H Method 514.8, Category 4 & 3Grms, 5-500 Hz, 3 Axes
Shock
Operating: MIL-STD 810H Method 516.8, Procedure I, Table 516.6-ll; 20 G 11ms
Green
GA (RoHS)
Security
TPM
Supports dTPM v2.0
Others
Watch dog timer
Supported
OS
Windows® 11 IoT Enterprise (64-bit)
Windows® 10 IoT Enterprise (64-bit)
Linux by Project support
