ASUS IoT Rugged Fanless system EBS-P300 Celeron J6412 Barebone LPDDR4x on board, up to 4Kp60 solutions via HDMI X 2, Dual-LAN, Multiple COM, USB3.2, M.2 E key, M.2 B key, 12-24V DC

PB Tech price

NZD $ 1,113 .33

$ 1,113 .33

Out of stock

ASUS IoT Rugged Fanless system EBS-P300 Celeron J6412 Barebone LPDDR4x on board, up to 4Kp60 solutions via HDMI X 2, Dual-LAN, Multiple COM, USB3.2, M.2 E key, M.2 B key, 12-24V DC

Rugged Fanless

Brand: ASUS IoT
MPN: EBS-P300
Part #: WKSASU050
UPC:

PB Tech price

NZD $ 1,113 .33

Out of stock

Delivery: Out of stock

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: ASUS IoT
MPN: EBS-P300
Part #: WKSASU050
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Extreme Light BOX PC, Easy To Adapter Everywhere

Fanless design for rugged environments

Supports 2.5Gbe & 1Gbe Ethernet for various data transmission.

Fix Holes for Antenna, Wall Mount, DIN-Rail Kit Optional

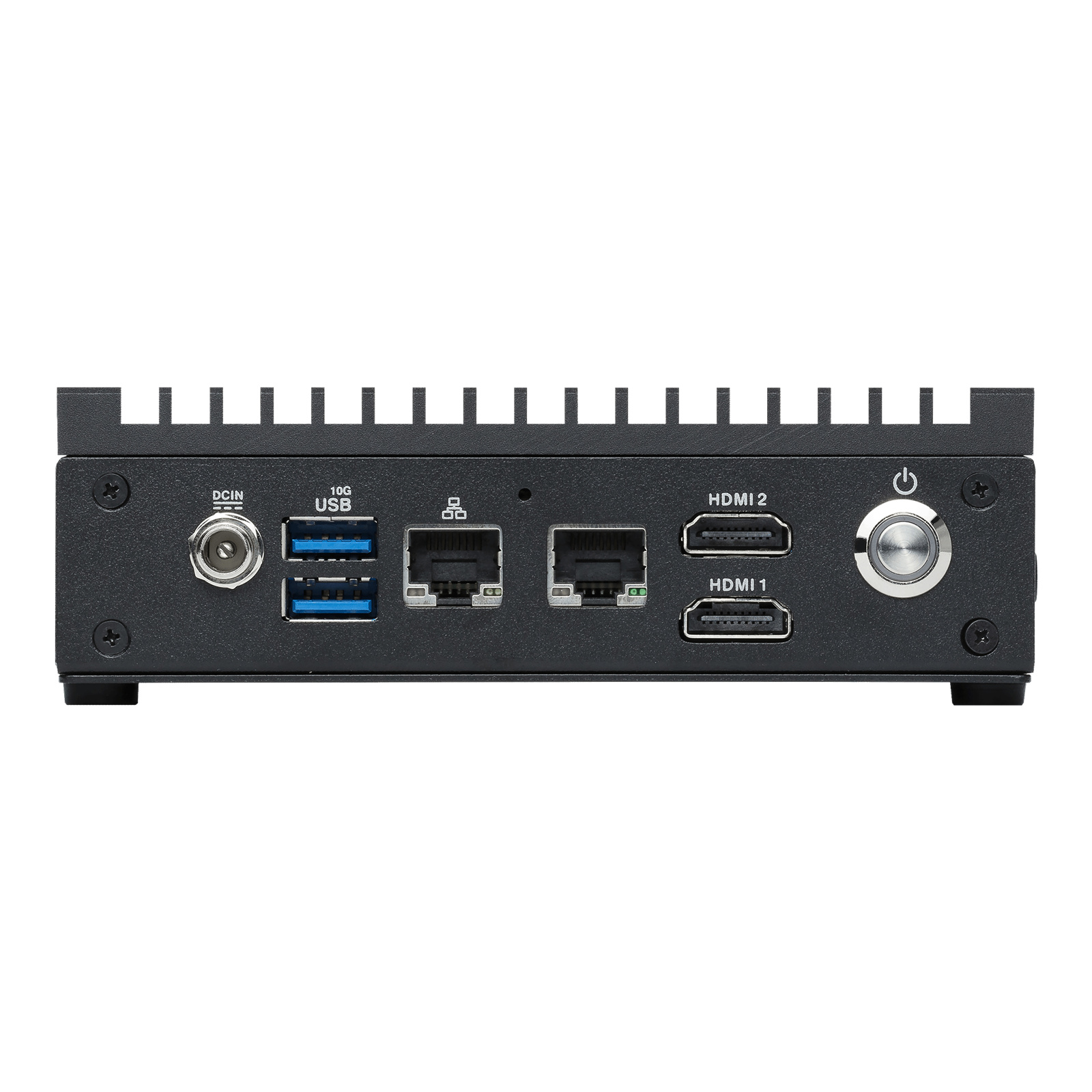

Excellent expansibility with essential I/O ports on front/back side bezel

TPM 2.0 on board or optional

The EBS-P300 PICO-ITX motherboard is equipped with the Intel^® Celeron^® J6412 processor and is suitable for various applications due to its fanless design. It comes with on-board LPDDR4x-3733 8GB memory and up to 128GB EMMC storage. Additionally, it can drive independent displays with up to 4Kp60 resolution through two HDMI ports.

Experience versatile data transmission with support for both 2.5Gbe and 1Gbe Ethernet, while our system comes equipped with basic I/O ports on both front and rear sides, allowing seamless expansion and connectivity to other devices. Whether integrating POS systems or incorporating external devices, unlock greater flexibility and convenience.

As the world's No.1 motherboard brand, ASUS offers industrial motherboards with durable, industrial-grade components for reliable 24/7 operation in harsh environments and use in different vertical markets. ASUS provides a faster time-to-market with customization and motherboard modulation by leveraging over 30 years of design and innovation expertise, world-class after-sales service, material supply flexibility, the ability to respond rapidly to forecast changes and long-term technical support, enabling customers to find the perfect solution to match their requirements.

Specifications

System CPU

CPU

Intel® Celeron® J6412 Processor

Base Frequency

Up to 2.6 GHz

Core/Tread

4/4

CPU TDP

10W

Memory

Technology

LPDDR4x 3733

Max.

8GB

Storage

EMMC

128GB

M.2 B Key

1 x M.2 2242 B Key Socket

External Interfaces

Video

1 x HDMI 2.0; 1 x HDMI 1.4

Ethernet

1 x Intel® I226V (2.5 Gbe) & 1 x Intel I210AT (1 Gbe)

USB

2 x USB 3.2; 2 x USB 2.0

COM

2 x RS232/422/485

Expansion Slot

M.2

1 x 2230 M.2 E key for WIFI/BT device
1 x 2242 M.2 B Key (Support PCIE & SATA Storage)

Power

12V-24V DC Input

Mechanical

Construction

Aluminum housing

Mounting

DIN-rail/Wall Mount

Dimensions

137 x 81 x 44.45 mm

Security

TPM

TPM2.0, TPM optional (Infineon SLB 96xx)

OS & Software Support

Microsoft Windows

Windows® 10 (64bit) / Windows® IoT enterprise

Linux

Ubuntu, RedHat Enterprise, Fedora Workstation, OpenSUSE

ASUS IoT Suite

HW Monitor
Power Scheduling
Fan Control
Watch Dog Timer
GPIO
I2C
Linux GPIO Sample code

User Interfaces

API
GUI

Environment

Operating Temp.

0 ~60° C

Relative Humidity

Operational humidity: 40°C@10%~95%

Certification

EMC ,Safety

CE, FCC, CCC, BSMI

Manufacturer Part No:

EBS-P300

Brand:

ASUS IoT

Product Type:

Celeron J6412

UPC

Product Family:

Rugged Fanless system

Shipping Weight:

1 kg

PB Part No:

WKSASU050

Product Model:

EBS-P300

Warranty: 12 months *
