GigaIPC QBiX-Pro-WHLA8145H-A2 Industrial system with Intel Core i3-8145UE Processor / Fanless Design / Dual Channel DDR4 up to 32GB/ 2 x HDMI/DC-Jack
- Brand: GigaIPC
- MPN: 6BQP8145AMR-SI-0U39
- Part #: WKSGICQ20033

Product URL: https://www.pbtech.com/pacific/product/WKSGICQ20033/GigaIPC-QBiX-Pro-WHLA8145H-A2-Industrial-system-wi
Features
QBiX Pro Series of GIGAIPC embedded system is implemented with GIGAIPC QBi Pro (3.5" SubCompact Board). Its fan-less design reduces the risk of fan failure and maintenance efforts. The aluminum heatsink and ruggedized chassis enhanced the ability to work in a harsh environment. The Compact size can easily be designed in any applications in limited space, such as factory automation, industrial controller / Surveillance systems, and IoT Gateway. Furthermore, it can be a computing solution dedicated to thin client, POS, KIOSK for the commercial market.
QBiX-Pro-WHLA8145H-A2 is powered by Intel® Core™ i3-8145UE Whiskey Lake Processor, to provide high computing performance for industrial requests. It is designed with full range 9-36V DC power inputs for the operating temperature of 0°C~50° C and rich I/O interfaces, such as 3 x COM ports, 1 x GPIO (8 bits), 4 x USB 3.2 Gen 2x1 and more as well as expansion M.2 slots to fit in various applications. The system supports 2.5" HDD /SSD (SATA 6Gb/s) with vibration resistance of 5 Grms/5~500Hz and shock endurance to 50G/11ms, to meet industrial standard.
- System Size : 178W x 125D x 52.7H (mm)
- Intel® Core™ i3-8145UE Processor
- Dual Channel DDR4, 2 x SO-DIMMs
- 2 x HDMI for Dual display
- 2 x GbE LAN Ports
Specifications
Dimension
178W x 125D x 52.7H(mm)
CPU
Intel® Core™ i3-8145UE Processor
14nm, 2 cores, 4 threads, up to 3.9 GHz
TDP 15W
Chipset
SoC
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual Channel DDR4 2400 MHz memory modules
Ethernet
2 x GbE LAN Ports (Intel® I219V and Intel® I211AT)
Graphics Support
Integrated Graphics Processor - Intel® UHD Graphics 620:
2 x HDMI 1.4 ports, supporting a maximum resolution of 4096x2160 @30Hz
(2 independent display outputs)
Audio
Realtek® Audio Codec
Storage
1 x 2.5" HDD/SSD (SATA 6Gb/s)
Expansion-Slots
1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)
1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module
Front I/O
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 2x1
2 x HDMI
1 x Power button with LED
1 x HDD LED
1 x COM Port (RS-232/422/485 & RI/5V/12V)

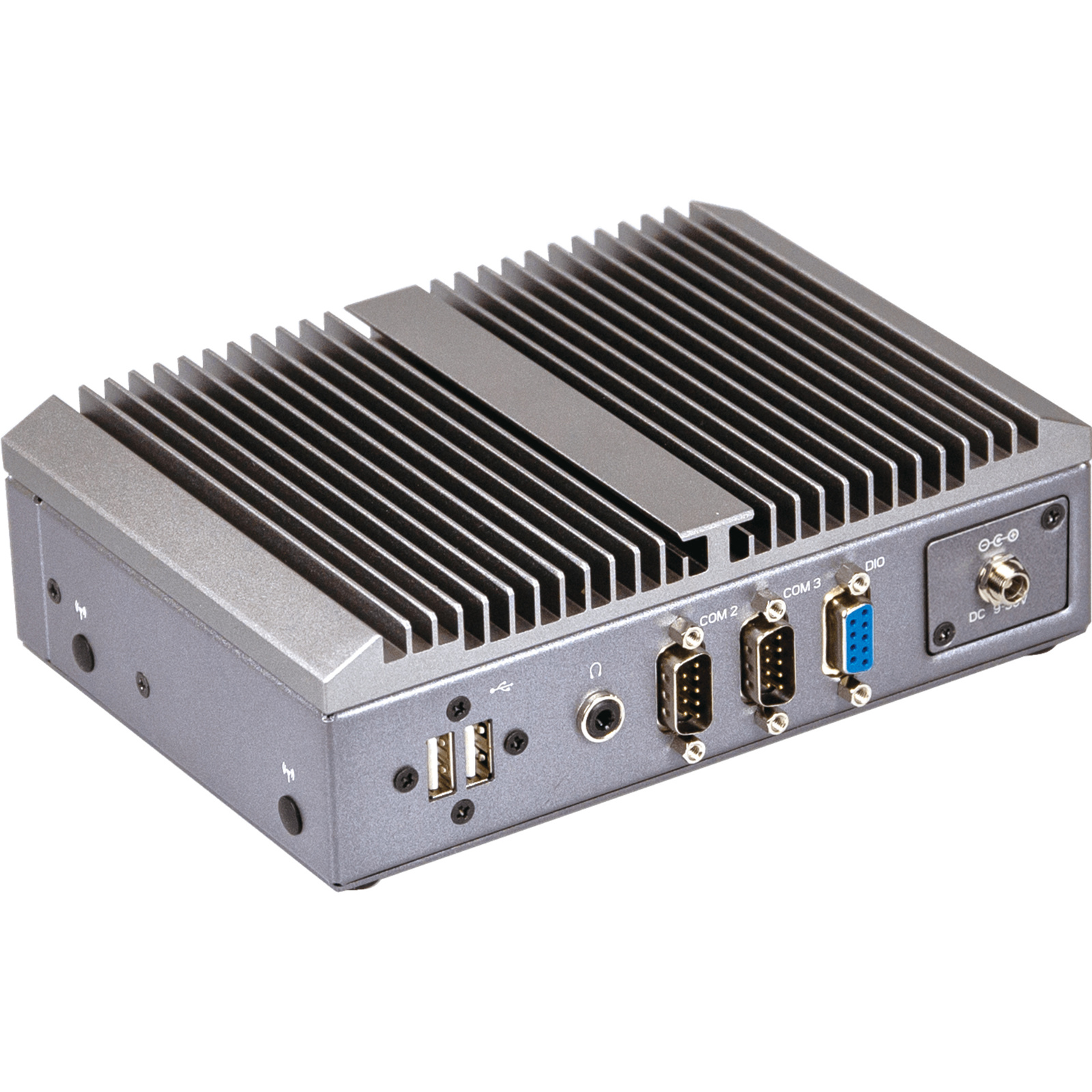

Rear l/O
2 x USB 2.0
2 x COM Ports (RS-232)
1 x GPIO (8 bits)
1 x Headphone Jack
1 x Screw Type DC Jack
Side I/O
2 x External Antenna Holes (Optional)
Power
+9V~36VDC (Adapter 19V/90W)
Operation Temperature
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation
Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Packing Content
Single Box size: 313 x 191 x 95 (mm)
Single Box weight: Approx. 2.1kg
Including:
Screw I Head For 2.5" HDD M3x8L x 4 (P/N: 25KSG-130081-K1R)
Thermal Pad x 2 (P/N: 25ST3-200052-T5R)
Thermal Pad x 1 (P/N: 25ST3-200051-T5R)
SATA Cable x 1 (P/N: 25CF4-070020-S9R)
Power Cord : Optional (by region)
PSU ADP 19V 90W 100-240VAC x 1 (P/N: 25EP4-10090A-F3S)
Mounting
Wall mount (Optional)
Order Information
6BQP8145AMR-SI (Box packing)
Optional Kit
TPM 2.0 module P/N: 9CTM000NR-00
TPM Cable P/N: 25CRZ-100600-S9R
