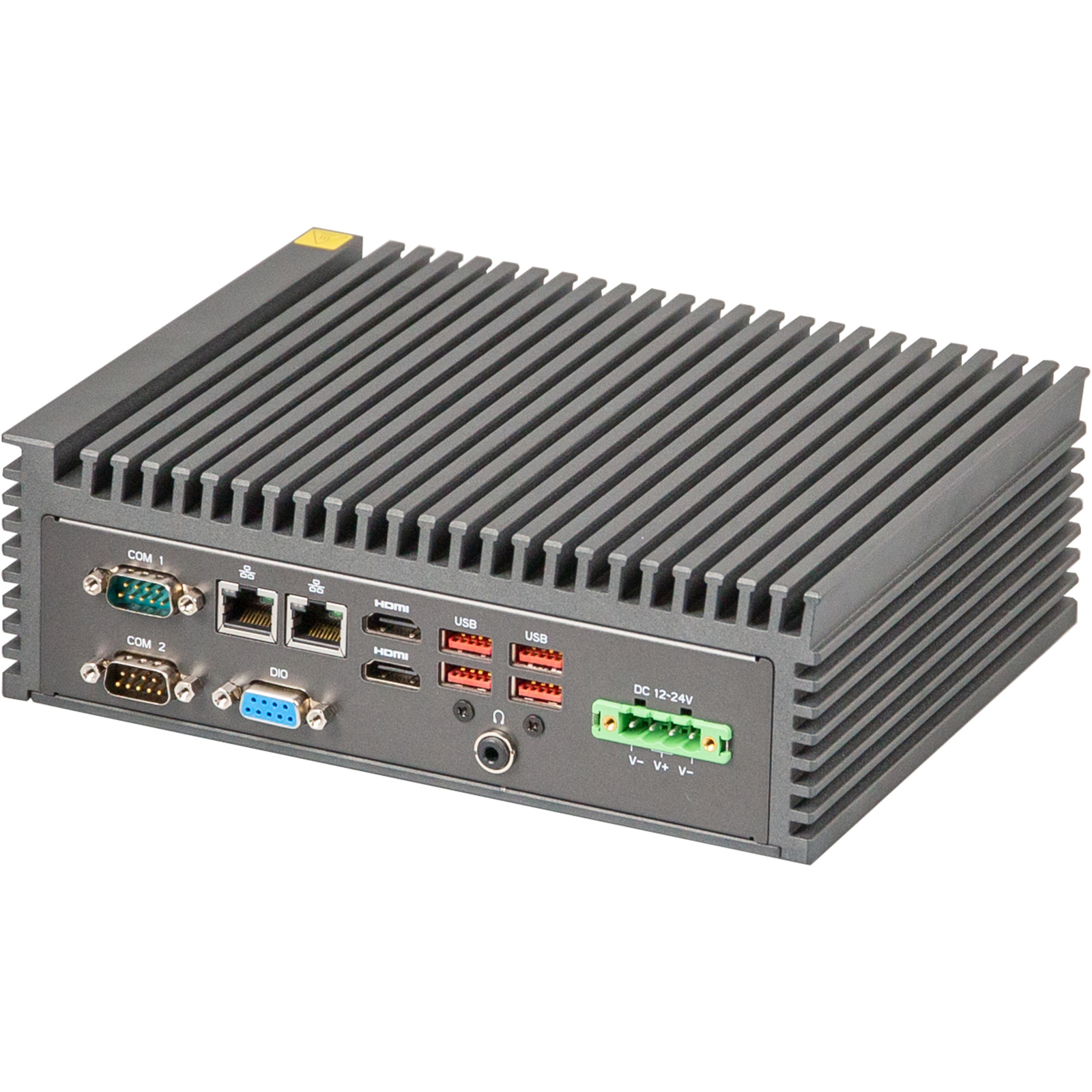

GigaIPC QBiX-Exp-TGLA1135G7H-A1 Fan-less industrial system with Intel Core i5-1135G7 processor 4x802.3af PoE, swappable 2.5" drive bay

PB Tech price
PB Tech price
NZD $ 2,386 .66
$ 2,386 .66
$2,386.66  +GST
$2,386.66

GigaIPC QBiX-Exp-TGLA1135G7H-A1 Fan-less industrial system with Intel Core i5-1135G7 processor 4x802.3af PoE, swappable 2.5" drive bay

  • Brand: GigaIPC
  • MPN: 6BQE1135AMR-SI
  • Part #: WKSGICQ20050
  • UPC:
PB Tech price
NZD $ 2,386 .66 $ 2,386 .66


Delivery: Order now and it ships on 14 Oct
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$2,386.66  +GST
$2,386.66

Features

Industrial system with Intel® Core™ i5-1135G7 Processor/ Fanless Design / Dual Channel DDR4 up to 64 GB/ 2 x HDMI

- System Size : 210.36W x 165D x 67H (mm)
- Intel® Core™ i5-1135G7 Processor
- Dual Channel DDR4, 2 x SO-DIMMs
- 2 x HDMI for Dual display
- 4 x GbE LAN Ports with PoE 15W/Port
- 2 x GbE LAN Ports

Specifications

Dimension

210.36W x 165D x 67H(mm)

CPU

Intel® Core™ i5-1135G7 Processor
10nm SuperFin, 4 cores, 8 threads, up to 4.2 GHz

Chipset

SoC

Memory

2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual Channel DDR4 3200 MHz memory modules

Ethernet

2 x GbE LAN Ports (Intel® I219V and Intel® I211AT)
4 x PoE GbE LAN Ports (Intel® I211AT)

Graphics Support

Integrated Graphics Processor - Intel® Iris Xe Graphics:
2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz
(2 independent display outputs)

Audio

Realtek® Audio Codec

Storage

1 x Swappable 2.5" HDD/SSD (SATA 6Gb/s)

Expansion-Slots

1 x 2280 M.2 M-Key (PCIe x2, SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)
1 x Full-size Mini PCIe with SIM slot

Front I/O

4 x RJ45 LAN Ports with PoE
2 x USB 2.0
1 x Power button with LED
1 x HDD LED
2 x COM Ports (RS-232/422/485)
2 x External Antenna Holes (Optional)

Rear l/O

2 x HDMI
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 2x1
1 x COM Port (RS-232/422/485 & RI/5V/12V)
1 x COM Port (RS-232/422/485)
1 x GPIO (8 bits)
1 x Headphone Jack
1 x 4-pin Terminal Block

Power

+12~24VDC / 13A (PoE support)

Operation Temperature

Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage

Vibration During Operation

Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis

Shock During Operation

Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD

Packing Content

Single Box size: 300 x 276 x 170 (mm)
Single Box weight: Approx. 4.0kg

Including:

Terminal Blocks Male Plug x 1 (P/N: 25IO0-2ESDV0-D2R)
Screw For 2.5" HDD M3x4L x 8 (P/N: 25984G-1C014-S00)
Thermal Pad for Memory x 1 (P/N: 25ST3-200086-T5R)

Mounting

Wall mount (Optional)

Order Information

6BQE1135AMR-SI (Box packing)

Manufacturer Part No:
6BQE1135AMR-SI
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
WKSGICQ20050
Product Model:
QBiX-Exp-TGLA1135G7H-A1
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
