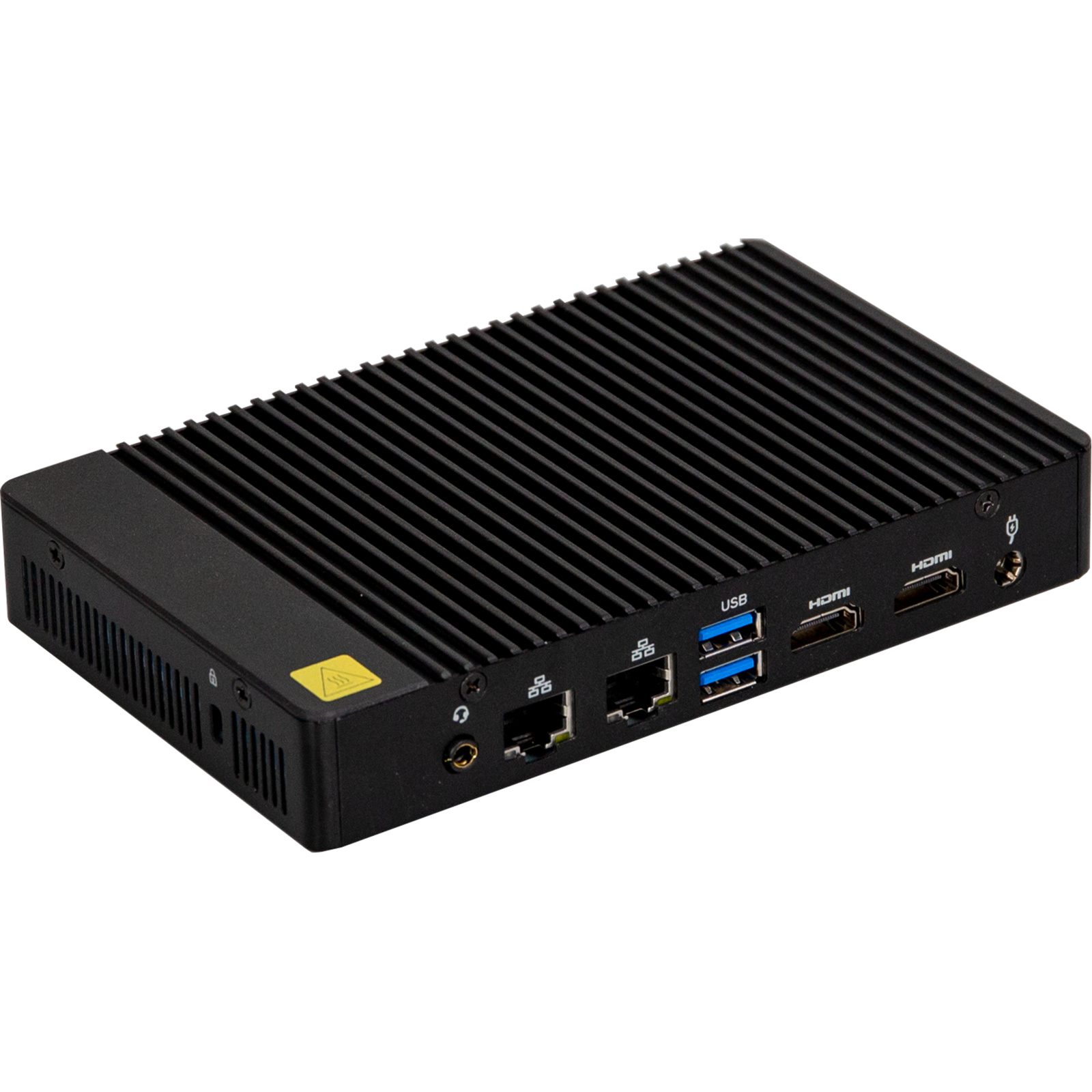

GigaIPC QBiX-Plus-EHLA6412-A1 Industrial system with Intel Celeron J6412 Processor Industrial system with Intel Celeron J6412 Processor
GigaIPC QBiX-Plus-EHLA6412-A1 Industrial system with Intel Celeron J6412 Processor Industrial system with Intel Celeron J6412 Processor
- Brand: GigaIPC
- MPN: 6BQS6412AMR-SI-2S1E
- Part #: WKSGICQ20061
- UPC:
- Brand: GigaIPC
- MPN: 6BQS6412AMR-SI-2S1E
- Part #: WKSGICQ20061
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Computers





GigaIPC QBiX-Plus-EHLA6412-A1 Industrial system with Intel Celeron J6412 Processor Industrial system with Intel Celeron J6412 Processor
- Brand: GigaIPC
- MPN: 6BQS6412AMR-SI-2S1E
- Part #: WKSGICQ20061

Product URL: https://www.pbtech.com/pacific/product/WKSGICQ20061/GigaIPC-QBiX-Plus-EHLA6412-A1-Industrial-system-wi
Features
- Intel® Celeron® J6412 Processor
- Dual Channel DDR4, 2 x SO-DIMMs
- 3 x HDMI for Multiple display
- 2 x GbE LAN Ports
- Support Micro SD Card
- Support COM (RS-232 mode, pass through RJ45 Port)
Specifications
Dimension
165W x 105D x 27H (mm)
CPU
Intel® Celeron® J6412 Processor
10nm, 4 cores, 4 threads, up to 2.60 GHz
TDP 10W
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Support Dual Channel DDR4 3200 MHz memory modules
Ethernet
2 x GbE LAN Ports
Graphics Support
Integrated Graphics Processor -
Intel® UHD Graphics for 10th Gen Intel® Processors:
3 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
(3 independent display outputs)
Audio
Realtek® audio codec
Expansion-Slots
1 x 2280 M.2 M-Key (PCIe x2, SATA 6Gb/s)
1 x 2230 M.2 E-Key
1 x 3042 M.2 B-key with SIM Slot (USB 3.2 Gen 1)
Front I/O
2 x USB 3.2 Gen 1
1 x COM Port (RS-232)(RJ45 Type)
1 x Micro SD card slot
1 x Power button
1 x HDMI
Rear l/O
1 x Headphone Jack
2 x RJ45 LAN Ports
2 x USB 3.2 Gen 1
2 x HDMI
1 x DC Jack
Side I/O
3 x External Antenna Holes (Optional)
Power
+12~19VDC (Adapter 19V/65W)
Operation Temperature
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Vibration During Operation
Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Packing Content
Single Box size: 209 x 169 x 75 (mm)
Single Box weight: Approx. 1.5kg
Including:
Power Cord : Optional (by region)
PSU ADP 19V 65W 100-240VAC x 1 (P/N: 25EP2-10065U-A3S)
RJ45 to D-SUB Cable #24 150mm x 1 (P/N: 25CR0-150402-S9R)
VESA Mount Bracket x 1 (P/N: 25HB1-TPL021-S8R)
VESA Mount screws x 1 (P/N: 25KSD-000002-C0R)
Order Information
System: 6BQS6412AMR-SI (Box packing)
