GigaIPC QBiX-Lite-TGLA1145G7E-A1 Industrial system with Intel Core i5-1145G7E Processor / Fan Design/ Dual Channel DDR4 up to 64GB/ 2 x HDMI/ 2 x DP

PB Tech price
PB Tech price
NZD $ 1,808 .00
$ 1,808 .00
$1,808.00  +GST
$1,808.00

GigaIPC QBiX-Lite-TGLA1145G7E-A1 Industrial system with Intel Core i5-1145G7E Processor / Fan Design/ Dual Channel DDR4 up to 64GB/ 2 x HDMI/ 2 x DP

  • Brand: GigaIPC
  • MPN: 6BQL1145AMR-SI-2S36
  • Part #: WKSGICQ20063
  • UPC:
PB Tech price
NZD $ 1,808 .00 $ 1,808 .00
In stock at Supplier
Delivery: Order now and it ships on 14 Oct
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$1,808.00  +GST
$1,808.00
Add To Compare
Stock Alerts
Click or hover over image to enlarge
  • Brand: GigaIPC
  • MPN: 6BQL1145AMR-SI-2S36
  • Part #: WKSGICQ20063
  • UPC:
Returns & Warranty Bulk Quote Print Page

Features

- System Size: 234W x 155D x 30H (mm)
- Intel® Core™ i5-1145G7E Processor
- Dual Channel DDR4, 2 x SO-DIMMs
- 2 x HDMI
- 2 x Display Ports
- 2 x GbE LAN Ports
- 2 x USB Type-C Ports

Specifications

Dimension

234W x 155D x 30H (mm)

CPU

Intel® Core™ i5-1145G7E Processor
10nm SuperFin, 4 cores, 8 threads, up to 4.1 GHz

Chipset

SoC

Memory

2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual channel DDR4 3200 MHz memory modules

Ethernet

2 x GbE LAN Ports (Intel® I219LM and Intel® I211AT)

Graphics Support

Integrated Graphics Processor - Intel® Iris® Xe Graphics:
2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz
2 x DP 1.4 ports, supporting a maximum resolution of 7680x4320 @30Hz
1 x DP 1.4 through USB type C (8k), supporting a maximum resolution of 7680x4320 @30Hz
(4 independent display outputs)

Audio

Realtek® Audio Codec

Storage

1 x 2.5" HDD/SSD (SATA 6Gb/s)

Expansion-Slots

1 x 2280 M.2 M-Key (PCIe x2, SATA 6Gb/s)
1 x 2230 M.2 E-Key
1 x 3052 M.2 B-Key with SIM slot (Support 5G)

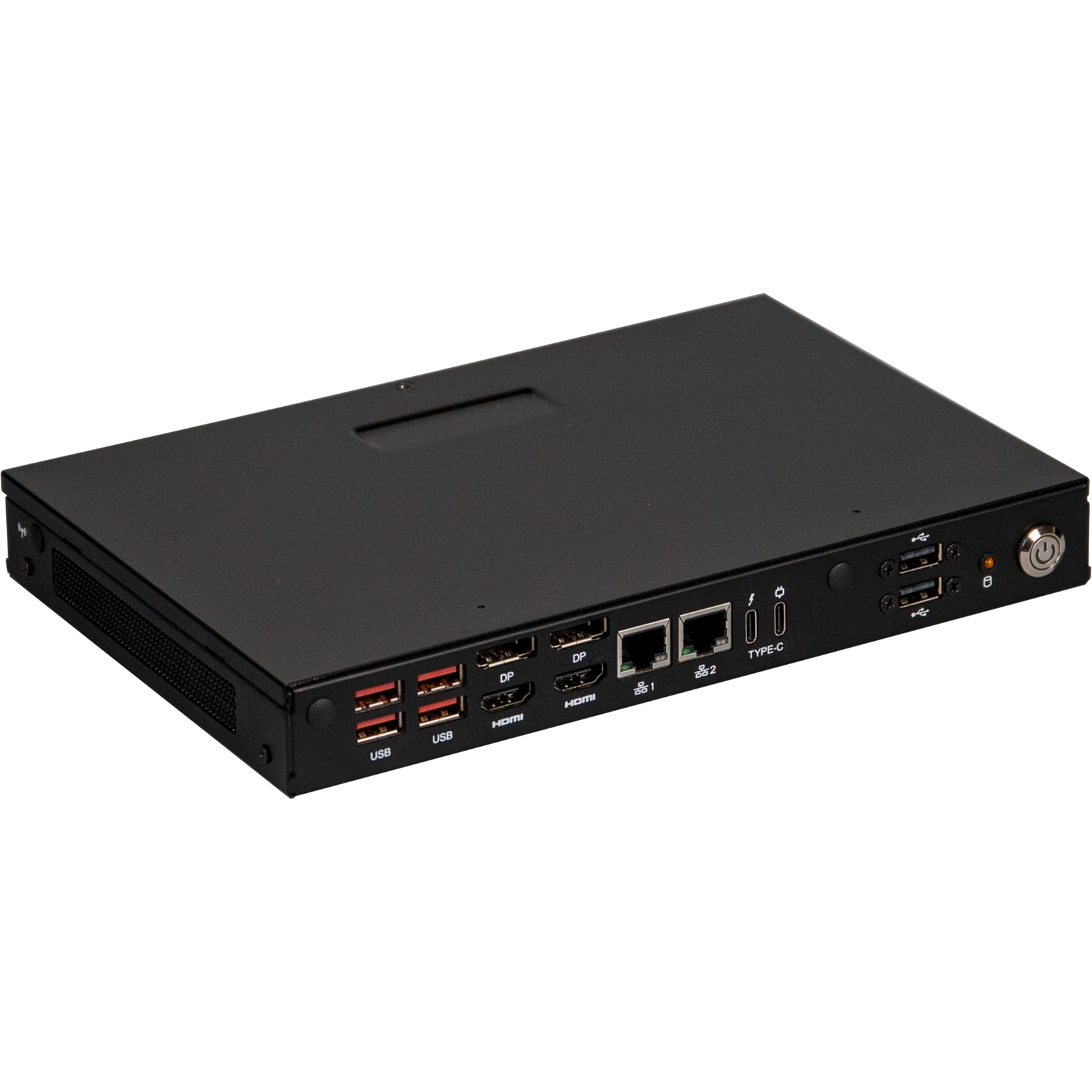

Front I/O

1 x USB type C (USB 3.2 Gen 2x1, DP Alt Mode & PD Out -30W)(-100W requests to use 250W adapter)
1 x USB type C (USB 3.2 Gen 2x1, PD input-100W)
4 x USB 3.2 Gen 2x1
2 x HDMI
2 x DP
2 x RJ45 LAN Ports
2 x USB 2.0
1 x HDD LED
1 x Power button with LED
2 x External Antenna Holes (Optional)

Rear l/O

1 x COM Port (RS-232)
2 x USB 2.0
1 x Headphone Jack
1 x Screw type DC Jack
2 x External Antenna Holes (Optional)

Side I/O

1 x External Antenna Hole (on each side)

Power

+12V~24VDC (Adapter 19.5V/135W)

Operation Temperature

Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage

Vibration During Operation

Operation: IEC 60068-2-64, 1 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis

Shock During Operation

Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD

Packing Content

Single Box size: 336 x 279 x 90 (mm)
Single Box weight: Approx. 2.2kg

Including:

Bracket for Wall Mount x 2 : 25HB1-SD4000-R0R
Screws for Wall Mount x 4 : 25KS9-130600-S0R
PSU ADP 19.5V 135W 100-240VAC x 1 : 25EP4-201352-C1S
Power Cord : Optional (by region)
Thermal Pad for Memory x 1 : 25ST3-200086-T5R
SATA Cable x 1 : 25CRI-180002-S9R
Screws for 2.5" HDD x 8 : 25KS2-13004G-S0R

Mounting

Wall mount (Default)
VESA 75/100 (Optional)

Order Information

6BQL1145AMR-SI (Box packing)

Manufacturer Part No:
6BQL1145AMR-SI-2S36
Brand:
GigaIPC
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
WKSGICQ20063
Product Model:
QBiX-Lite-TGLA1145G7E-A1
Warranty: 12 months *
