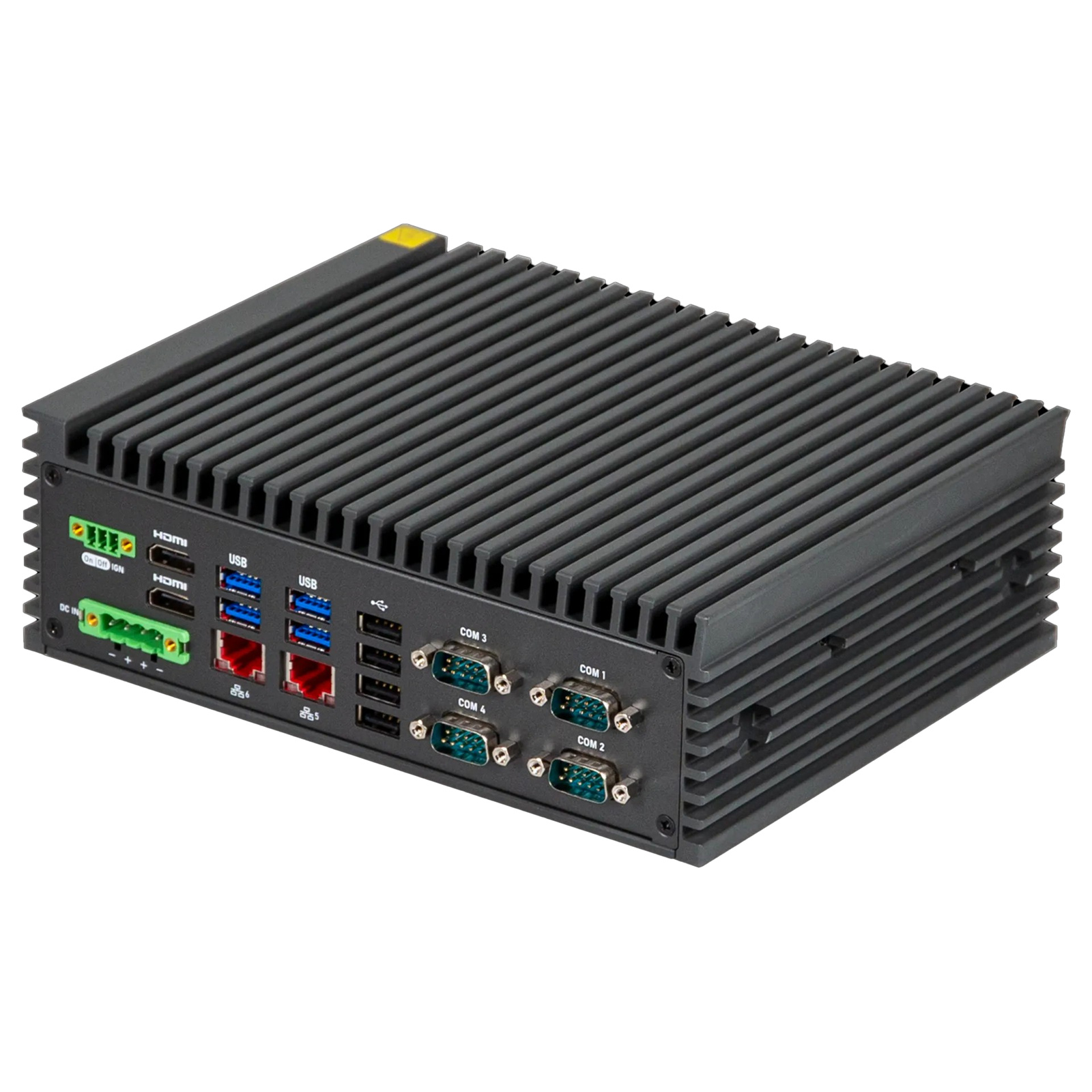

GigaIPC QBiX-Expert-RPLA1340PEH-A1 with Intel Core i5-1340P Processor / Fanless Design / Dual Channel DDR5 up to 64 GB/ 2 x HDMI

PB Tech price
PB Tech price
NZD $ 2,110 .66
$ 2,110 .66
$2,110.66  +GST
$2,110.66

GigaIPC QBiX-Expert-RPLA1340PEH-A1 with Intel Core i5-1340P Processor / Fanless Design / Dual Channel DDR5 up to 64 GB/ 2 x HDMI

  • Brand: GigaIPC
  • MPN: 6BQE1340AMR-SI-4S8X
  • Part #: WKSGICQ20070
  • UPC:
PB Tech price
NZD $ 2,110 .66 $ 2,110 .66


Delivery: Order now and it ships on 14 Oct
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$2,110.66  +GST
$2,110.66

Features

System Size : 210.36W x 165D x 65H (mm)
Intel® Core™ i5-1340PProcessor
Dual Channel DDR5, 2 x SO-DIMMs
2 x HDMI for Dual display
10 x LAN Ports

Specifications

Dimension

210.36W x 165D x 65H(mm)

CPU

Intel® Core™ i5-1340P Processor
Intel 7, 12 cores, 16 threads, up to 4.60 GHz

Chipset

SoC

Memory

2 x DDR5 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual Channel DDR5 5200 MHz memory modules

Ethernet

2 x 2.5GbE LAN Ports
4 x GbE LAN Ports
4 x PoE GbE LAN Ports

Graphics Support

Integrated Graphics Processor - Intel® Iris® Xe Graphics eligible:
2 x HDMI 2.1 ports, supporting a maximum resolution of 4096x2160 @60Hz
(2 independent display outputs)

Audio

Realtek® Audio Codec

Storage

Support 1 x Swappable 2.5" HDD/SSD (SATA 6Gb/s)

Expansion Slots

1 x 2280 M.2 M-Key (PCIe Gen 4x4)
1 x 2230 M.2 E-Key (WiFi/BT)
1 x 3052 M.2 B-Key with SIM slot

Front I/O

4 x RJ45 LAN Ports with PoE
4 x RJ45 LAN Ports
1 x GPIO (8 bits)
1 x HDD LED
1 x Power button with LED
1 x Combo audio jack (Headphone & Headset)

Rear l/O

2 x 2.5GbE LAN Ports
4 x COM Ports (RS-232/422/485)
4 x USB 3.2 Gen1
4 x USB 2.0
2 x HDMI
1 x Ignition support (3 pin)- HW Jumper
1 x 4-pin Terminal block (DC IN)

Side I/O

4 x External Antenna Holes (wifi/5G)-optional

TPM

TPM on board

Power

+19~36VDC

Operation Temperature

Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage

Order Information

6BQE1340AMR-SI (Box Packing)

Manufacturer Part No:
6BQE1340AMR-SI-4S8X
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
3.64 kg
PB Part No:
WKSGICQ20070
Product Model:
QBiX-Expert-RPLA1340PEH-A1
Warranty: 12 months *
