iBASE Ultra-Compact IoT AGS103TS-6414RM /4G/128G/Win10 IoT Intel Atom X6414RE, SoC, TPM2.0, wide-temp 3 x 2.5G LAN, 4-in/4-out isolation GPIO, w/ Wall & Din-rail mounting brackets, 12V/60W power adapter, support 2.5 SATA storage
- Brand: iBASE
- MPN: AGS103TS-6414RM w/win10
- Part #: WKSIBA103TS2

Product URL: https://www.pbtech.com/pacific/product/WKSIBA103TS2/iBASE-Ultra-Compact-IoT-AGS103TS-6414RM-4G128GWin1
Features
Intelligent System AGS103T Compact IoT Gateway Edge Computing System with Intel® Atom® x6414RE/x6212RE Processors
- Intel® Atom® x6414RE/x6212RE Processors (formerly Elkhart Lake)
- GPIO 4-in/4-out & 1x DVI-I & 1x HDMI
- Over/Under/Reverse voltage protection
- Extended operating temperature from -20°C to 70°C
- 9V~36V DC wide-range power input
- 1x M.2 B-Key 3052 support 5G module
- Optional 1x 2.5" SSD (AGS103TS)
- 3x 2.5G Ethernet ports
- 2x full-size Mini PCI-E
- 4x COM (RS232/422/485), 2x USB 3.1 & 2x USB 2.0
- Supports DIN-rail mount, wall mount & TPM 2.0
Specifications
System Mainboard
IB803T
CPU Type
Intel® Atom® x6414RE (1.5GHz, 1.5MB cache, 9W TDP)
Intel® Atom® x6212RE (1.2GHz, 1.5MB cache, 6W TDP)
System Speed
Up to 1.5GHz
Memory
1x DDR4 SO-DIMM , Max. 16GB

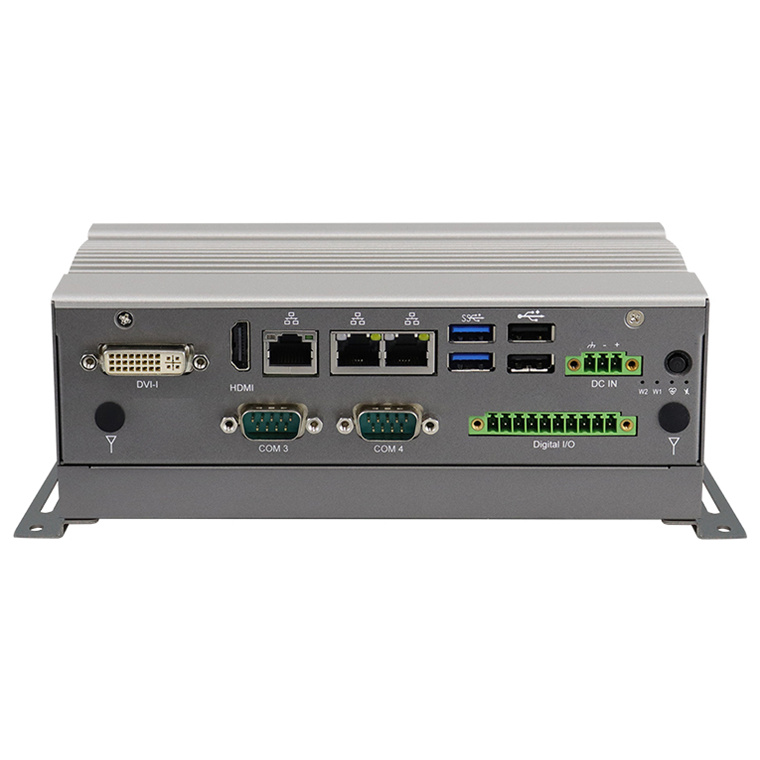

Rear Panel External I/O
1x DVI-I + 1x HDMI
2x USB 3.1 ports, 2x USB 2.0 port
3x RJ45 2.5G Ethernet port
4x LED indicators (GPIO, WLAN, WWAN)
1x power button with Green LED
1x 3-pin DC-in terminal block for 9V-36V
2x Antenna hole for WLAN module
2x RS232/422/485 ports for COM#3/COM#4
1x 4-in & 4-out GPIO
Left Panel External I/O
2x RS232/422/485 ports for COM#1/COM#2
1x Antenna hole for WLAN module
1x Line-out/ Mic-in

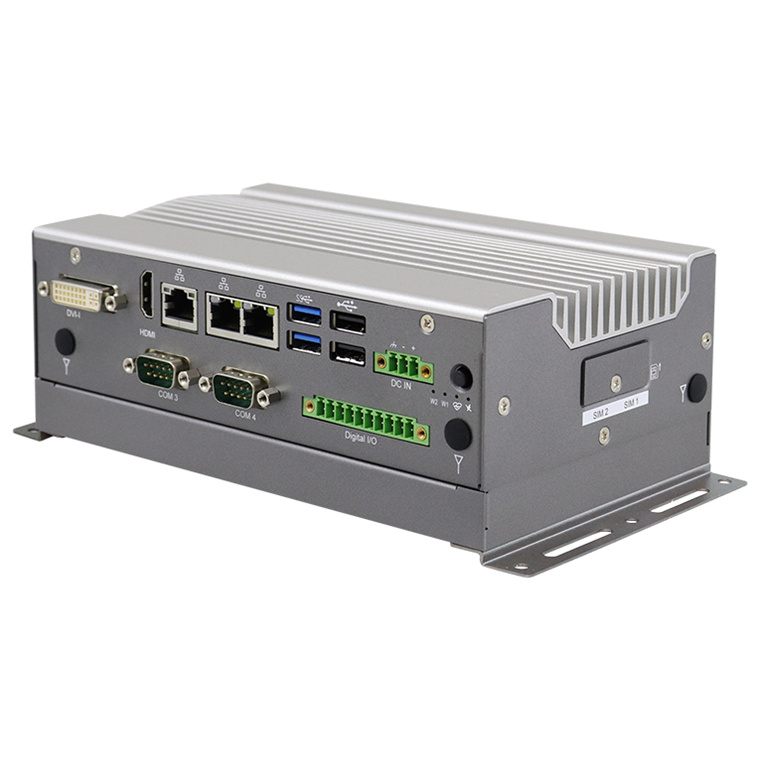

Right Panel External I/O
2x SIM card slot
1x Antenna hole for WLAN module
Expansion Slots
1x Full-size Mini PCI-E socket (USB 2.0)
1x Full-size Mini PCI-E socket (USB 2.0 + SATA)
1x M.2 B-Key socket (USB 3.0 + PCI-E)
Storage
1x Mini PCI-E slot (mSATA SSD),1x 2.5'' SSD (AGS103TS)
Construction
Aluminum & steel
Chassis Color
Silver & Gray
Mounting
DIN-rail mounting (DIN-rail mount kit included)
Desktop or wall mounting (wall mount kit included)
Dimensions
AGS103T :
218mm(W) x 110mm(D) x 52mm (H) w/ Wall-mount kit
8.58"(W) x 4.33mm(D) x 2.05mm (H)
AGS103TS :
218mm(W) x 110mm(D) x 73mm (H) w/ Wall-mount kit
8.58"(W) x 4.33mm(D) x 2.87mm (H)
Weight
1.2kg
Operating Temperature
-20°C~70°C (-4°F~158°F)
Storage Temperature
-40°C ~ 85°C (-40°F~185°F)
Relative Humidity
5~90% @ 60°C, (non-condensing)
Vibration
Operating: 2.0 Grms / 5~500Hz / random operation (with IEC 60068-2-64)
Shock
Operating: 30G/11 ms Duration
Non-operating: 40G/11 ms Duration
Certification
CE/ FCC/ LVD
Operating Systems
Win10 and Linux Ubuntu
