iBASE Embedded Computing AMI232AFM-F Core-i3 9300TvPro, 8G Wifi/bluebooth kits,support 2PCIe x8, 12USB port & 2PCIex8 slot, Aluminum Chassis, Fanless Design, with Power adapter 330W KIT

PB Tech price
PB Tech price
NZD $ 2,620 .63
$ 2,620 .63

Out of stock

iBASE Embedded Computing AMI232AFM-F Core-i3 9300TvPro, 8G Wifi/bluebooth kits,support 2PCIe x8, 12USB port & 2PCIex8 slot, Aluminum Chassis, Fanless Design, with Power adapter 330W KIT

  • Brand: iBASE
  • MPN: AMI232AFM-F
  • Part #: WKSIBA232A
  • UPC:
PB Tech price
NZD $ 2,620 .63 $ 2,620 .63


Delivery: Out of stock
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info

Features

AMI232 - Expandable Fanless & Ventless System with 9th Gen Intel® Core™ i3 Desktop Processors (35W TDP)

- Fanless system with IBASE MB230 customized board
- 9th Gen Intel® Core™ i3 Desktop Processors
- Dual SIM slots supports WWAN redundancy
- 4x RJ45 Gigabit Ethernet port (2x Supports 802.3at PoE+)
- 3x M.2 (B-Key/E-Key/M-Key)
- Supports Over/Under/Reverse voltage protection
- iSMART, iAMT (11.6), TPM (2.0)
- Flexible expansion slot system
- 2x 2.5" storage (Supports RAID 0/1)

The AMI232 is a robust embedded system based on the 9th/8th Gen Intel® Core™ platform. Developed for smart factory, industrial automation, AIoT and other applications in harsh environments, the rugged AMI232 delivers exceptional computing and graphics performance with an extended operating temperature range of -20°C to 70°C, operating vibration up to 3Grms and over/under/reverse voltage protection.

The AMI230 series houses the Intel® Q370 MB230AF motherboard and is equipped with multiple high speed I/O including 8x USB 3.1, 4x COM, and 3x M.2 (B-Key, E-Key & M-Key) for NVMe storage, WiFi and 4G/LTE options, and HDMI/DP/DVI-D display interface. It also features four Gigabit Ethernet ports making it highly suitable for network related applications, iAMT (11.6) for system remote management and repair, TPM (2.0) security for preventing phishing attacks, and iSMART green technology for power on/off scheduling and power resume functions.

All models in the series come with 8GB of DDR4 memory that is expandable to 32GB, a 64GB MLC industrial-grade SSD, and 12V or 18V~24V wide-range DC input. Operating systems supported are Windows 10 (64-bit) / Windows 7 (32-bit & 64-bit), and Linux Ubuntu / Fedora 24. The AMI231 and AMI232 variations support optional expansion cards featuring PCI, PCIe (x1), PCIe (x8), PCIe (x16), 2x COM (COM5 & COM6), 1x SATA II, and 2x USB 2.0.

Specifications

System Mainboard

MB230AF with Intel® Q370 PCH
MB230AF-P with Intel® Q370 PCH
(supports PCI-E function for M.2 (B-KEY)

CPU Type

9th Gen Intel® Core™ i3 Desktop Processor

System Speed

Up to 4.00 GHz

Memory

2x DDR4-2666/2400 SO-DIMM, Max. 32GB

Construction

Aluminum & steel

Chassis Color

Silver + Gray (Aluminum)

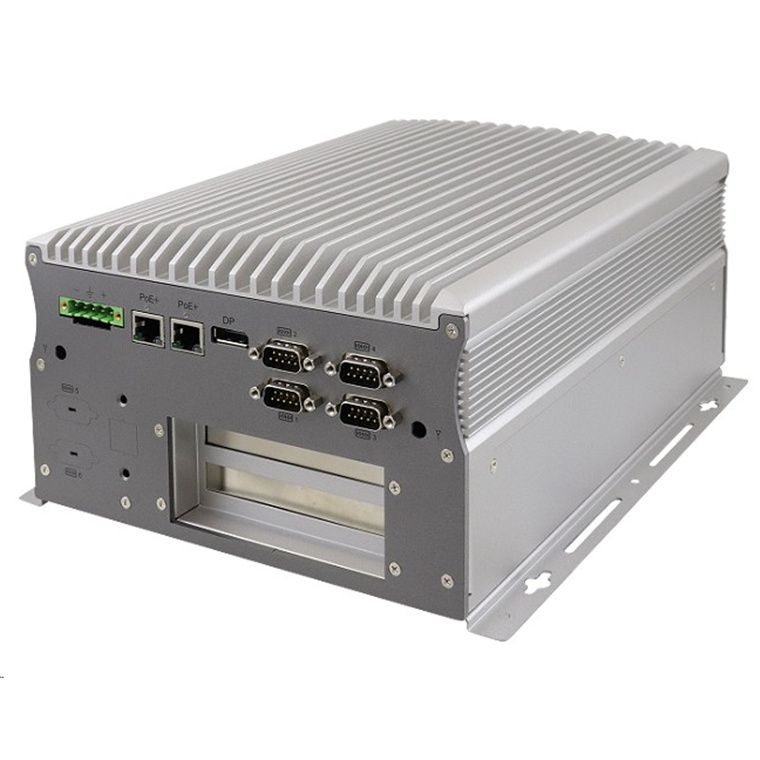

Front Panel External I/O

1x RS232/422/485 port for COM#1~COM#2
3x RS232 ports for COM#3~COM#4
2x RS232 ports for COM#5~6 from optional IP211/IP212
1x DisplayPort (1.2)
2x RJ45 Gigabit Ethernet port (Supports 802.3at PoE+)
1x 5-pins DC-in terminal block type for 12V or 18V~24V
2x Antenna holes
2x USB 2.0 from optional IP211/IP212/IP213
2x expansion slot

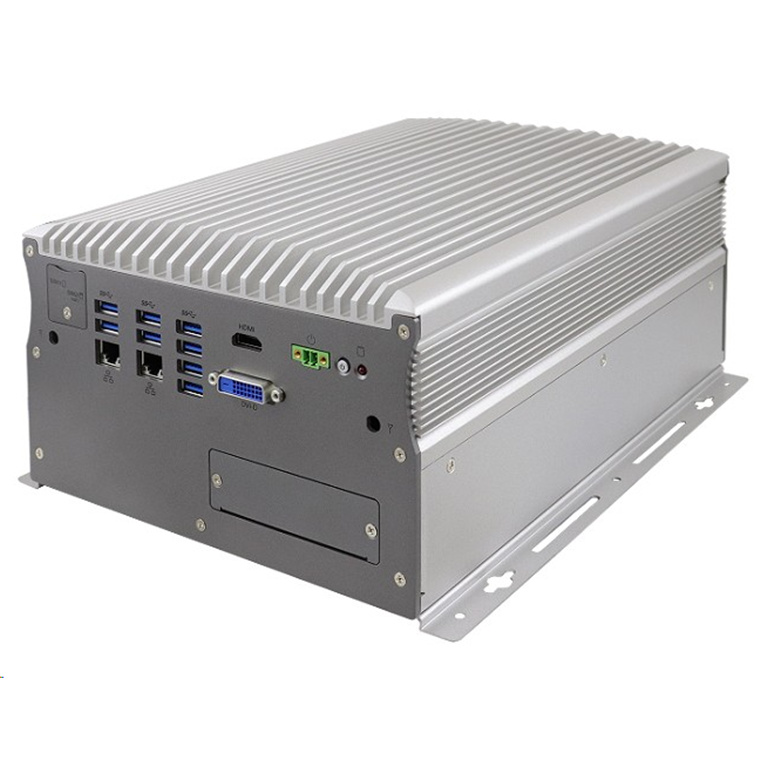

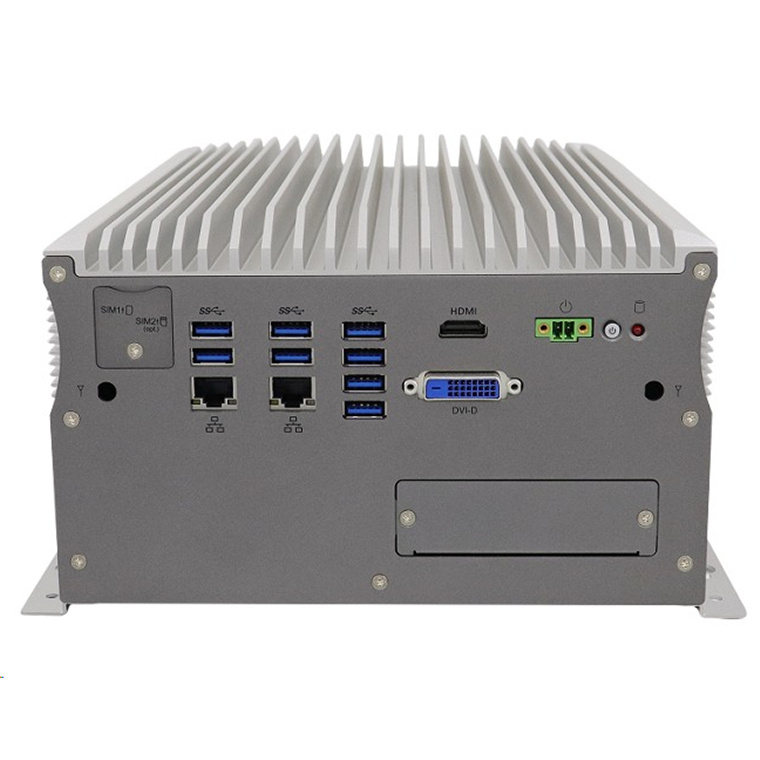

Rear Panel External I/O

1x DVI-D + HDMI(1.4)
1x Audio jack for MIC-in / Line-out
4x USB3.1 ports
2x Antenna holes
2x RJ45 Gigabit Ethernet port + Dual USB3.1 stack ports
1x Red HDD LED
1x power button with Green LED indicator
1x 2-pin terminal block
2x SIM Card (AMI231AF-P only supports 1x SIM Card)

Expansion Slots

IP211/IP212/IP213

Storage / M.2

2x 2.5'' HDD/SSD
1x M.2 (B-KEY Supports USB2.0 for 4G/LTE)
1x M.2 (E-KEY Supports PCIe + USB2.0 for CNVi)
1x M.2 (M-KEY Supports PCIe(4x) + SATA for NVMe SSD)

Mounting

Desktop & wall mount

Weight

4.9 kg

Dimensions

210mm(W) x 285mm(D) x 129mm(H)

Operating Temperature

-20°C to 70°C (-4°F~158°F) (for 35W CPU)

Storage Temperature

-20°C~80°C (-4°F~176°F)

Relative Humidity

5%~90% @ 45°C (non-condensing)

Vibration

Operating : 3Grms / 5~500Hz

Shock

Operating : 20G / 11ms
Non-operating : 40G / 11ms

Certification

CE/ FCC ClassA/ LVD

Manufacturer Part No:
AMI232AFM-F
Brand:
Product Type:
Core-i3 9300TvPro, 8G
UPC
-
Product Family:
Embedded Computing
Shipping Weight:
2.8 kg
PB Part No:
WKSIBA232A
Product Model:
AMI232AFM-F
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
