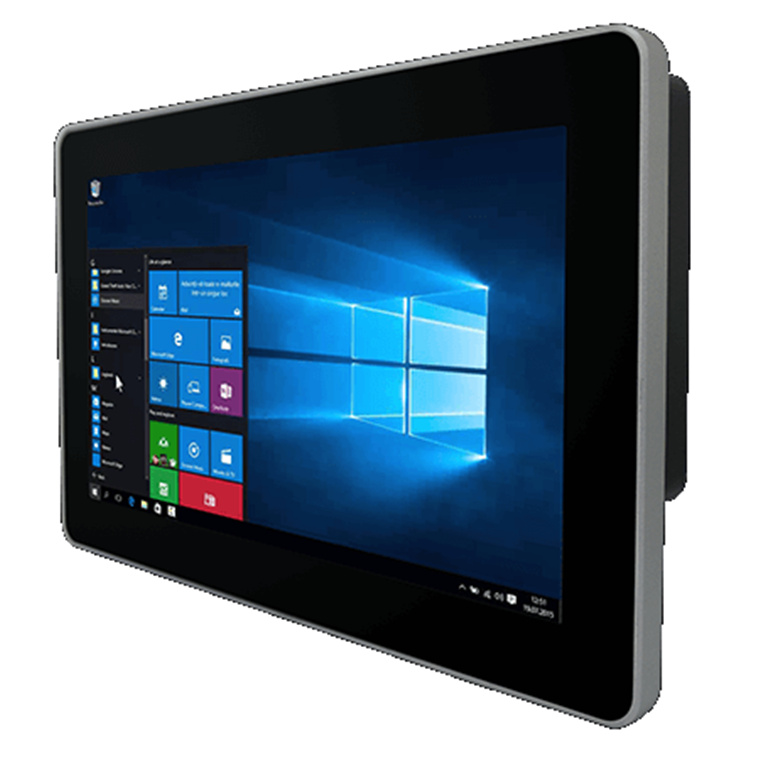

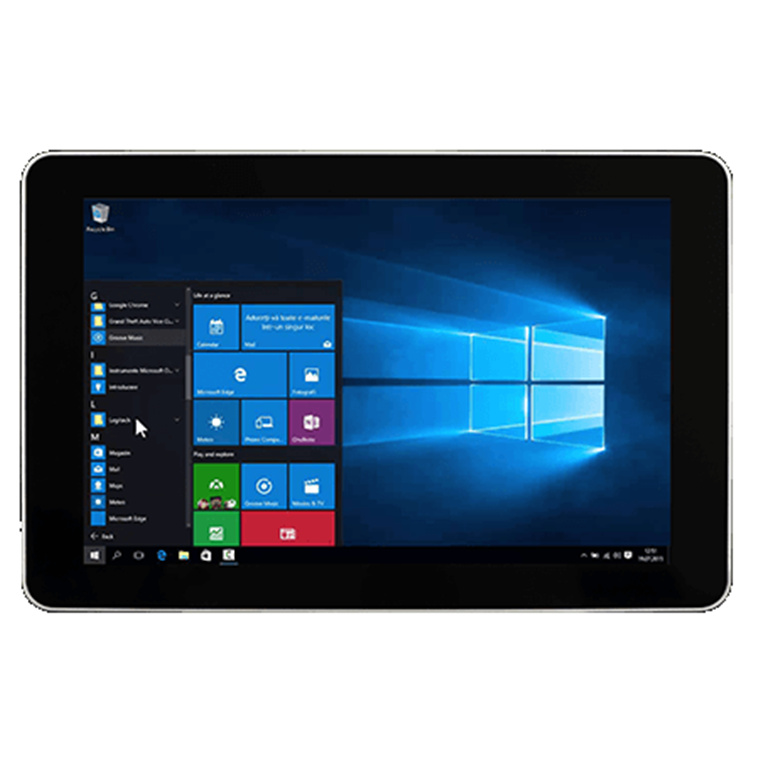

Winmate Panel PC W10IB3S-PCH2-POE Intel, 4G, 128GB, WIFI 10.1" 1280x800, 350nits, PCAP , with intel Celeron N2930 1.83GHz, With POE Function, Windows IOT

PB Tech price
PB Tech price
NZD $ 1,873 .45
$ 1,873 .45

Out of stock

Winmate Panel PC W10IB3S-PCH2-POE Intel, 4G, 128GB, WIFI 10.1" 1280x800, 350nits, PCAP , with intel Celeron N2930 1.83GHz, With POE Function, Windows IOT

  • Brand: Winmate
  • MPN: 98C010A000FN
  • Part #: WKSWMA101BW
  • UPC:
PB Tech price
NZD $ 1,873 .45 $ 1,873 .45


Delivery: Out of stock
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info

Features

Power over Ethernet (Data and Power connections in a single cable)

The hardware installation becomes easier with Power over Ethernet. PoE reduces the number of cables needed for the connection of various devices. This infrastructure allows for centralized power management; therefore, it is a cost-effective solution for access control, home, and industrial automation.

Stylish Design

Winmate's S-series HMIis 35% thinner than a traditional Panel PC. With the slim design, it has an aesthetically pleasing look that fits modern interiors and exteriors. Its true flat surface is not only for a stylish look but easy to maintain and clean. No more clogged dust on the edges.

P-Cap Touch (Resistant to scratches)

The glass cover lens provides great protection from scratches. P-Cap Touch supports 4-point multi-touch and can easily be controlled by fingers. This technology allows enjoying every touch and improving the convenience of using the device. Thus, it helps to enhance the overall customer experience.

Front IP65 (Water and Dust Proof)

Don't worry whether somebody split the coffee over S-Series HMI, or if the raindrops reach the device! This HMI is sealed with IP65 on the front side and is protected against possible damages from outer dust and water splash.

- 10.1" 1280x 800 Resolution with Projected Capacitive Multi-Touch (PCAP)
- Low-Power System with Intel® Celeron® N2930 Processor
- Fanless Cooling System and Ultra-low Power Consumption
- Dual Gigabit Ethernet
- Support PoE function
- Front IP65 Water and Dust Proof
- Optional HF RFID Reader
- Optional 2MP Front Camera
- Room Booking Schedule, Access Control, Room Information Display

Specifications

Display

Size

10.1 inches

Touch / Glass

Projected Capacitive Multi Touch Screen

Resolution

1280x800

Panel Brightness

350 nits
1000 nits(Optional)

Contrast Ratio

800:1

View Angles

85,85,85,85

Active Area

216.96 x135.6 mm

System Specification

Processor

Intel® Celeron® N2930 (2M Cache, up to 2.16 GHz)

Memory

1 x SO-DIMM, DDR3L 1600 MHz, 4GB

Storage

1 x M.2 2242 B-key SSD 128GB.

Ethernet controller

2 x Intel® Ethernet Controller

Operating System

Windows 10 IoT Enterprise (Optional)
Linux Ubuntu 20.04 (Optional)

WLAN

Support (Optional)

BT

Support (Optional)

RFID

HF RFID Reader 13.56 MHz (Optional)

Mechanical

Dimension

264.57 x 173.29 x 35.7 mm

Cut out

250x159mm

Mounting

Panel mount
VESA Mount

Enclosure

Metal Housing

Cooling System

Fanless design

Environment

Operating Humidity

10% to 90% (non-condensing)

Operating Temperature

0~50°C

Storage Temperature

-20~60°C

IP rating

Front IP65

Certification

Certification

CE, FCC

IO Ports

USB Port

1 x USB3.2 Gen1x1 (Type-A)
1 x USB2.0 (Type-A)

Serial Port

1 x RS232/422/485 (Default RS232)

LAN

2 x Giga LAN RJ45 Connector, One with PoE(PD, 802.3at)(Optional)

Audio

1 x Speaker

Expansion Port

2 x M.2 slot(1 for WiFi, 1 for SSD)

Power Input

1 x 12V DC, 3-Pin Terminal Block

Power

Power Rating

12V DC
10~60V (Optional)

Adapter

12V 50W

POE

PoE (PD): follows IEEE 802.3at (25 W)

Manufacturer Part No:
98C010A000FN
Brand:
Product Type:
Intel, 4G, 128GB, WIFI
UPC
-
Product Family:
Panel PC
Shipping Weight:
1 kg
PB Part No:
WKSWMA101BW
Product Model:
W10IB3S-PCH2-POE
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
