Alphacool Eisbecher Aurora D5/VPP655 Acetal/Glass Reservoir - 250mm Height, Pump not included
- Brand: Alphacool
- MPN: 15379
- Part #: WTRAPH15379

Product URL: https://www.pbtech.com/pacific/product/WTRAPH15379/Alphacool-Eisbecher-Aurora-D5VPP655-AcetalGlass-Re
Features
The Alphacool Eisbecher Aurora expansion tank uses a real glass tube instead of the usual acrylic tubes. The embedded 5V digital RGB LED ring and the new design ensure a unique and elegant look. Of course, the Lighttower water effect is also on board. It can be mounted using feet or directly on a 120 or 140mm fan slot or directly on a radiator.

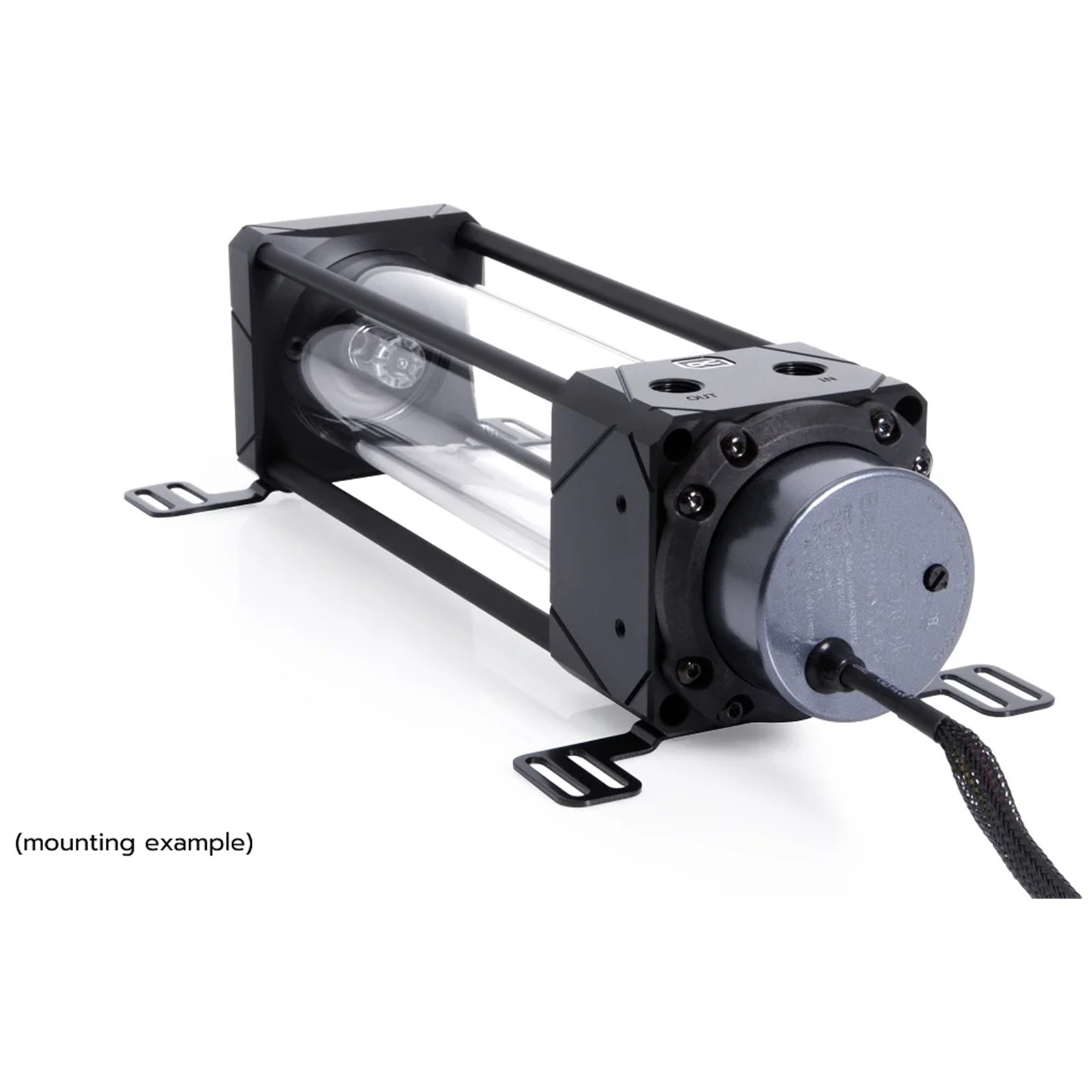

Extensive assembly options
There are two basic mounting options that can be used in a variety of ways. The Eisbecher Aurora glass expansion tank comes with feet for mounting on the bottom of the case, for example. The scope of delivery also includes mounting frames with which the Eisbecher Aurora can be mounted on any 120 or 140 mm fan slot. This of course also makes it possible to mount it directly on the radiator or on the radiator's fans.

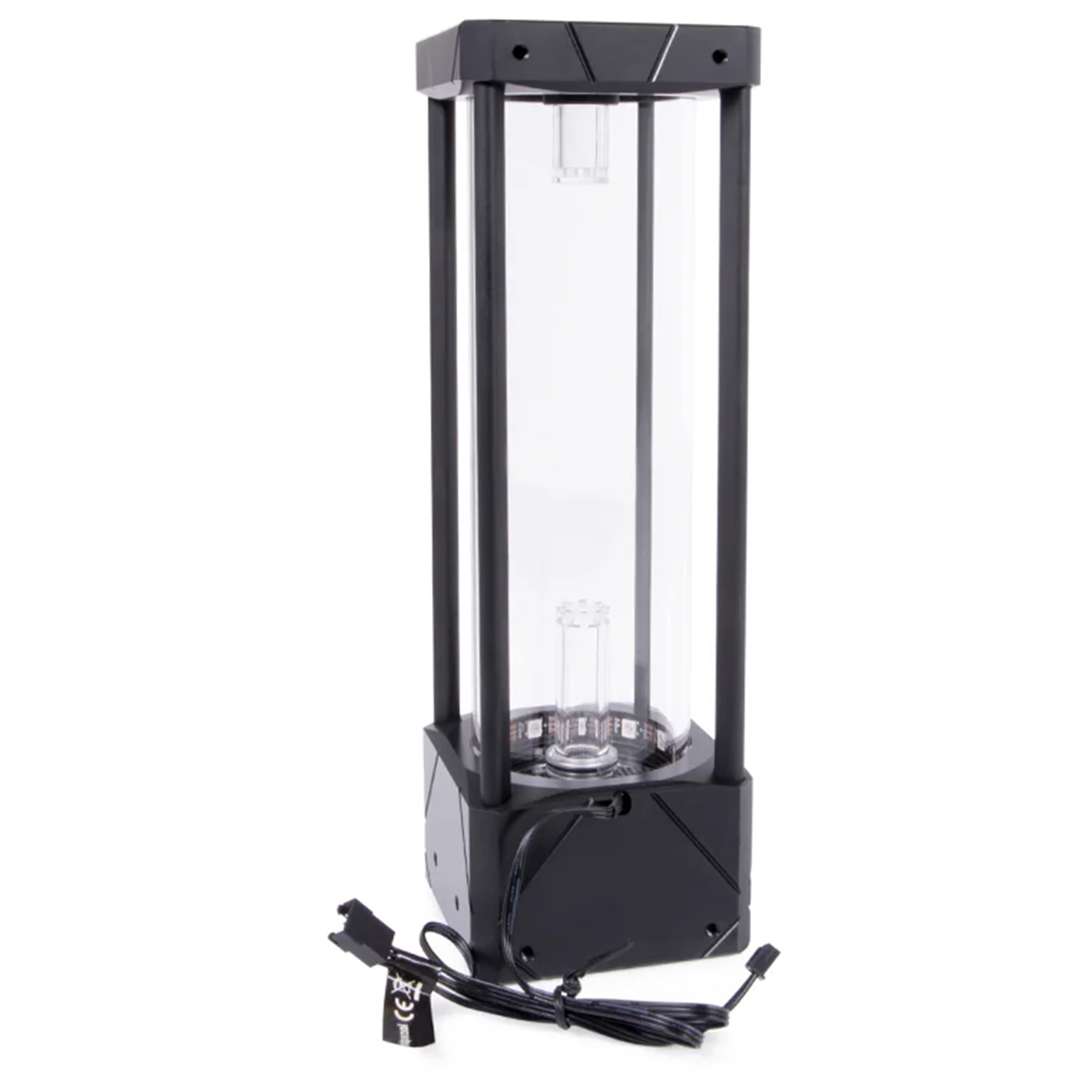

Digital RGB lighting
A total of 12 aRGB LEDs illuminate the glass tube of the expansion tank. They are arranged in a ring at the lower end of the glass tube and cannot be seen from the outside. The illumination is particularly strong at the bottom and decreases gradually towards the top. In combination with the Lighttower water effect, a very special type of illumination is achieved. In particular through the reflections in the real glass. The digital RGB LEDs are connected via a 3-pin JST connector, as with all Alphacool products. Other Alphacool digital RGB products can be connected directly via the Y adapter.
Lighttower water effect
A special water effect is created in the Aurora ice cream bowl via the riser tubes. If you do not fill the expansion tank beyond the upper edge of the riser tube, you get a kind of fountain effect. The water is pushed out of the sides of the riser tube and sprayed against the glass tube. The effect is stronger or weaker depending on the flow of the circuit. There is one riser tube with this effect at the lower inlet and one at the upper inlet.
Pump?
This Aurora glass ice cream bowl is compatible with all original D5 Xylem/Lowara pumps and all Alphacool VPP pumps.
Specifications
Dimensions (L x W x H)
77x77x242mm
Height including stand
269mm / 288mm
Weight
755g
Type of lighting
5V digital addressable LEDs (0.3A)
Number of LEDs
12
Housing material
Acetal
Material tube
Glass
Material bridges
aluminum
Connections
1x G1/4" internal thread IN / 4x G1/4" internal thread OUT
Cable length
40cm
Connection Digital aRGB
3-pin JST + 3-pin 5V
Maximum working temperature
60°C
Compatibility
- Alphacool VPP / Laing D5 pumps
