Alphacool Core Flat Reservoir ARGB 360mm Right with VPP Apex Pump

PB Tech price

NZD $ 399 .13

$ 399 .13

Alphacool Core Flat Reservoir ARGB 360mm Right with VPP Apex Pump

High-quality material selection & brilliant lighting!

Brand: Alphacool
MPN: 15488
Part #: WTRAPH15488
UPC:

PB Tech price

NZD $ 399 .13

Hurry, only 4 units left!

In stock

Delivery: Order now and it ships tomorrow

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Alphacool
MPN: 15488
Part #: WTRAPH15488
UPC:

Be the first to review this product

Radiator Size

240mm 360mm

Fan Size

Colour

Number of Fans

CPU Air Cooler Height

LED Colour

Reversed Fan Blade

Sound Level (Roughly)

Adjustable

View full specs

Returns & Warranty Bulk Quote Print Page

Features

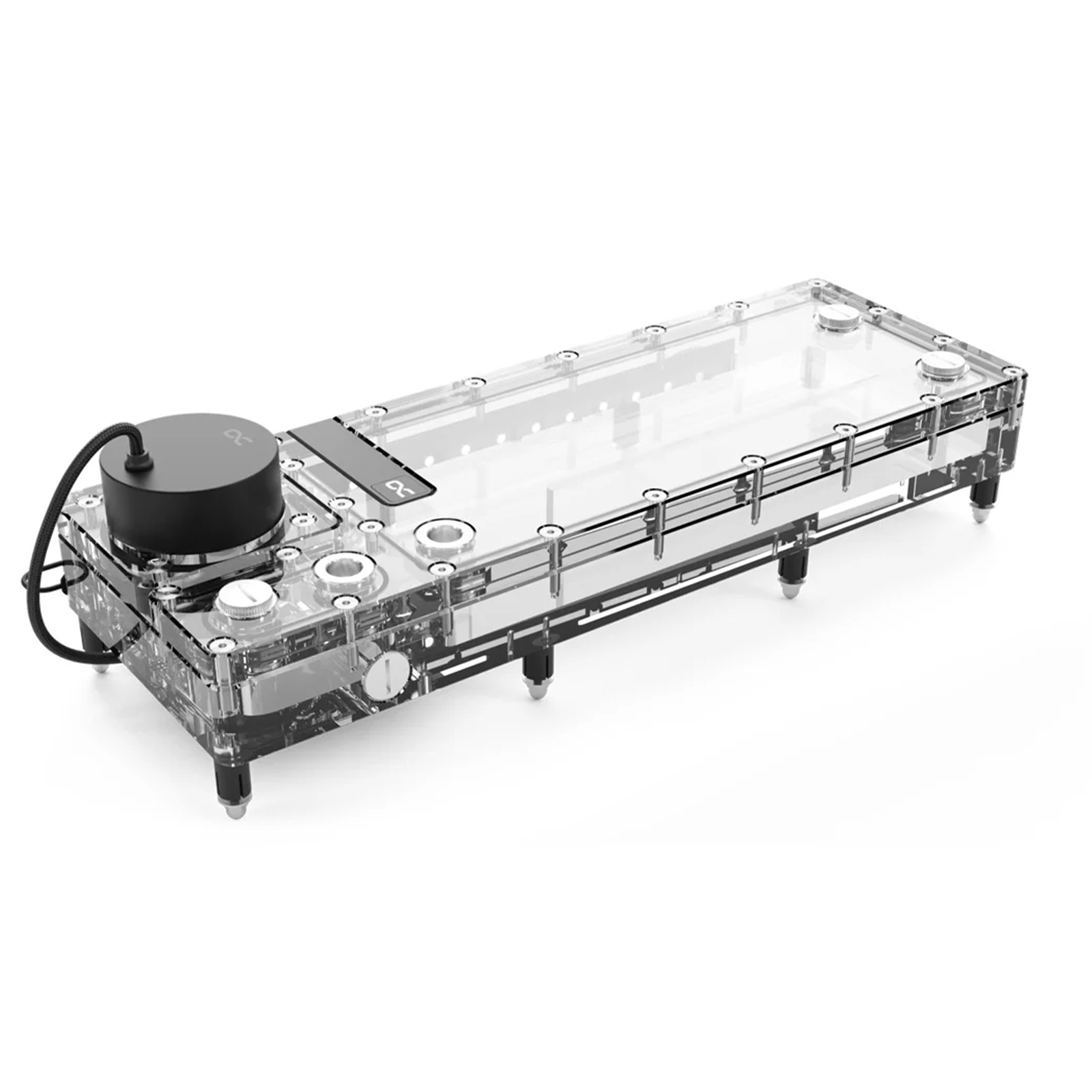

The Alphacool Core Flat Reservoir not only looks sleek with its aRGB lighting, but also offers flexibility with a total of 5 connections. The reservoir is made entirely of acrylic. Due to its flat design, the Core Flat Reservoir also fits in small cases. A VPP Pump is already pre-mounted.

Core Design

A key element of Alphacool's Core Design series are the chrome-plated G1/4" connections made of brass. In the Core Flat Reservoir, the connections are recessed rather than screwed into a thread, bypassing the problem of possible leaks due to cracking from the direct screwing of the connections into the acrylic. The connections are in two parts, fitted with an O-ring and counter each other when mounted in the acrylic. This not only ensures absolute sealing of each connection, but also allows for the clear and functional appearance of the Alphacool Core Design series.

Easy installation

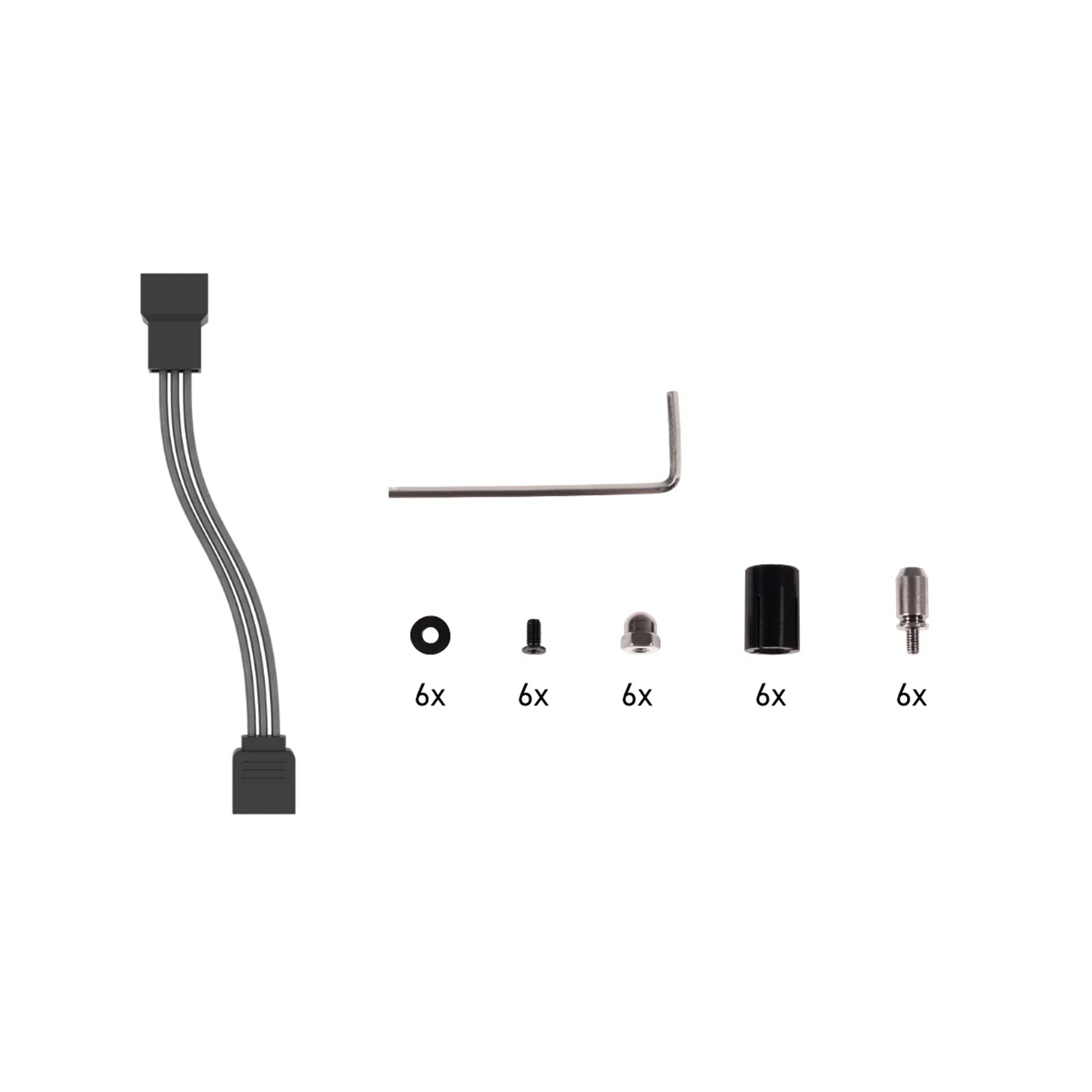

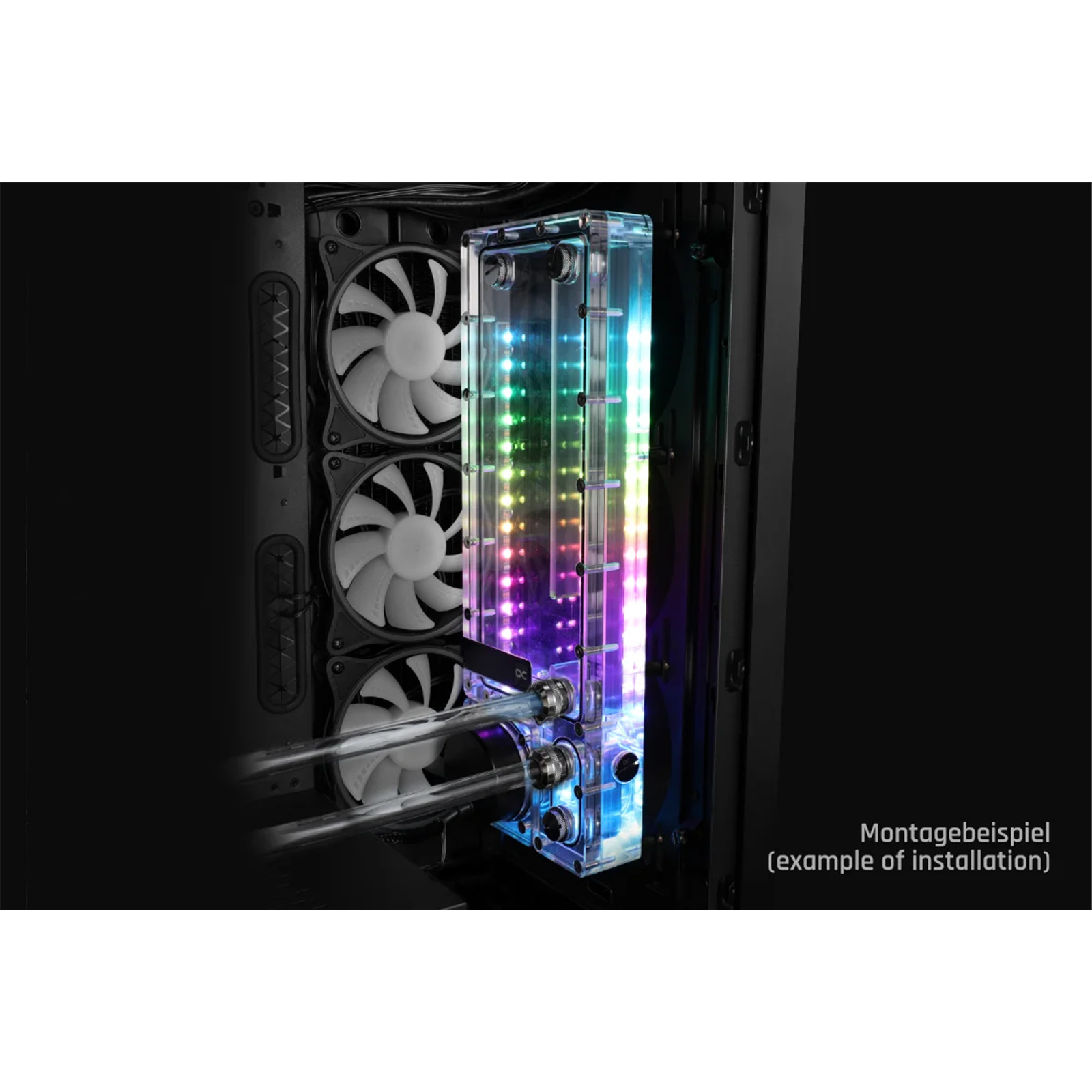

With the included Core Push Mounting kit, the Core Flat Reservoir can be mounted on the case panel or on a radiator. The metal pins are attached to the radiator or case panel and the matching female sleeves are attached to the Flat Reservoir (see manual). In the next installation step, the Flat Reservoir is simply and tool-free pushed onto the pins. Alphacool's Push-Mounting allows for a secure fit of the reservoir on the case panel or on the radiator and allows for easy disassembly for maintenance or expansion projects.

Gamechanger

The Core Flat Reservoir is offered as a 240mm or 360mm version, with right positioning of the pump top. This makes the reservoir ideal for custom water loops. An additional drain port is located on the side, allowing for easy and uncomplicated draining of the Flat Reservoir.

High-quality material selection & brilliant lighting

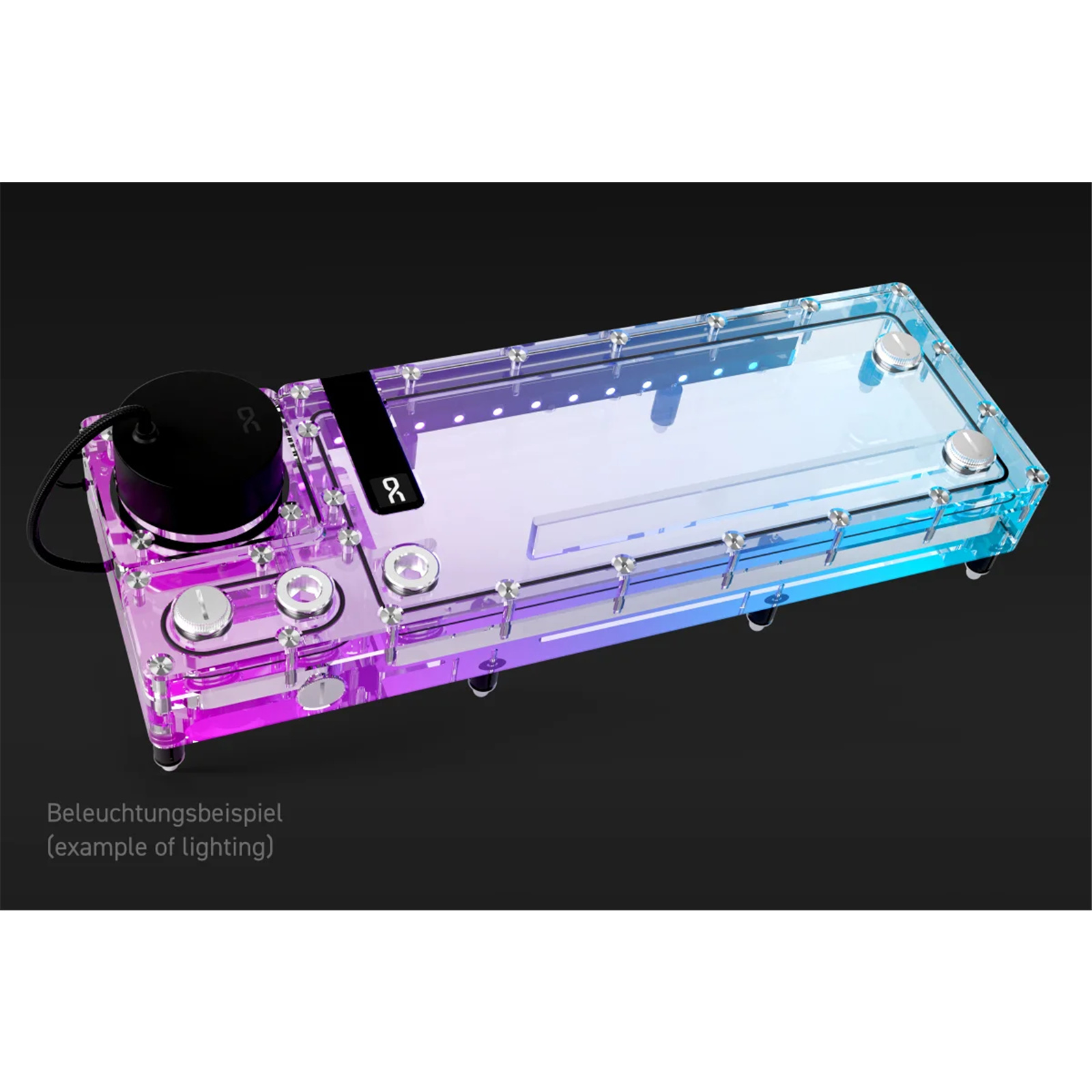

Alphacool's Core Flat Reservoir is made of high-quality acrylic glass, allowing for an unobstructed view of the coolant and brilliant illumination by the built-in digital addressable aRGB LEDs. The lighting can be controlled via a digital aRGB header on the motherboard or optionally through Alphacool's Aurora Eiscontrol aRGB controller (item number: 15360).

Specifications

Dimensions (L x W x H)

360.00 x 125.00 x 45.14mm

Volume (reservoir)

500ml

Material

Acryl

Pump compatibility

D5/VPP

Threads

5x G1/4" inner thread / 1x drain port

Maximum working temperature

60 °C

Pressure tested

0.8 Bar

Quantity digital aRGB LEDs

Voltage digital aRGB LEDs

Power connection digital aRGB LEDs

3-Pin JST + 3-Pin 5V

Color

transparent

Technical data pump

Dimensions (Flat Reservoir with pump) (L x W x H)

360.00 x 125.00 x 91.79mm

Material pump

synthetic material

Material pump cover

aluminium

Material axle

ceramics

Connections

4-Pin PWM | SATA

Rotational speed

2500 - 4500 RPM

Cable lengths

4-Pin PWM - 48cm | SATA - 48cm

Operating voltage

8-13V DC / 14W IP32

Starting voltage

12V DC

Maximum pumping head

4.25m

Maximum flow rate

340L/h

Maximum working temperature

60°C

Weight

276g

Color

black

Compatibility

- Can be mounted on the radiator or panel

Manufacturer Part No:

15488

Brand:

Alphacool

Product Type:

ARGB

UPC

Product Family:

Core

Shipping Weight:

0.2 kg

PB Part No:

WTRAPH15488

Product Model:

Flat Reservoir

Warranty: 60 months *
