RODE AI-1 USB Audio Interface Studio-Quality, 96 kHz / 24-Bit, Premium Discrete Headphone Amplifier, Includes Ableton Live Lite
RODE AI-1 USB Audio Interface Studio-Quality, 96 kHz / 24-Bit, Premium Discrete Headphone Amplifier, Includes Ableton Live Lite
- Brand: RODE
- MPN: AI1 USB AUDIO INTERFACE
- Part #: AUDROD00000
- UPC: 698813005130
What PB Tech customers are saying about this product...
See More Reviews
"Had this for a few years now, does the trick. Ensure you set the right sample rate.
Firmware update adds another 15 dB of gain with the same noise floor, which should address th ...view more"
"Build quality and looks are both excellent. Looks very nice in the desk. Gain range is 45ish db, and enough for most microphones but is a bit low for gain hungry dynamic mics like ...view more"
"Paired with a decent set of cans, this AI is the perfect addition for a home setup. Haven't had the time to test out microphone quality yet but my experience thus far has been grea ...view more"
COMBO DEALS: Frequently Bought Together
Dynamix C-XLR3-2 2M XLR 3-Pin Male to Female Balanced Audio Cable
$9.85
$9.85
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular DACs, Amplifiers & Sound Cards
RODE AI-1 USB Audio Interface Studio-Quality, 96 kHz / 24-Bit, Premium Discrete Headphone Amplifier, Includes Ableton Live Lite
- Brand: RODE
- MPN: AI1 USB AUDIO INTERFACE
- Part #: AUDROD00000
- UPC:698813005130
Product URL: https://www.pbtech.com/product/AUDROD00000/RODE-AI-1-USB-Audio-Interface-Studio-Quality-96-kH?qr=popular_related_products
Features

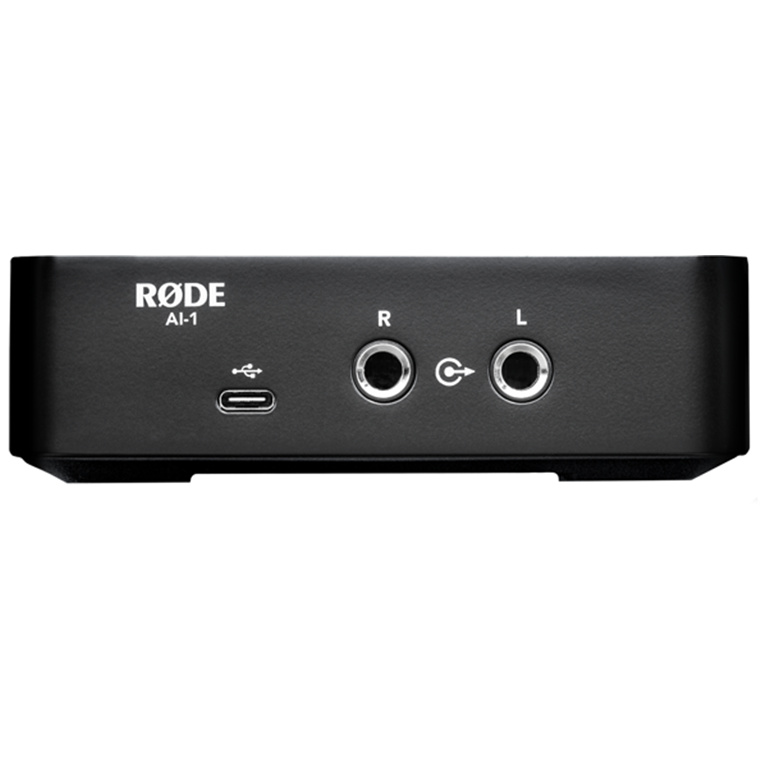

The rugged aluminum body is finished with a satin black finish and features large rubber feet, which prevents the desktop interface from sliding about when engaged. The class compliant AI-1 requires no drivers and features a USB-C connector, which not only connect to your computer, but also provides powers as well. The Rode AI-1 ships with a USB cable and a license for Ableton Live Lite.
- Desktop USB audio interface with low-noise Class-A discrete preamplifier
- Sampling rate of up to 96kHz/24-bit
- One combo XLR-1/4" combo input
- Two balanced 1/4" monitor outputs
- One discrete, studio-quality headphone output
- Phantom power for condenser microphones
- Zero-latency monitor mode
- USB bus powered
- USB Type-C connector for future proof operation
- Rugged body with Satin Black Finish
- Class compliant-no drivers required
- Includes Ableton Live Lite
- Includes USB cable
The perfect first step into home recording
R�DE's AI-1 Audio Interface is stacked with incredible technology to ensure recording on your computer is easy, versatile and sounds superb. The Complete Studio Kit comes with the AI-1, R�DE's peerless NT1 large diaphragm condenser microphone, a shock mount and all cables. Let's get started.
As for inputs: the AI-1's got both kinds.

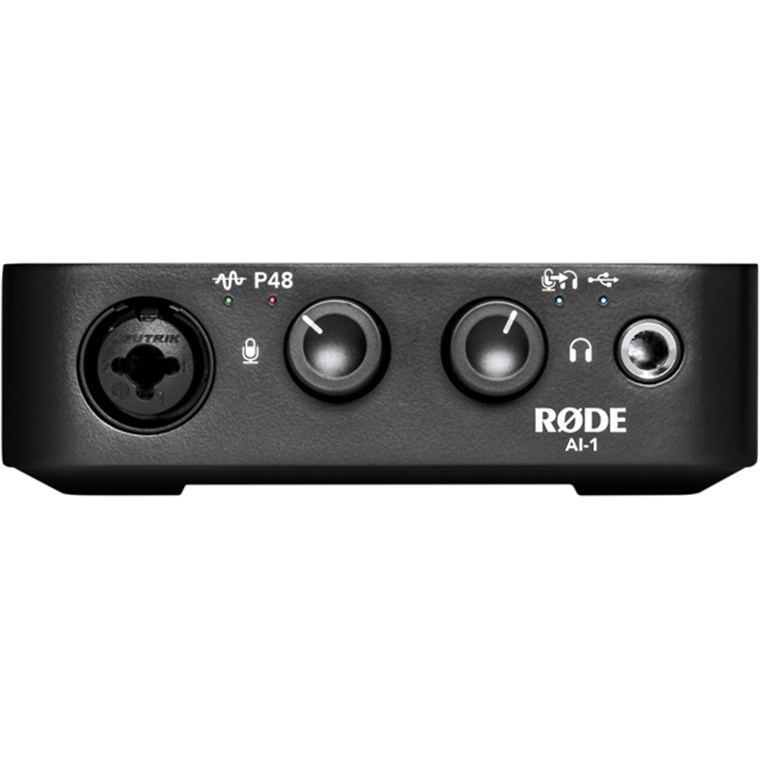

The AI-1's single input is a NeutrikTM Combo Jack, which takes both a 3-pole XLR (common to most microphones) and a quarter-inch jack common to most electric instruments like guitar, bass et al. Layering tracks is as easy as plug in, set level and go.
No cords barred (and other puns)
The Complete Studio Kit comes with the R�DE NT1 studio condenser microphone, a shock mount, pop-shield, R�DE XLR cable and USB-C/A cables to transfer data from your AI-1 to your computer, and power - including 48V phantom power to your AI-1.
Superior Headphone Amplifier onboard
Not only does the AI-1 deliver crystal clear audio to your computer software, but headphones have never sounded sweeter thanks to the discrete studio-quality headphone output and level control.
Specifications
AI-1 Audio Interface Specifications
Computer Connectivity
USB
Form Factor
Desktop
Simultaneous I/O
1 x 2
Number of Preamps
1
Phantom Power
Yes
Bit Depth
24-bit
Sample Rates
44.1 kHz
48 kHz
88.2 kHZ
96 kHz
Analog Inputs
1 x Neutrik XLR-1/4" combo
Analog Outputs
2 x 1/4" (impedance balanced)
1 x 1/4" (headphones)
Direct Monitor
Yes
USB
1 x USB Type C
Bus Powered
Yes
OS Requirements
Mac OS 10.10 or later
Windows 7 or later
Power
USB bus-powered
Depth
100mm total (with knobs)
chassis: 88mm
Width
124mm
Height
38mm
Weight
1lb 3.7oz (560g)
XLR/Mic Input
Dynamic Range
104dBA
Equivalent Input Noise @ Maximum Gain (Source Impedance 150 ohms, 20Hz-20kHz, A-weighted)
-128dBA
Frequency Response
(Measured after ADC) 20Hz - 20kHz better than ±1dB
Gain Range
0dB - >45dB
Gain Range
1.3k Ohms
Instrument Input
Dynamic Range
99dBA
Frequency Response (Measured after ADC)
20Hz - 20kHz better than ±1dB
Gain Range
0dB - >45dB
Input Impedance
900k Ohms
Monitor Outputs
Maximum Output Level
-6dBu
Frequency Response
20Hz - 20kHz better than ±1dB
Headphone
Max output power at 1% THD
32Ohms - >210mW
300Ohms - >390mW
