JimiLab JM-VL03 LTE Vehicle Tracker, LTE & GSM Network;Driving Behaviour, Analysis (Basic);Ignition Detection; 9-90V Rated Voltage; Remote Cut-off (Fuel/Power); Multiple Alerts;

Normally $106.86
Normally $106.86
You save $5
You save $5
AUD $ 101 .56
$ 101 .56
$101.56  +GST
$101.56

JimiLab JM-VL03 LTE Vehicle Tracker, LTE & GSM Network;Driving Behaviour, Analysis (Basic);Ignition Detection; 9-90V Rated Voltage; Remote Cut-off (Fuel/Power); Multiple Alerts;

  • Brand: JimiLab
  • MPN: JM-VL03
  • Part #: IPCJIM0003
  • UPC:
Normally $106.86
Normally $106.86
You save $5
You save $5
PB Tech price
AUD $ 101 .56 $ 101 .56


Delivery: Order now and it ships today
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$101.56  +GST
$101.56

Features

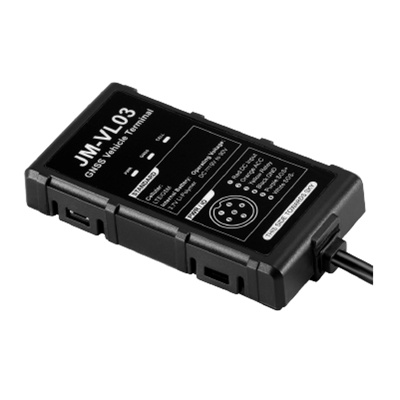

The JM-VL03 is a discreetly-installed 4G LTE GPS tracker designed for the management of vehicles of all types. The wide, 9-90V input voltage range is compatible with almost all vehicles, and the features of this device will prove valuable in managing mobile assets of all sorts. LTE communication with GSM (2G) fallback ensures a solid connection in almost all cases, and the advanced GPS antenna provides strong signal acquisition and more accurate positioning capability. In addition to these features, Driver Behavior Analysis (DBA) and the suite of event-triggered alerts will make the VL-03 a valuable part of your fleet management strategy.


Product is including the tracking platform of 10 years subscriptions. Contact [email protected], to register account for free softtware and APP.

Specifications

GNSS
Positioning system GPS+BDS+LBS
Frequency L1
Positioning accuracy <2.5m CEP
Tracking sensitivity -165dBm
Acquisition sensitivity -148dBm
TTFF (open sky) Avg. hot start =1sec
Avg. cold start =32sec
Cellular
Communication network LTE/GSM
Frequency JM-VL03E:
LTE-FDD: B1/B3/B5/B7/B8/B20
LTE-TDD: B34/B38/B39/B40/B41
GSM: GSM900/DCS1800

JM-VL03ME:
LTE-FDD: B1/B3/B7/B8/B20/B28
GSM: 850/900/1800/1900 MHz

JM-VL03MX:
LTE-FDD: B2/B4/B5/B7/B12/B13/B17
GSM: 850/900/1800/1900MHz

Power
Battery 60mAh/3.7V industrial-grade Li-Polymer battery
Input voltage 9-90VDC
Interface
LED indication GNSS (Blue), Cellular (Green), Power (Red)
SIM Micro-SIM
Data storage 64+128Mb
Digital inputs ACC
Digital outputs Relay
Physical specification
Dimensions 94.3 x 50.4 x 15.0mm
Weight 69.0g
Operating environment
Operating temperature -20? to +70?
IP rating IP65
Feature
Sensors Accelerometer
Scenarios Vehicle movement alert, Over-speed alert, Geo-fence, Low battery alert, Power-off alert
Driving behavior analysis Harsh acceleration, Harsh braking, Harsh cornering, Collision

* We reserve the right of final interpretation of this page. All information is for reference only and is subject to change without further notice.



Manufacturer Part No:
JM-VL03
Brand:
JimiLab
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.4 kg
PB Part No:
IPCJIM0003
Product Model:
JM-VL03
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
