AVS AHDSP4 Ultra Slim 1x4 HDMI Splitter with 4Kx2K & EDID Management

Normally $12.40
Normally $12.40
You save 8%
You save 8%
AUD $ 11 .40
$ 11 .40
$11.40  +GST
$11.40

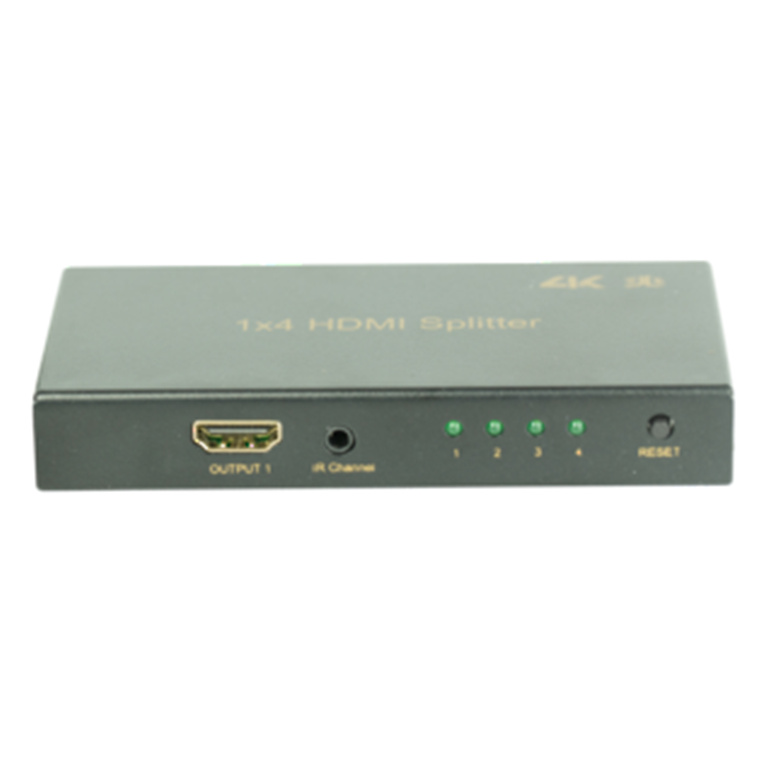

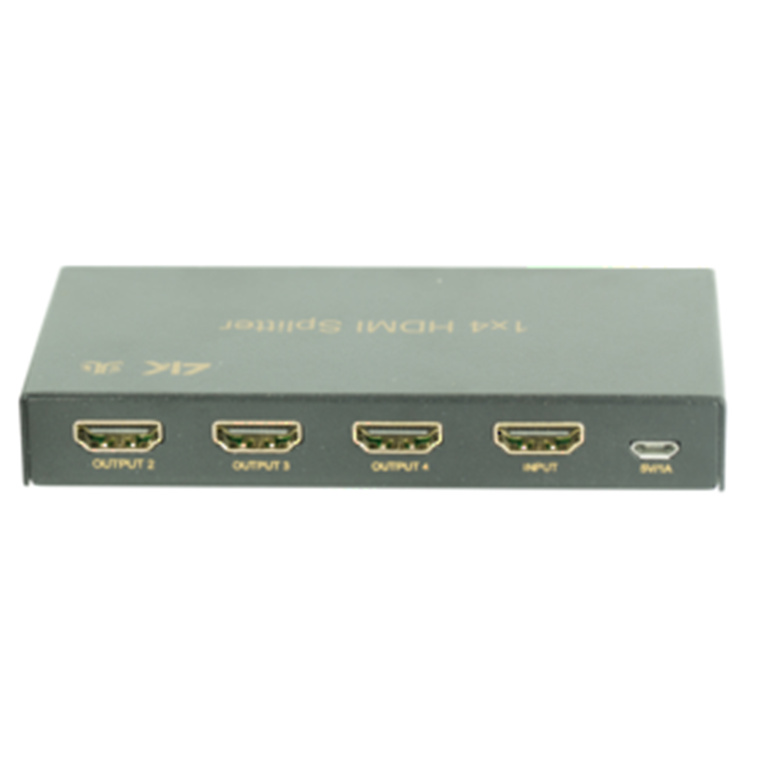

AVS AHDSP4 Ultra Slim 1x4 HDMI Splitter with 4Kx2K & EDID Management

  • Brand: AVS
  • MPN: AHDSP4
  • Part #: MOAAVS1012
  • UPC:
6
Normally $12.40
Normally $12.40
You save 8%
You save 8%
PB Tech price
AUD $ 11 .40 $ 11 .40
In stock
Delivery: Order now and it ships on 08 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$11.40  +GST
$11.40
Add To Compare
Stock Alerts
Click or hover over image to enlarge
  • Brand: AVS
  • MPN: AHDSP4
  • Part #: MOAAVS1012
  • UPC:

Maximum Supported Resolution

4096x2160

View full specs
Returns & Warranty Bulk Quote Print Page

What PB Tech customers are saying about this product...

See More Reviews

"It is quite good for two monitor. Good for business monitor and tv monitor. All system is fine and no problems."

By: DavidR3934 10/06/25
Verified Owner

"Works well, does what it is supposed to do."

G
By: Guest 25/10/21

"solid product with good performance"

G
By: Guest 05/08/21

COMBO DEALS: Frequently Bought Together

Create your own combo deal with any of the items below and the AVS AHDSP4 Ultra Slim 1x4 HDMI Splitter with 4Kx2K...
AVS AHDSP4 Ultra Slim 1x4 HDMI Splitter with 4Kx2K & EDID Management
Dynamix C-HDMIHSE-0 10Gbps High-Speed Slimline HDMI Cable - with Ethernet - 50cm Max Res 4K2K 24/30Hz (3840x2160) - 8 Audio Channels - 8bit Colour Depth - Supports CEC, 3D, ARC
Total:
AUD $ 16 .52
AUD $ 16 .52
Dynamix C-HDMIHSE-0 10Gbps High-Speed Slimline HDMI Cable - with Ethernet - 50cm Max Res 4K2K 24/30Hz (3840x2160) - 8 Audio Channels - 8bit Colour Depth - Supports CEC, 3D, ARC
Dynamix C-HDMIHSE-0 10Gbps High-Speed Slimline HDMI Cable - with Ethernet - 50cm Max Res 4K2K 24/30Hz (3840x2160) - 8 Audio Channels - 8bit Colour Depth - Supports CEC, 3D, ARC

Dynamix C-HDMIHSE-0 10Gbps High-Speed Slimline HDMI Cable - with Ethernet - 50cm Max Res 4K2K 24...

Ships on 08 Sep
AUD

$5.12

$5.12

You save 11% You save 11%

Features

AVS AHDSP4

Ultra Slim 1x4 HDMI Splitter with 4Kx2K and EDID Management




The perfect solution for anyone who needs to send one source of digital high definition video to multiple displays.

Features:

- HDMI, HDCP 1.2 and DVI compliant
- Support full 3D pass-through
- Support 4k x 2k high resolution
- Super IR control system, IR transport channel can be forward or backward per your installation
- Support CEC bypass
- External and internal EDID settings


Specifications:

Input Port: 1x HDMI(Female connector), 1x USB
Output Port: 4x HDMI(Female connector), 1x IR Channel
Bandwidth: 10.2Gbps
Output resolution: 480i~1080P@50/60,1080P@24/50/60, VGA~UXGA
Operating Temperature: -15C~55C/5°F~131°F
Deep Colour: 36bit
Chassis: Metal Shell
Dimensions: 120mm(L)x60mm(W)x18mm(H)
Weight: 200g
Power Supply: DC 5V


Package Contents:

1 x HDMI Splitter Unit
1 x 3ft USB A to micro B cable
1 x USB power adaptor
1 x User Manual

Specifications

Input Port

HDMI(Female connector), 1x IR Channel

Bandwidth

10.2Gbps

Output resolution

480i~1080P @ 50/60,1080P @ 24/50/60, VGA~UXGA

Operating Temperature

-15C~55C/5°F~131°F

Deep Colour

36bit

Chassis

Metal Shell

Dimensions

120mm(L)x60mm(W)x18mm(H)

Weight

200g

Power Supply

DC 5V

Package Contents

1 x HDMI Splitter Unit
1 x 3ft USB A to micro B cable
1 x USB power adaptor
1 x User Manual

Manufacturer Part No:
AHDSP4
Brand:
AVS
Product Type:
HDMI Splitter
UPC
-
Product Family:
-
Shipping Weight:
0.35 kg
PB Part No:
MOAAVS1012
Product Model:
AHDSP4
Warranty: 12 months *
