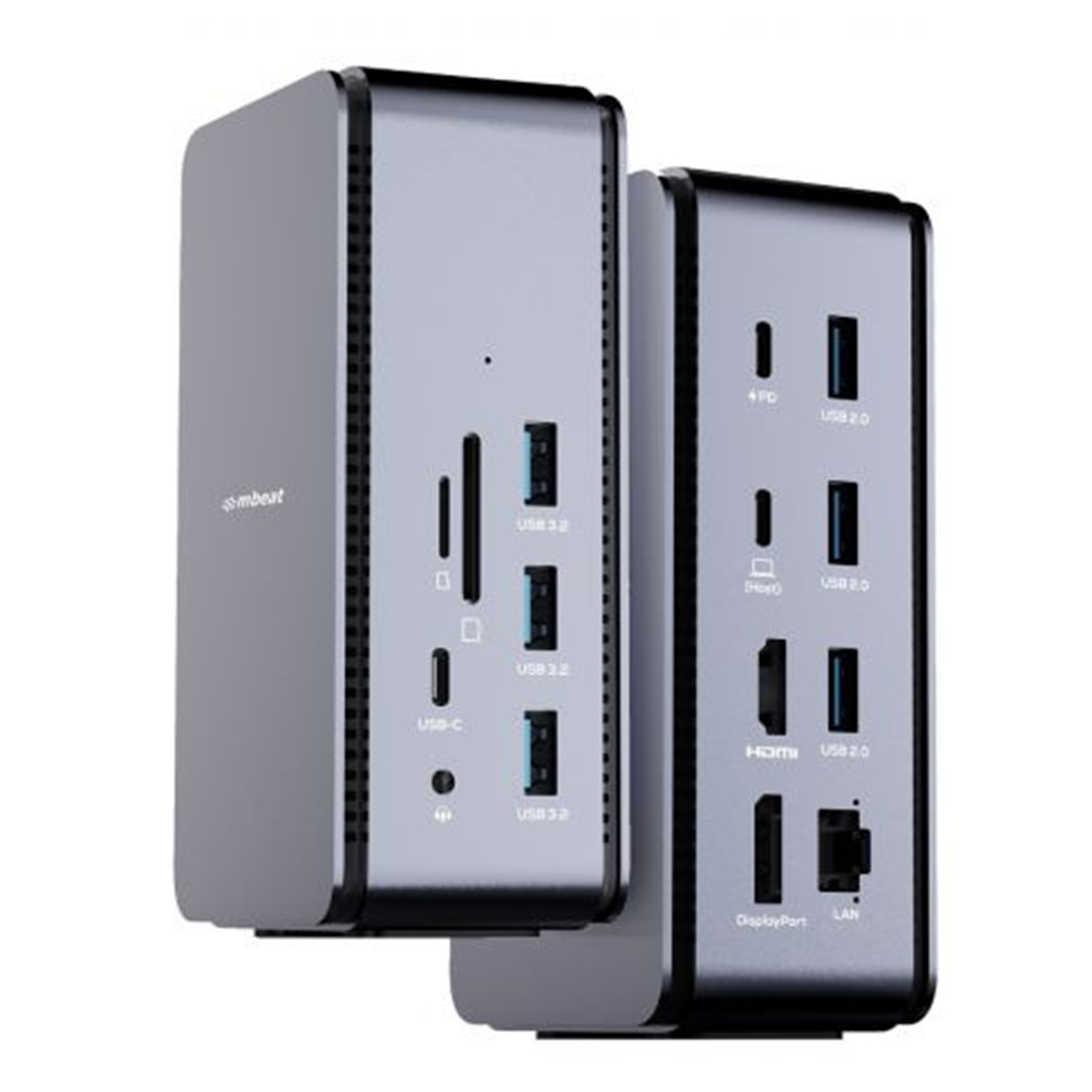

mbeat MB-U4DOCK-01 USB 4.0 14-in-1 Docking Station with 8K Video, 40Gbps, 100W USB-C PD, HDMI 2.1,DP,GigabitEthernet, 3.5 Aux, SD, TF, USB 3.2 10Gbps x 3, USB 2.0 x 3 - Space Grey
mbeat MB-U4DOCK-01 USB 4.0 14-in-1 Docking Station with 8K Video, 40Gbps, 100W USB-C PD, HDMI 2.1,DP,GigabitEthernet, 3.5 Aux, SD, TF, USB 3.2 10Gbps x 3, USB 2.0 x 3 - Space Grey
- Brand: mbeat
- MPN: MB-U4DOCK-01
- Part #: NBDMBE1055
- UPC:
- Brand: mbeat
- MPN: MB-U4DOCK-01
- Part #: NBDMBE1055
- UPC:
COMBO DEALS: Buy Together and SAVE!
Cruxtec 2m HDMI 2.0 Cable -- 18Gbps , 4K/60Hz
$6.02
$6.02
Huntkey SAC804 8-Outlet Surge Protected Powerboard with Dual 5V 2.1A USB charging Ports ideal for...
$25.33
$25.33
Loctek Eco Mount 10"-30" Dual Monitor Stand - Steel Tube - Black - VESA 75 & 100mm - Max Load 10KG -...
$68.69
$68.69
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular USB-C Docking Stations
mbeat MB-U4DOCK-01 USB 4.0 14-in-1 Docking Station with 8K Video, 40Gbps, 100W USB-C PD, HDMI 2.1,DP,GigabitEthernet, 3.5 Aux, SD, TF, USB 3.2 10Gbps x 3, USB 2.0 x 3 - Space Grey
- Brand: mbeat
- MPN: MB-U4DOCK-01
- Part #: NBDMBE1055
Product URL: https://www.pbtech.com/product/NBDMBE1055/mbeat-MB-U4DOCK-01-USB-40-14-in-1-Docking-Station?qr=similar-no-stock
Features
Introducing the mbeat 14-in-1 USB4 Docking Station, your ultimate utility for all your needs! With its enhanced performance of up to 40Gbps bandwidth, you can connect dual UHD displays, up to 7 USB devices, Gigabit LAN, SD/MicroSD 3.0 cards, Hi-Res audio with 100W PD Pass-through. Easily achieve crystal clear 8K resolution with compatible devices, and even fast charge up to 7.5W with BC 1.2. Get yours today and experience a whole new level of performance!
Ultimate Utility
Premiere 14-port all-in-one USB4 docking station with enhanced performance with up to 40Gbps bandwidth; connect dual UHD displays, up to 7 USB devices, Gigabit LAN, SD/MicroSD 3.0 cards, Hi-Res audio with 100W PD Pass-through.
High-Speed Data & Charge
Massive 7 port USB expansion with transfer rates up to 10Gbps (USB3.2/Type-C), supports BC 1.2 fast charging up to 7.5W, and legacy USB2.0 ports for keyboard/mice/other peripherals.
8K HD Video
Built-in HDMI 2.1 and DisplayPort 1.4, achieve crystal clear 8K resolution with compatible devices*. Easily achieve 4K dual-screen: Window™ supports MST or SST Mode 4K@60Hz*; Mac™ OS supports SST Mode 4K@60Hz. (*USB-C host must support DisplayPort 1.4)
Extensively Functional
Featuring dual display via HDMI 2.1 and DisplayPort 1.4, 100W PD pass-through, RJ45 1000Mbps, SD/MicroSD reader, 3�USB3.2 with BC 1.2 fast charge, 3�USB2.0, 1�Type-C and Hi-Res 3.5 AUX.
Specifications
Upstream Port
USB4 (Type-C form) × 1: 40Gbps
Downstream Port
USB Type-C 3.2 × 1: 10Gbps
USB3.2 Port × 3: 10Gbps, Supports BC1.2 Charging up to 7.5W
USB Type-C PD × 1: 100W Pass Through
USB2.0 Port × 3: 480Mbps
HDMI® 2.1 × 1: 8K@30Hz
DisplayPort™ 1.4 × 1: 8K@30Hz
RJ45 Port × 1: 10/100/1000Mbps
SD Card Reader × 1: SD 3.0, compatible with SDXC, SDHC and SD
MicroSD Card Reader × 1: MicroSD 3.0, compatible with MicroSDXC, MicroSDHC and MicroSD
Audio × 1: 3.5mm Aux In/Out, SPDIF-OUT supports 16/20/24-bit format and 44.1/48/88.2/96kHz Sample Rate
Display Configuration
Window™ supports MST or SST Mode 4K@60Hz; Mac™ OS supports SST Mode 4K@60Hz
USB4 Cable: 80cm × 1
Compatibility and Limitation
USB4 is backward compatible with all USB standards including Thunderbolt™ 3 and 4.
Product is compatible with Windows™ 7, 8, 10, 11 and Mac™ OS 10.12.
Windows™ OS supports MST, Mac™ OS only supports SST in USB-C Display Alt mode, MacBook™ (2020) with M1 CPU currently only supports 1 external monitor display.
Product does not include USB-C power supply.
Product and Package
Product Dimension
12.9cm × 6.95cm × 4.8cm
Product Weight
309g
Package Dimension
17.3cm × 15cm × 5.6cm
Package Weight
487g
