Features
IGP-0310, 3-Port Industrial Gigabit PoE PSE/PD Switch,802.3at PoE, 30W

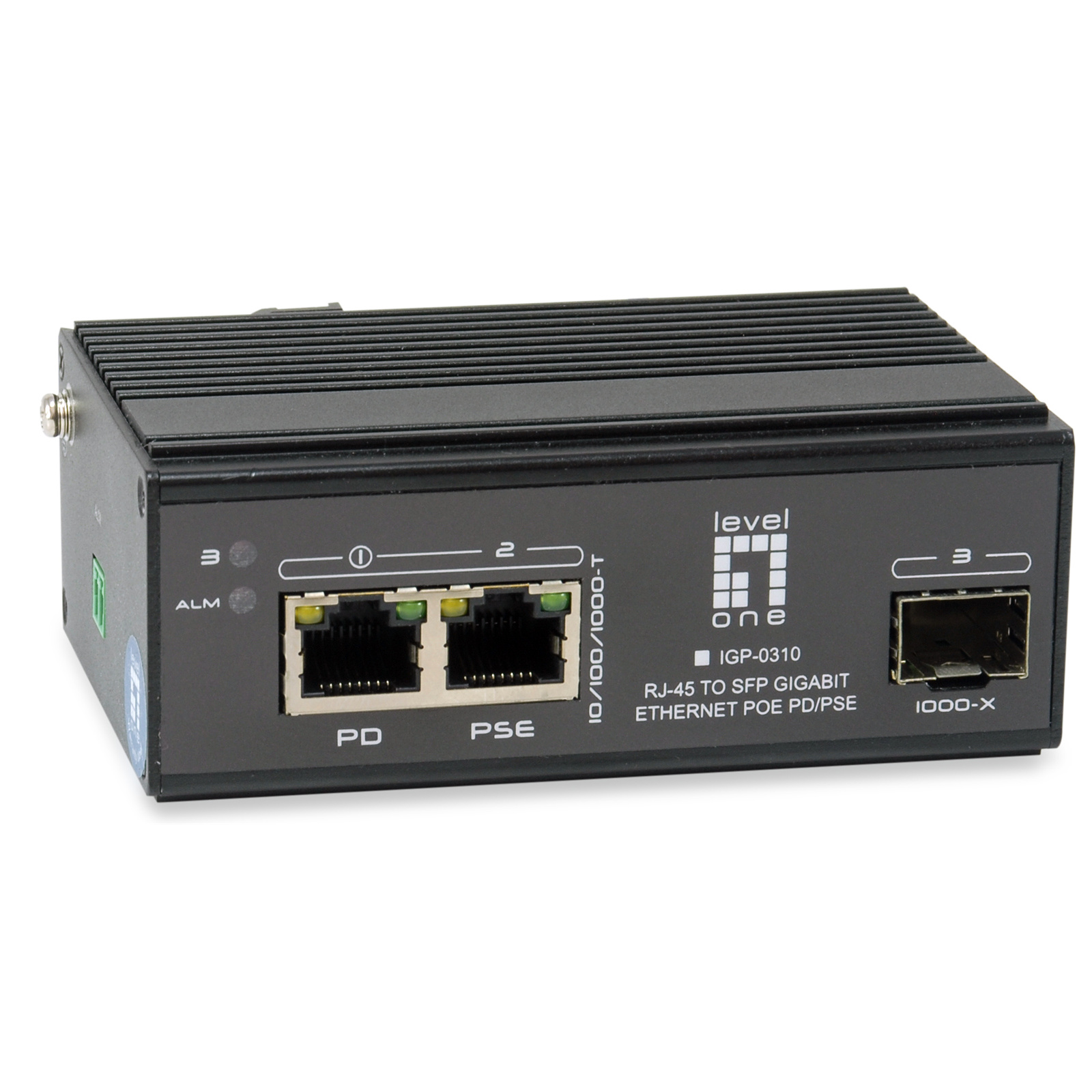

LevelOne IGP-0310 Industry Ethernet Switch provides 2 PoE ports 10/100/1000Base plus 1 port SFP to enable high speed network at mission-critical environment. With the industrial standard DIN-rail mount; this switch can be easily installed in the cabinet, plus the clearly visible status LEDs provide simple monitoring of port link activity. Moreover, the SFP slots support pluggable modules that enabling you to choose from a variety of transceivers. This switch is Power Sourcing Equipment (PSE), and it is fully complied with IEEE802.3af/at PoE standard at maximum 30W. It helps to save infrastructure wiring costs dramatically by eliminating electric wiring and less UPS needed. Also, it is compatible with IEEE802.3 af/at standard PD devices.
- 1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX

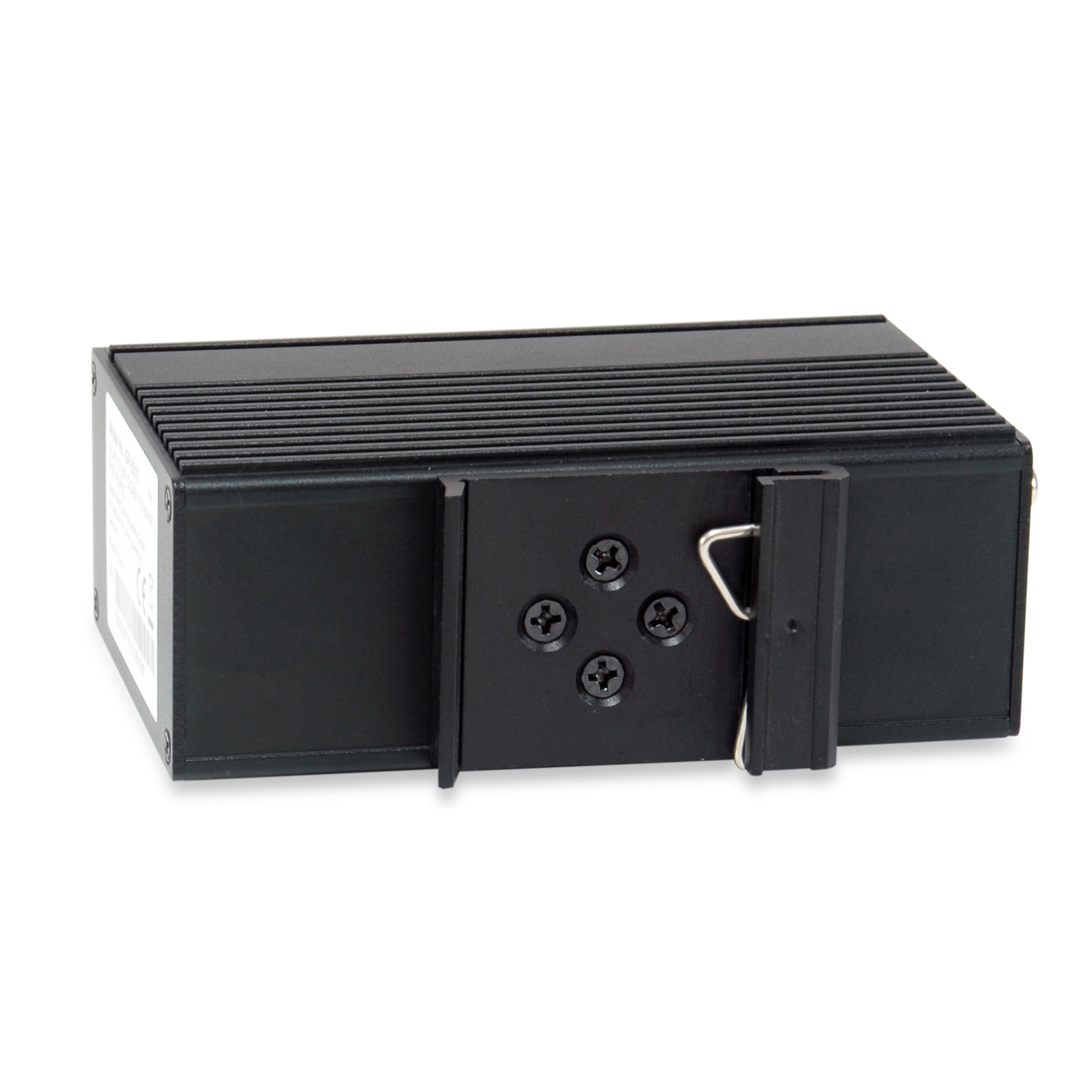

- Provides DIN-rail, wall or desktop mounting
- IP30 metal case
- 6KV surge protection level on each port
- ESD and surge protection
Specifications
General
Brand
LevelOne
Manufacturer Part Number
IGP-0310
Color
Black
Weight
0.35 kg
Dimensions (W x D x H)
101 x 65 x 36 mm
Port Configuration
Gigabit RJ45
2
Gigabit SFP
100/1000 Mbps
802.3af/at PoE
1
System specifications
Power supply
PoE
Data Rate
1Gbps
Power supply included
No
Power consumption
<5W
Standard
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 10Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3z 1000Base-X Gigabit Ethernet
IEEE802.3x Flow Control and Back Pressure,
IEEE802.3af for POE
IEEE802.3at for POE+
Pin assignment and polarity
1/2 (+), 3/6 (-)
Mount
DIN rail mount
Indicators
Uplink 3: Green LEDs indicate Link/Act
Downlink 1~2: On RJ45 green LEDs indicate Link/Act
Yellow LEDs indicate PoE
Packet buffer
1M
Backplane (Gbps)
6
Miscellaneous
Grade
Industrial
PoE Supported
Yes
Manageable
No
Fanless
Yes
Concurrent ports
Total 3.00
PoE Power Budget
Total 30.00
Others
Approval and Compliance
CE/FCC
Operating humidity
10% RH ~ 90% RH
Operating temperature
-40°C ~ 75°C
Storage humidity
0% RH ~ 95% RH
Storage temperature
-40°C ~ 85°C
Package Contents
IGP-0310
Quick Installation Guide
