Ubiquiti U-POE 15W Gigabit PoE Adapter (48V DC / 0.32A)
Ubiquiti U-POE 15W Gigabit PoE Adapter (48V DC / 0.32A)
- Brand: Ubiquiti
- MPN: U-PoE
- Part #: NETUBI10911
- UPC: 817882025003
- Brand: Ubiquiti
- MPN: U-PoE
- Part #: NETUBI10911
- UPC: 817882025003
COMBO DEALS: Frequently Bought Together


Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular POE Splitters / Injectors





Ubiquiti U-POE 15W Gigabit PoE Adapter (48V DC / 0.32A)
- Brand: Ubiquiti
- MPN: U-PoE
- Part #: NETUBI10911
- UPC:817882025003

Product URL: https://www.pbtech.com/product/NETUBI10911/Ubiquiti-U-POE-15W-Gigabit-PoE-Adapter-48V-DC--032?qr=popular_related_products
Features
PoE Adapter (15W)
An adapter that can power UniFi PoE devices, reduce dependency on PoE switch power, and provide a Gigabit LAN connection.
- Delivers up to 15W of PoE
- Surge, peak pulse, and overcurrent protection
- Contains RJ45 data input, AC cable with earth ground, and PoE output
- LED indicator for status monitoring
Specifications
Dimensions
86 x 46 x 33 mm (3.4 x 1.8 x 1.3")
Weight
100 g (3.5 oz)
Output voltage
48V DC @ 0.32A
LAN activity indicator
No
Gigabit LAN port
Yes
Remote reset capability
No
Reset button
No
Rated voltage
100-240V AC @ 50/60Hz
Input current
500mA max.
Inrush current
<100A peak at 25°C
Efficiency
84.25+%
Output ripple
200mV p-p
Switching frequency
65 kHz
Line regulation
= 3%
Load regulation
= 5%
2-pair powering
Pins 4, 5 (+) and 7, 8 (-)
4-pair powering
No

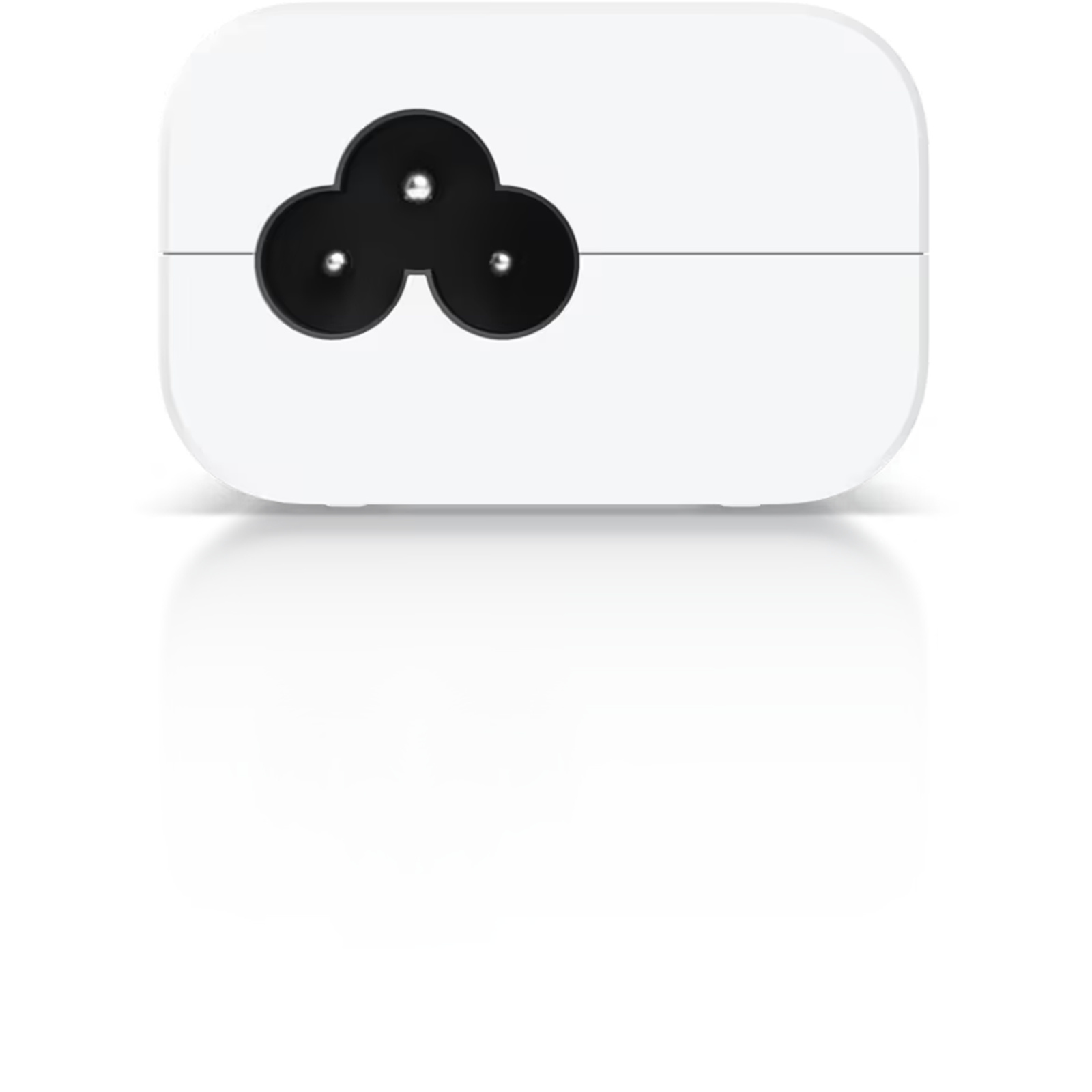

AC connector
IEC-320 C6
Data In / PoE
RJ45 shielded socket
Surge protection
Difference and common mode
Clamping protection
11V data, 60V power
Max. surge discharge
1500A (8/20 µs) power
Peak pulse current
36A (10/1000 µs) data
Shunt capacitance
<5 pF data
Response time
<1 ns
Ambient operating temperature
0 to 40° C (32 to 104° F)
Storage temperature
-30 to 70°C (-22 to 158° F)
Ambient operating humidity
10 to 95% noncondensing
Certifications
CE, FCC, IC, UL
Compatibility
UK-Ultra
U6-PLUS
U6-IW
U6-Mesh
U6-Pro
U6-Lite
UAP-AC-IW
UTP-Touch
UVC-G5-Dome-Ultra
UVC-G5-Turret-Ultra
UVC-G5-Pro
UVC-G5-Flex
UVC-G5-Bullet
UVC-G5-Dome
UVC-AI-Pro
UVC-AI-DSLR
UVC-AI-Bullet
UVC-AI-360
UVC-AI-Theta-Pro
UVC-AI-Theta
UVC-AI-Theta-Hub
UVC-G4 Doorbell Pro PoE Kit
UVC-G4-DOME
UVC-G4-Bullet
UVC-G4-Pro
UVC-G3-FLEX
