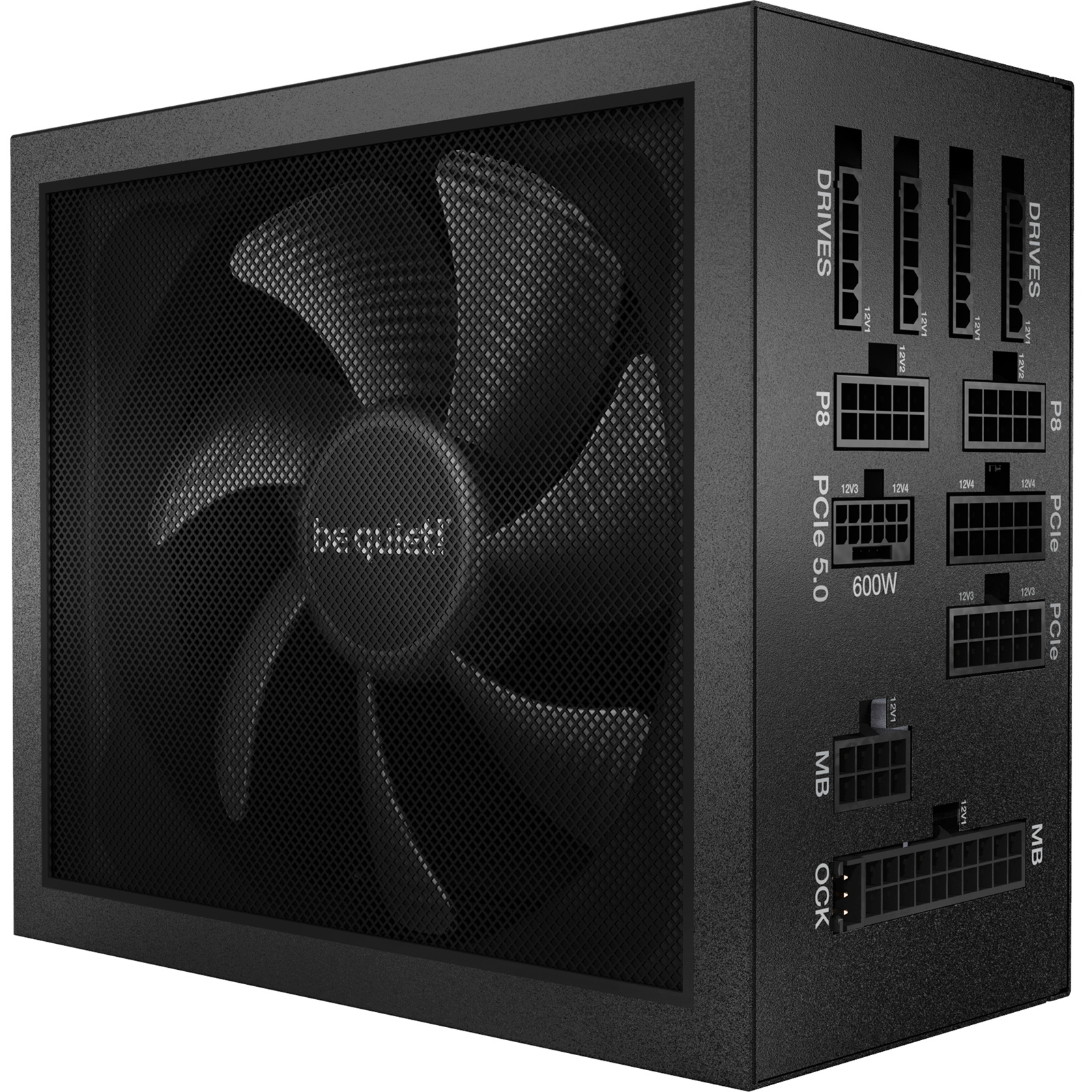

be quiet Dark Power 13 1000W 80Plus Titanium ATX 3.0 Power Supply
full support for PCIe 5.0 GPUs and GPUs, 10 Years Warranty
Out of stock
be quiet Dark Power 13 1000W 80Plus Titanium ATX 3.0 Power Supply
full support for PCIe 5.0 GPUs and GPUs, 10 Years Warranty
- Brand: be quiet
- MPN: BN702
- Part #: PSUBQT900400
- UPC:
Product is out of stock. View similar products in-stock at PB Tech
What PB Tech customers are saying about this product...
See More Reviews"Had this power supply going on 2 years now, hasn't skipped a ...view more"

Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Desktop Power Supplies





be quiet Dark Power 13 1000W 80Plus Titanium ATX 3.0 Power Supply full support for PCIe 5.0 GPUs and GPUs, 10 Years Warranty
- Brand: be quiet
- MPN: BN702
- Part #: PSUBQT900400

Product URL: https://www.pbtech.com/product/PSUBQT900400/imglib/avatar/145137/_20200225094230_145137_7cb0e87c45b673ab5f10a07ef861061b.png
Features
DARK POWER 13 1000W - NO COMPROMISE SILENCE AND PERFORMANCE
The be quiet! Dark Power 13 1000W offers 80 PLUS® Titanium efficiency, virtually inaudible operation, and ATX 3.0 compliance for next-gen GPU compatibility.
- 80 PLUS Titanium efficiency (up to 95.2%)
- ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connector
- Improved frameless Silent Wings fan for virtually inaudible operation
- Full-mesh front with funnel shape air inlet upholds the high air circulation abilities
- Overclocking key switches between four 12V rails and one massive 12V rail
- Active Rectifier + full bridge LLC technology provides unmatched signal stability and extremely high efficiency
- Modular cable management for maximum convenience
80 PLUS® TITANIUM CERTIFIED - The highest efficiency certificate available
Dark Power 13 1000W is certified with 80 PLUS Titanium and a money-saving energy efficiency rating of up to 95.2%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation. The standby drain is below 0.1 watts.
FUTURE-PROOF YOUR SYSTEM - Fulfills all ATX 3.0 specifications
Dark Power 13 1000W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for present high-end systems and the ones to come.
THE NEW STANDARD OF POWER - For massive transient loads
Dark Power 13 offers 1000W of continuous power with 4 independent 12V rails. Even if the graphics card demands excessive power for a short time: Dark Power 13 1000W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.
FRAMELESS SILENT WINGS FAN - Patented fan technology for virtually inaudible operation
The improved tripod-mounted be quiet! Silent Wings fan enables maximum airflow and a virtually inaudible operation. This is thanks to its unique, airflow-optimized fan blade design along with an advanced fluid-dynamic bearing. A 6-pole fan motor ultimately makes for less vibration, super-long life and minimal power consumption.
INNOVATIVE COOLING CONCEPT - For a longer lifespan
The split fan inlet of the Dark Power 13 1000W is a custom-shaped funnel that increases airflow while reducing unwanted turbulence. The wire-free design inside allows the cool air to reach all components flawlessly which ultimately leads to a longer lifespan.
READY FOR OVERCLOCKING - Pushing the performance of your PSU to the max
Dark Power 13 1000W is particularly suitable for overclocking. The overclocking key gives you full overclocking control by manually switching between the default four 12V-rail mode and the alternative massive single-rail operation.
WORLD CLASS TOPOLOGY - State-of-the-art technology for extremely high efficiency
With an active rectifier and full bridge LLC technology Dark Power 13 1000W offers some of the most advanced technologies available, resulting in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation.
JAPANESE 105° CAPACITORS - A testament to high quality
Only the best components are used in Dark Power 13 1000W. That is why we have exclusively built high-quality Japanese capacitors into the PSU chassis. They are rated to 105°C which ensures stability, reliability, and a long operating life.
HIGHEST CONVENIENCE AND BEST CONNECTIVITY - Modular cables
Modular, sleeved cables of up to 120cm in length simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling in even the largest PC cases.
Specifications
General data
Model
Dark Power 13 1000W
Continuous power (W)
1000
Peak power (W)
1100
Form factor
Version 3.0
Form factor EPS 12V
Version 2.92
Topology
Active Rectifier + Full bridge + LLC + SR + DC/DC
Digitally controlled
-
Voltage (Vac)
100 - 240
Frequency (Hz)
50 - 60
Input current (A)
13 / 6
Power factor at 100% load
>0.98
Modern standby
Yes
Power consumption in standby (W)
<0.13
Average life time (h / 25°C)
>100,000
Operating temperature up to (°C)
40
Efficiency
80 PLUS certification
Titanium
Efficiency (%) at 230V, 2% load
72.0
Efficiency (%) at 230V, 10% load
90.7
Efficiency (%) at 230V, 20% load
94.8
Efficiency (%) at 230V, 50% load
95.2
Efficiency (%) at 230V, 100% load
93.3
Fan and cooling technology
Fan
Silent Wings
Fan size (mm)
135
Bearing technology
FDB
Motor technology
6-pole fan motor
Max. fan speed (rpm)
1800
dB(A) at 10% load
8.1
dB(A) at 20% load
8.1
dB(A) at 50% load
8.6
dB(A) at 100% load
25.8
Output
Multi-rail operation (12V rails)
4
12V single rail operation
Yes
Overclocking key
Yes
+3.3V (A)
25
+5V (A)
25
+12V1 (A)
32
+12V2 (A)
32
+12V3 (A)
40
+12V4 (A)
40
+12V5 (A)
-
+12V6 (A)
-
-12V (A)
0.5
+5Vsb (A)
3
Max. combined power 12V (W)
996
Max. combined power 3.3V + 5V (W)
125
Hold-up time at 100% load (ms)
23.2
Power good signal (ms)
100 - 150
Cables and connectors
Modular cables
Yes
Sleeved cables
all
Flat cables
-
Maximum cable length (cm)
105
Cable length to motherboard (cm)
60
No. of cables
12
ATX-Motherboard (20+4-pin)
1
P4+4 (CPU)
1
P8 (CPU)
1
P4 (CPU)
-
12VHPWR cable / W
1 / 600
PCI-e 6+2-pin (GPU)
4
PCI-e 6-pin (GPU)
-
SATA
13
PATA
3
FDD (Floppy)
-
Protection
OTP (over temperature protection)
Yes
OCP (over current protection)
Yes
OPP (over power protection)
Yes
SCP (short circuit protection)
Yes
OVP (over Voltage protection)
Yes
UVP (under Voltage protection)
Yes
SIP (Surge & Inrush Protection)
Yes
Safety certification
BSMI
Yes
CB
Yes
CCC
-
CE
Yes
cRUus
-
cTUVus
Yes
CU
Yes
FCC
Yes
RCM
Yes
TÜV
Yes
UKCA
Yes
Environmental directives
Energy Star
8.0
ErP
Yes
WEEE
Yes
RoHs
Yes
Triman
Yes
Scope of delivery
Thumb screws
Yes
Screws
Yes
Cable ties
Yes
Velcro cable ties
Yes
User manual languages
DE, EN, ES, FR, PL, RU, TW, CN, JP, KC
OCK slot bracket with switch / OCK jumper
Yes
SFX-to-ATX adapter
-
Casing
Dimensions without cable (L x W x H), (mm)
175 x 150 x 86
Weight (kg)
2.03
Color
Black
