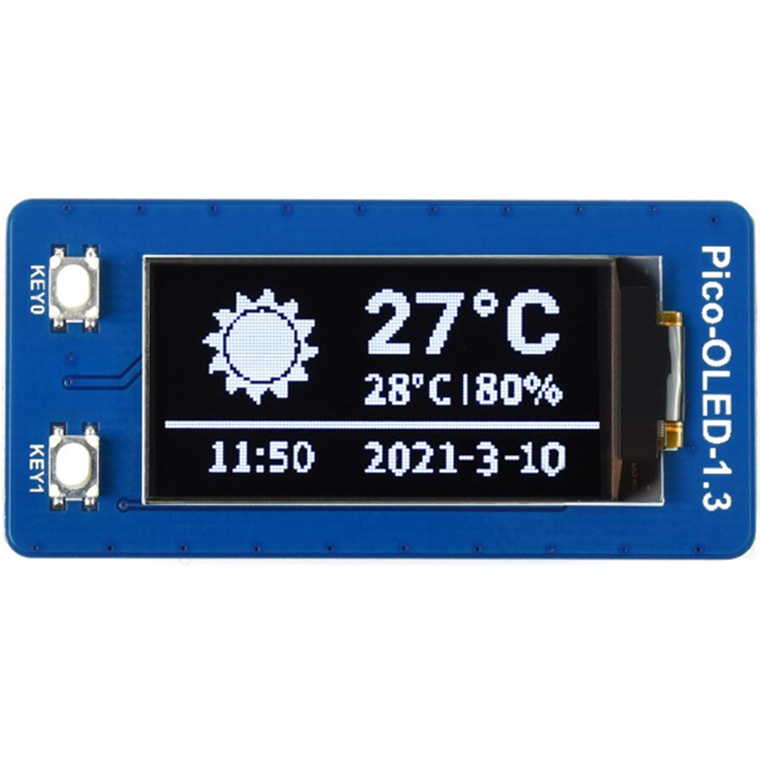

Raspberry Pi Display 1.3inch OLED Module for Raspberry Pi Pico, 64x128, SPI/I2C

Normally $22.68
Normally $22.68
You save 12%
You save 12%
AUD $ 19 .75
$ 19 .75

Out of stock

Raspberry Pi Display 1.3inch OLED Module for Raspberry Pi Pico, 64x128, SPI/I2C

Normally $22.68
Normally $22.68
You save 12%
You save 12%
PB Tech price
AUD $ 19 .75 $ 19 .75


Case Colour

N/A

Memory Size

N/A

PSU Colour

N/A

Features

NOTE: Raspberry Pi Pico is NOT included. The pictures are for reference ONLY.

1.3inch OLED Display Module For Raspberry Pi Pico, 64x128 Pixels, SPI/I2C Interface

Features:

 - Adopts both 4-wire SPI and I2C interface, better compatibility, fast data rate
 - 2 x user buttons for easy interacting

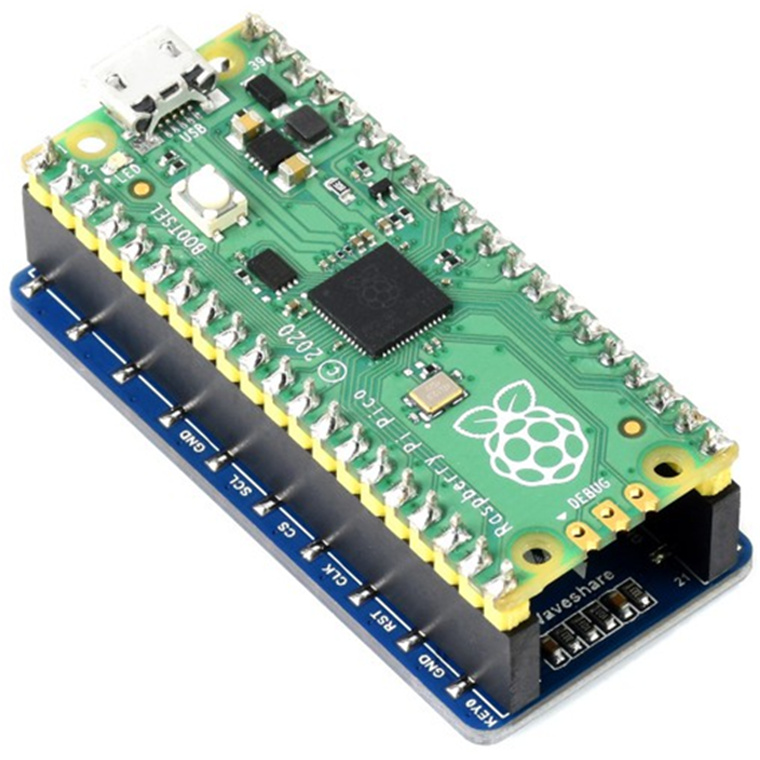

 - Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards






OLED and its controller:

 - This OLED integrates the SH1107 controller which has 128x128 bits SRAM, supports 128x128 resolution. The controller features SPI/IIC/ 6800/8080 interface and 256 brightness levels. The resolution of this 1.3inch OLED is only 64x128, only half of the SRAM is used.
 - This OLED uses four-line SPI and I2C interface for communicating, which supports higher compatibility and speed.

Protocol:

Note: The MISO pin is hidden, for more details, you can refer to Datasheet Page11.

 - CS: Chip selection of the slaver, the chip is activated when CS is Low;
 - SI(D1): This is MOSI pin, the pin is used to transmit data from master to slaver;
 - SCL(D0)is the SPI clock
 - A0: This is the DC pin, it is used to determine the data input, DC=0: command is sent;
 - SPI communication has data transfer timing, which is combined by CPHA and CPOL.
 - CPOL determines the level of the serial synchronous clock at an idle state. When CPOL = 0, the level is Low. However, CPOL has little effect on the transmission.
 - CPHA determines whether data is collected at the first clock edge or at the second clock edge of the serial synchronous clock; when CPHL = 0, data is collected at the first clock edge.
 - According to the figure, SCL is high in idle and it starts to transmit data at the second edge. therefore the timing is Mode 3 (0x11). Data is transmitted in MSB format.

User Guides, Resoures, please check HERE

Specifications

Operating voltage

3.3V

Communication Interface

4-wire SPI, I2C

Display Panel

OLED

Driver

SH1107

Resolution

64×128 pixels

Display size

14.70 × 29.42mm

Pixel size

0.15 × 0.15mm

Dimensions

52.00 × 25.00mm

Manufacturer Part No:
19376
Brand:
Product Type:
Module
UPC
-
Product Family:
Display
Shipping Weight:
1 kg
PB Part No:
SEVRBP0341
Product Model:
1.3inch OLED
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

There are currently no reviews for this product

Do you own this product?
