Ubiquiti UniFi USW-Enterprise-48-PoE 52-Port 10G L3 Managed PoE Switch (720W) - SFP+ x4, 2.5GbE PoE+ x48
Ubiquiti UniFi USW-Enterprise-48-PoE 52-Port 10G L3 Managed PoE Switch (720W) - SFP+ x4, 2.5GbE PoE+ x48
- Brand: Ubiquiti
- MPN: USW-Enterprise-48-POE
- Part #: SWHUBI848720
- UPC: 810010074867
- Brand: Ubiquiti
- MPN: USW-Enterprise-48-POE
- Part #: SWHUBI848720
- UPC: 810010074867
COMBO DEALS: Frequently Bought Together
Features
Switch Enterprise 48 PoE - Layer 3, PoE switch with (48) 2.5GbE, 802.3at PoE+ RJ45 ports and (4) 10G SFP+ ports.

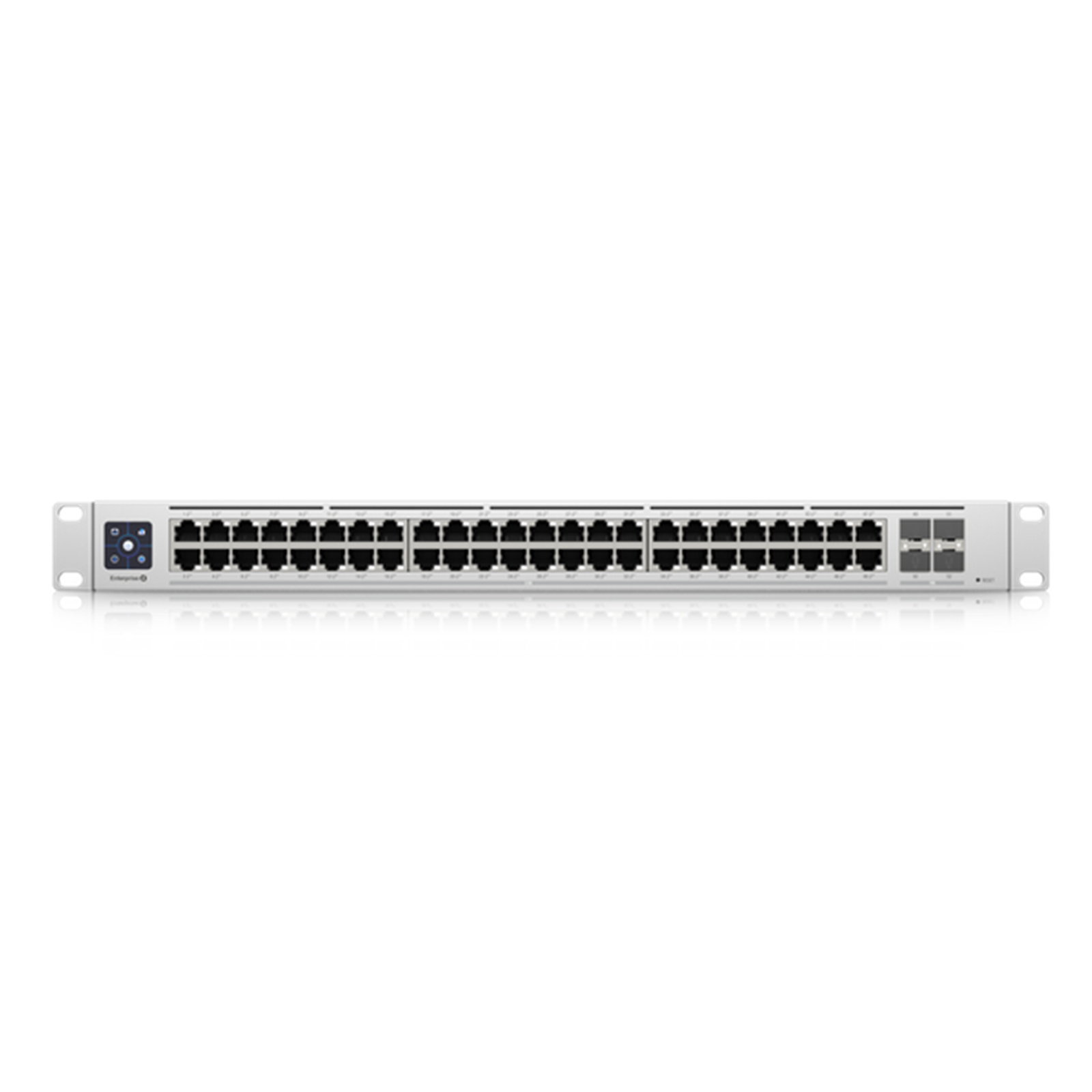

The Switch Enterprise 48 PoE (USW Enterprise 48 PoE) is a fully managed switch with (48) 2.5GbE, 802.3at PoE+ RJ45 ports, (4) 10G SFP+ ports, and a 720W total PoE supply. Along with its Layer 3 functionality, this switch offers an extensive suite of Layer 2 switching protocols, including port-specific operation modes (switching, mirroring, or aggregate).The USW Enterprise 48 PoE also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.
Additionally, the USW Enterprise 48 PoE offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
- (1) 1.3" LCM color touchscreen with AR switch management
- (48) 2.5GbE, 802.3at PoE+ RJ45 ports
- (4) 10G SFP+ ports
- (1) USP RPS DC input
- 720W total PoE supply
- Layer 3 switching features
*Managed with the UniFi Network application: Version 6.2.26 and later
Works with UniFi Network Application
- Manage your networks from a single interface.
- Enjoy intuitive configuration options, as well as robust device control and monitoring.
- Upgrade device firmware remotely.
- Easily manage network users and guests.
- Personalize the design, architecture, and privacy of guest hotspots.
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Switches
Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch -...
TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch
TP-Link TL-SG105 5-Port 10/100/1000Mbps Desktop Switch
TP-Link TL-SG108PE 8-Port Gigabit Easy Smart PoE Switch with 4...
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE...
Ubiquiti UniFi USW-Enterprise-48-PoE 52-Port 10G L3 Managed PoE Switch (720W) - SFP+ x4, 2.5GbE PoE+ x48
- Brand: Ubiquiti
- MPN: USW-Enterprise-48-POE
- Part #: SWHUBI848720
- UPC:810010074867
Product URL: https://www.pbtech.com/product/SWHUBI848720/Ubiquiti-UniFi-USW-Enterprise-48-PoE-52-Port-10G-L?qr=similar-w
Features
Switch Enterprise 48 PoE - Layer 3, PoE switch with (48) 2.5GbE, 802.3at PoE+ RJ45 ports and (4) 10G SFP+ ports.
The Switch Enterprise 48 PoE (USW Enterprise 48 PoE) is a fully managed switch with (48) 2.5GbE, 802.3at PoE+ RJ45 ports, (4) 10G SFP+ ports, and a 720W total PoE supply. Along with its Layer 3 functionality, this switch offers an extensive suite of Layer 2 switching protocols, including port-specific operation modes (switching, mirroring, or aggregate).The USW Enterprise 48 PoE also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.
Additionally, the USW Enterprise 48 PoE offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
- (1) 1.3" LCM color touchscreen with AR switch management
- (48) 2.5GbE, 802.3at PoE+ RJ45 ports
- (4) 10G SFP+ ports
- (1) USP RPS DC input
- 720W total PoE supply
- Layer 3 switching features
*Managed with the UniFi Network application: Version 6.2.26 and later
Works with UniFi Network Application
- Manage your networks from a single interface.
- Enjoy intuitive configuration options, as well as robust device control and monitoring.
- Upgrade device firmware remotely.
- Easily manage network users and guests.
- Personalize the design, architecture, and privacy of guest hotspots.
Specifications
Mechanical
Dimensions
442 x 44 x 400 mm (17.4 x 1.7 x 15.7")
Weight
Without mount: 6.2 kg (13.67 lb)
With mount: 6.3 kg (13.89 lb)
Enclosure material
SGCC steel
Mount material
SGCC steel
Hardware
Total non-blocking throughput
160 Gbps
Switching capacity
320 Gbps
Forwarding rate
238.095 Mpps
Max. power consumption (excluding PoE output)
150 W
Power method
(1) Universal AC input, 100-240VAC, 10A Max, 50/60 Hz
(1) USP-RPS DC input, 52VDC, 13.84A; 11.5VDC, 13A
Power supply
AC/DC, internal, 100-240V, 10A max.
Management interface
Ethernetin-band
Networking interfaces
(48) 100MbE/1GbE/2.5GbE RJ45 port
SFP+ interfaces
(4) 1G/10G SFP+ ports
PoE interfaces
(48) PoE+ IEEE 802.3af/at(pins 1, 2+; 3, 6-)
Total PoE supply
720 W
Max. PoE+ wattage per port by PSE
34.2 W
Voltage range 802.3af mode
44 to 57V
Voltage range 802.3at mode
50 to 57V
Services
SMB Layer 3 PoE Gigabit Ethernet switch
ESD/EMP protection
Air: ± 16 kV, contact: ± 12 kV
Display
(1) 1.3" LCM color touchscreen
Bootup animation: bootup in progress
Firmware update icon: rmware updating
Steady white: factory defaults, awaiting adoption
Steady blue: device is adopted
Button
Factory reset
Operating temperature
-5 to 40° C (23 to 104° F)
Operating humidity
0 - 90% noncondensing
Certifcations
CE, FCC, IC
LEDs
Ethernet
White: link or activity
SFP+
White: link or activity
