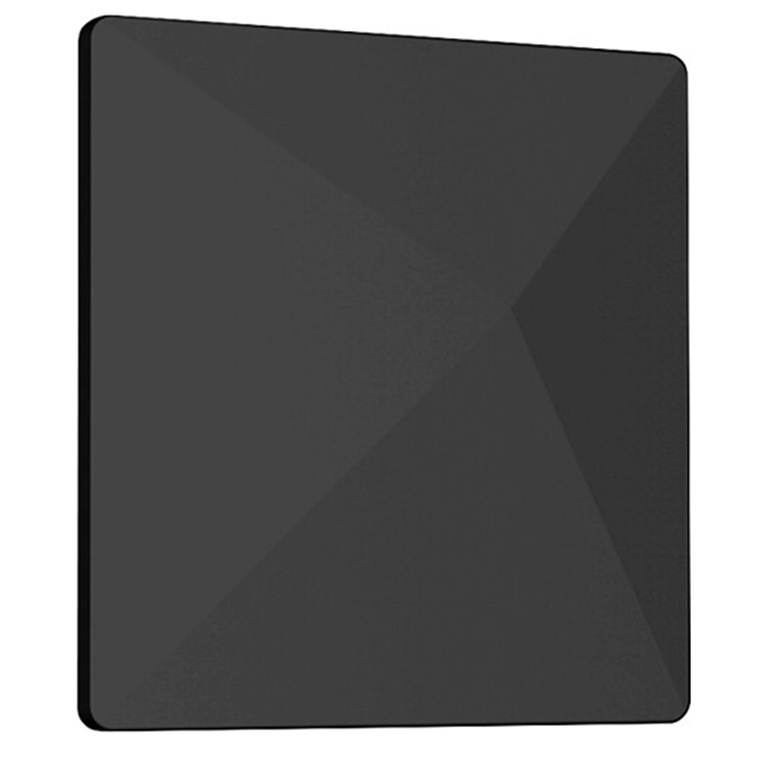

RF VENUE DARC-BK LOW PROFILE DIVERSITY ARCHITECTURAL ANTENNA BLACK

PB Tech price
PB Tech price
NZD $ 1,586 .96
$ 1,586 .96
$1,586.96  +GST
$1,586.96

RF VENUE DARC-BK LOW PROFILE DIVERSITY ARCHITECTURAL ANTENNA BLACK

  • Brand: RF VENUE
  • MPN: DARC-BK
  • Part #: AUDRFV1015
  • UPC:
NEW ARRIVAL
PB Tech price
NZD $ 1,586 .96 $ 1,586 .96


Delivery: Order now and it ships on 12 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$1,586.96  +GST
$1,586.96

Features

The new Diversity Architectural Antenna by RF Venue is a high performance, aesthetically pleasing and discreet diversity antenna system for use with wireless microphones.

Ideally suited for conference rooms, multi-purpose meeting spaces, training rooms and houses of worship, the slim profile enclosure of the Diversity Architectural Antenna can be installed in any position on a wall or ceiling and can be painted to match any interior.

The Diversity Architectural Antenna uses a unique patent-pending dual-feed antenna design, both A and B diversity connections are provided, so there's no need to install two separately spaced antennas resulting in a more professional look that room designers and architects appreciate.

The Diversity Architectural antenna installs in minutes, with a wall or ceiling-mounted rear plate that is pre-drilled with multiple mounting hole options. The rear plate then simply connects to the front plate, secured with the included mounting screws. Simply connect the two rear-mounted BNC terminated coaxial cables to your in-wall or in-ceiling coaxial cable run and the Diversity Architectural is ready for use.

The Diversity Architectural antenna builds on the highly acclaimed Diversity Fin (DFIN), eliminating the most common signal dropouts caused by changes in angle and orientation of the RF signal.

- Blends into any background
- Doesn't Drop Out
- Two antennas in one package
- Easy installation
- Paintable

Specifications

Electrical

Operating frequency

470-698 MHz

Bandwidth

146 MHz

Impedance

50ohm

Average return loss

-6.4 dB

Pattern type

Diversity Flood

Gain

3 dBd

F/B ratio

N/A

F/S ratio

N/A

Polarization

Linear

Physical

Color

Black

Dimensions

280 x 280 x 50 mm / 11" x 11" x 2"

Weight

0.9 kg / 2 lbs

Mount location

Wall or ceiling

Operating temperature

-10-40°C / 14-104°F

Connector(s)

BNC female

Manufacturer Part No:
DARC-BK
Brand:
RF VENUE
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.2 kg
PB Part No:
AUDRFV1015
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
