RF VENUE DARC-BK LOW PROFILE DIVERSITY ARCHITECTURAL ANTENNA BLACK
- Brand: RF VENUE
- MPN: DARC-BK
- Part #: AUDRFV1015

Product URL: https://www.pbtech.com/au/product/AUDRFV1015/RF-VENUE-DARC-BK-LOW-PROFILE-DIVERSITY-ARCHITECTUR
Features

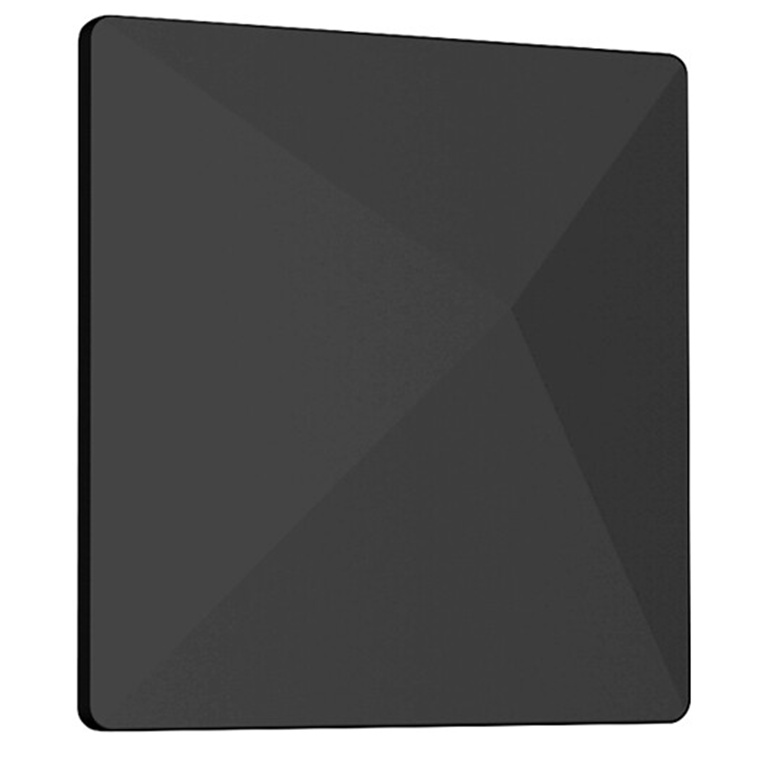

The new Diversity Architectural Antenna by RF Venue is a high performance, aesthetically pleasing and discreet diversity antenna system for use with wireless microphones.
Ideally suited for conference rooms, multi-purpose meeting spaces, training rooms and houses of worship, the slim profile enclosure of the Diversity Architectural Antenna can be installed in any position on a wall or ceiling and can be painted to match any interior.
The Diversity Architectural Antenna uses a unique patent-pending dual-feed antenna design, both A and B diversity connections are provided, so there's no need to install two separately spaced antennas resulting in a more professional look that room designers and architects appreciate.
The Diversity Architectural antenna installs in minutes, with a wall or ceiling-mounted rear plate that is pre-drilled with multiple mounting hole options. The rear plate then simply connects to the front plate, secured with the included mounting screws. Simply connect the two rear-mounted BNC terminated coaxial cables to your in-wall or in-ceiling coaxial cable run and the Diversity Architectural is ready for use.
The Diversity Architectural antenna builds on the highly acclaimed Diversity Fin (DFIN), eliminating the most common signal dropouts caused by changes in angle and orientation of the RF signal.
- Blends into any background
- Doesn't Drop Out
- Two antennas in one package
- Easy installation
- Paintable
Specifications
Electrical
Operating frequency
470-698 MHz
Bandwidth
146 MHz
Impedance
50ohm
Average return loss
-6.4 dB
Pattern type
Diversity Flood
Gain
3 dBd
F/B ratio
N/A
F/S ratio
N/A
Polarization
Linear
Physical
Color
Black
Dimensions
280 x 280 x 50 mm / 11" x 11" x 2"
Weight
0.9 kg / 2 lbs
Mount location
Wall or ceiling
Operating temperature
-10-40°C / 14-104°F
Connector(s)
BNC female
