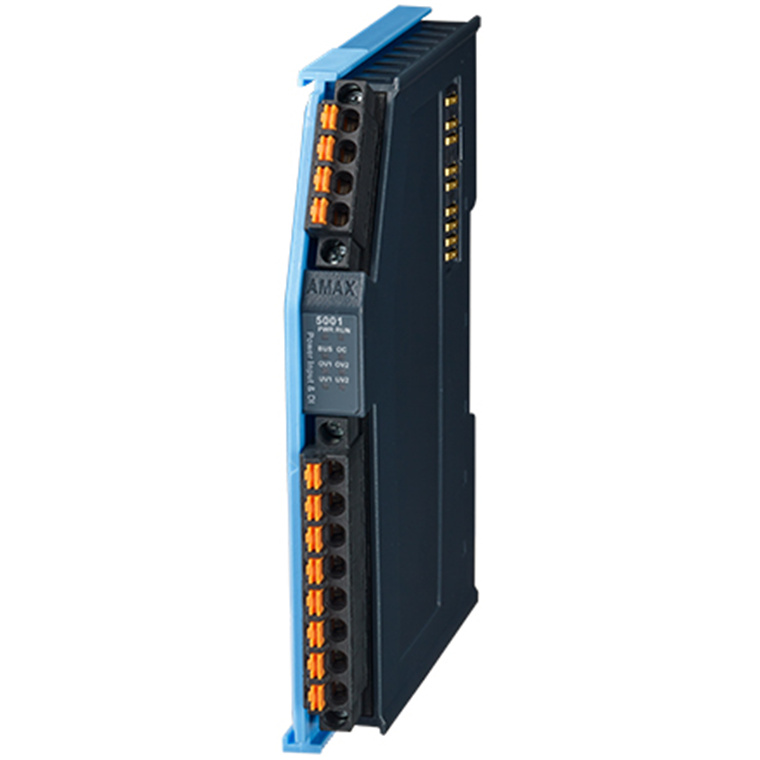

Advantech AMAX-5001-A 2-ch Power Input with 4-ch Digital Input EtherCAT Slice IO Module

PB Tech price
PB Tech price
NZD $ 220 .50
$ 220 .50
$220.50  +GST
$220.50

Advantech AMAX-5001-A 2-ch Power Input with 4-ch Digital Input EtherCAT Slice IO Module

  • Brand: Advantech
  • MPN: AMAX-5001-A
  • Part #: IPCAVH011007
  • UPC:
PB Tech price
NZD $ 220 .50 $ 220 .50


Delivery: Order now and it ships on 07 Nov
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$220.50  +GST
$220.50

Features

2-ch Power Input with 4-ch Digital Input EtherCAT Slice IO Module

- Rated Voltage: 24VDC (± 20%)
- Dual Power Input: Supported
- Max Current on Bus: 2A
- Diagnosis Function: Over/under voltage for input 1&2, Over current output on bus.

Specifications

General

Rated Voltage

24 VDC (±20%)

Diagnosis Function

Over/under voltage for input 1&2
Over current output on bus

Max Current on Bus

2 A

Connectors

1 x 4-pin plug-in screw terminal, 1 x 8-pin plug-in screw terminal

Protocol

EtherCAT

EtherCAT

Cycle Time

100 µs

Hardware

Dual Power Input

Supported

Certification

CB, UL, CE, FCC Class A

LED Indicators

PWR, RUN / ERROR, Power Diagnosis LED

Power Consumption

2 W@ 24 VDC

Digital Input

Input Voltage

Dry Contact
Logic level 1: close to Iso.GND
Logic level 0: open
Wet Contact
Rated voltage: 24 VDC
Logic level 1: 10~30 VDC and -10~-30 VDC
Logic level 0: -3~3 VDC

Channels

4

Input Delay

From logic level 0 to 1:
4 ms
From logic level 1 to 0:
4 ms

Digital Filter

3 ms

Environment

Isolation Voltage

2,000 VDC

Operating Temperature

-25~60 °C (-13~140 °F)

Relative Humidity

95% RH (non-condensing)

Storage Temperature

-40~85 °C (-40~185 °F)

Storage Humidity

95% RH (non-condensing)

Mechanical

Enclosure

PC

Mounting

DIN-rail

Weight (Net)

84 g

Dimension (W x H x D)

14.6 x 105.9 x 94.7 mm

Manufacturer Part No:
AMAX-5001-A
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCAVH011007
Product Model:
AMAX-5001-A
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
