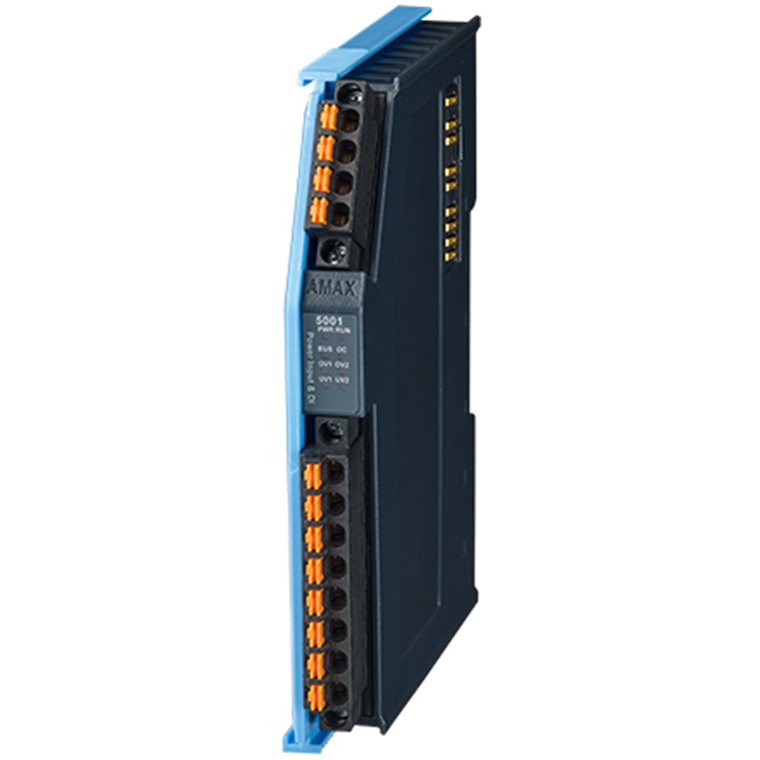

Advantech AMAX-5001-A 2-ch Power Input with 4-ch Digital Input EtherCAT Slice IO Module
- Brand: Advantech
- MPN: AMAX-5001-A
- Part #: IPCAVH011007

Product URL: https://www.pbtech.com/au/product/IPCAVH011007/Advantech-AMAX-5001-A-2-ch-Power-Input-with-4-ch-D
Features
2-ch Power Input with 4-ch Digital Input EtherCAT Slice IO Module
- Rated Voltage: 24VDC (± 20%)
- Dual Power Input: Supported
- Max Current on Bus: 2A
- Diagnosis Function: Over/under voltage for input 1&2, Over current output on bus.
Specifications
General
Rated Voltage
24 VDC (±20%)
Diagnosis Function
Over/under voltage for input 1&2
Over current output on bus
Max Current on Bus
2 A
Connectors
1 x 4-pin plug-in screw terminal, 1 x 8-pin plug-in screw terminal
Protocol
EtherCAT
EtherCAT
Cycle Time
100 µs
Hardware
Dual Power Input
Supported
Certification
CB, UL, CE, FCC Class A
LED Indicators
PWR, RUN / ERROR, Power Diagnosis LED
Power Consumption
2 W@ 24 VDC
Digital Input
Input Voltage
Dry Contact
Logic level 1: close to Iso.GND
Logic level 0: open
Wet Contact
Rated voltage: 24 VDC
Logic level 1: 10~30 VDC and -10~-30 VDC
Logic level 0: -3~3 VDC
Channels
4
Input Delay
From logic level 0 to 1:
4 ms
From logic level 1 to 0:
4 ms
Digital Filter
3 ms
Environment
Isolation Voltage
2,000 VDC
Operating Temperature
-25~60 °C (-13~140 °F)
Relative Humidity
95% RH (non-condensing)
Storage Temperature
-40~85 °C (-40~185 °F)
Storage Humidity
95% RH (non-condensing)
Mechanical
Enclosure
PC
Mounting
DIN-rail
Weight (Net)
84 g
Dimension (W x H x D)
14.6 x 105.9 x 94.7 mm
