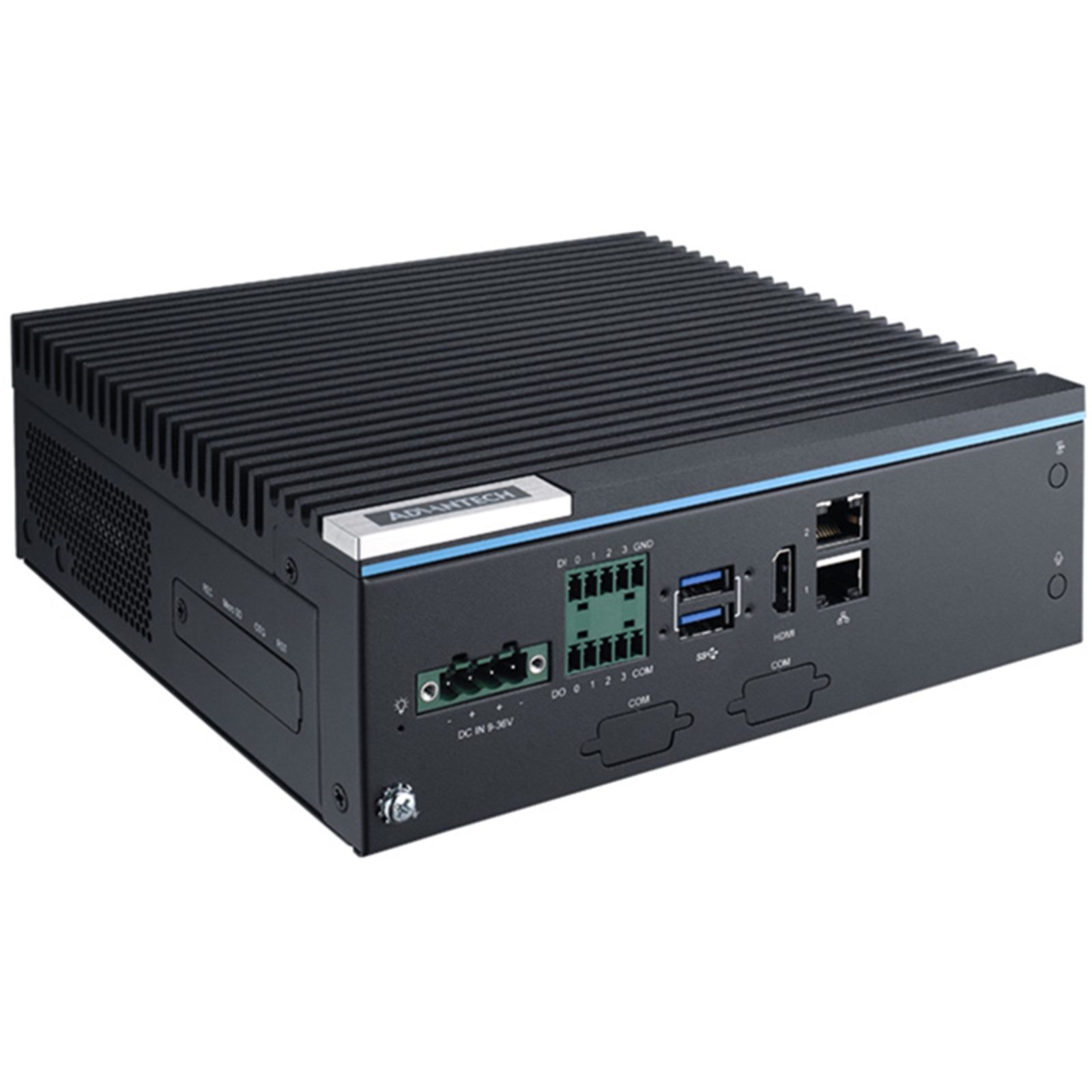

Advantech AI Platform Based on NVIDIA Jetson MIC-713-OX3A1 Orin NX 8GB w/128GB SSD
- Brand: Advantech
- MPN: MIC-713-OX3A1
- Part #: IPCAVH080015

Product URL: https://www.pbtech.com/pacific/product/IPCAVH080015/Advantech-AI-Platform-Based-on-NVIDIA-Jetson-MIC-7
Features
Advantech AI Platform Based on NVIDIA Jetson MIC-713-OX3A1 Orin NX 8GB w/128GB SSD 2 x GbE, 6 x USB3.2 Gen2, 1 x mPCIe, 1 x M.2 3052, 1 x M.2 2280, with 100-240V 230W 24V adaptor & MIC-733 PoE Board
- Compact fanless design
- Embedded NVIDIA® Jetson Orin™ NX up to 100 TOPS
- Supports 2 x GbE, 6 x USB 3.2 Gen 2
- Supports 1 x mPCIe, 1 x M.2 3052, 1 x M.2 2280
- Supports Allxon 24/7 remote monitoring and OTA deployment
Specifications
Processor System
CPU
8GB: 6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU
GPU
1024-core NVIDIA Ampere GPU with 32 Tensor Cores
Memory
8GB: 8GB LPDDR5
Flash
-
I/O

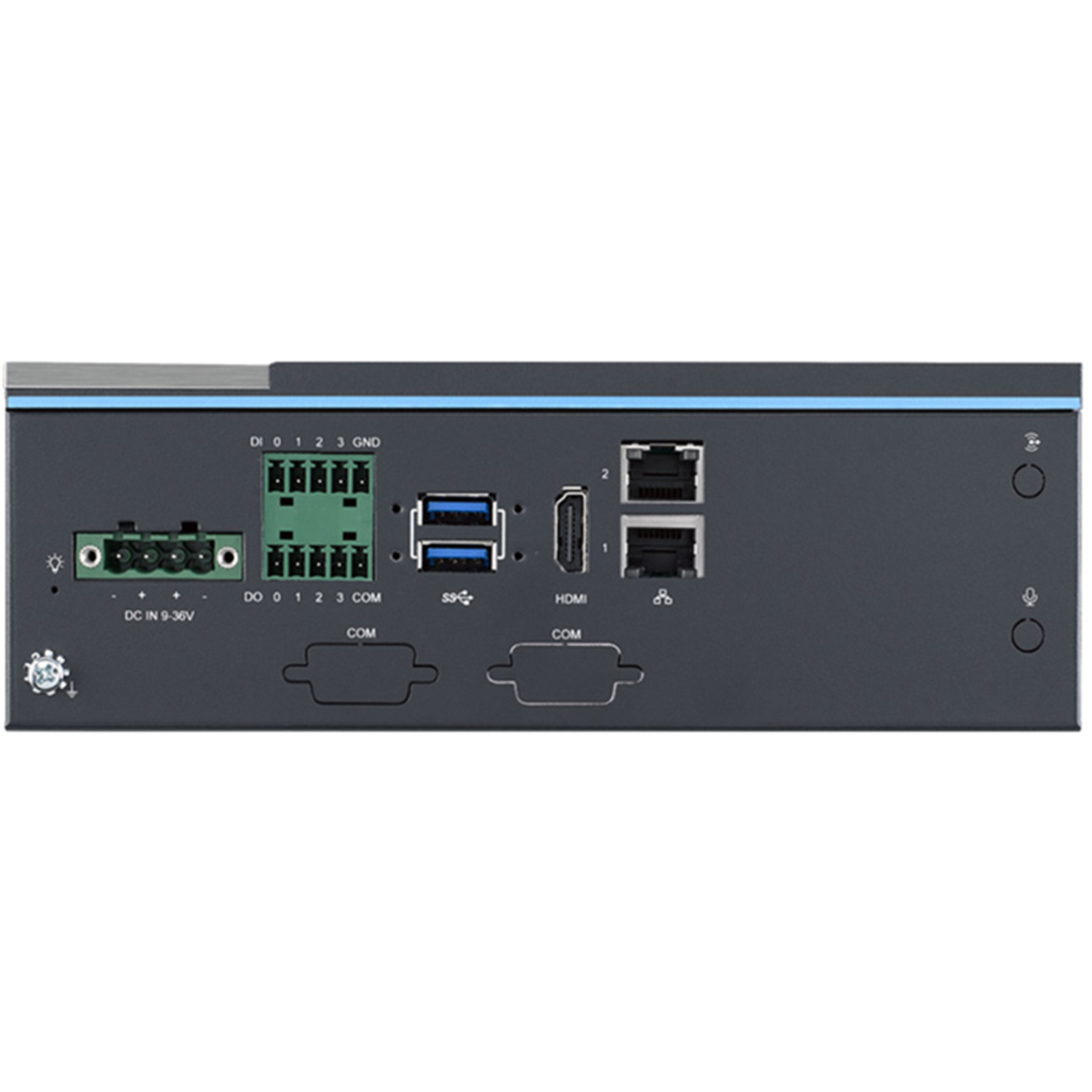

Ethernet
2 x 10/100/1000 Mbps
Display
HDMI (Max. resolution 3840x2160 @ 60Hz)
USB
External: 6 x USB 3.2 Gen 2
Digital I/O
4-ch DI, 4-ch DO
Serial Port (Optional)
2 x RS-232/422/485 (On-board pin header reserved)

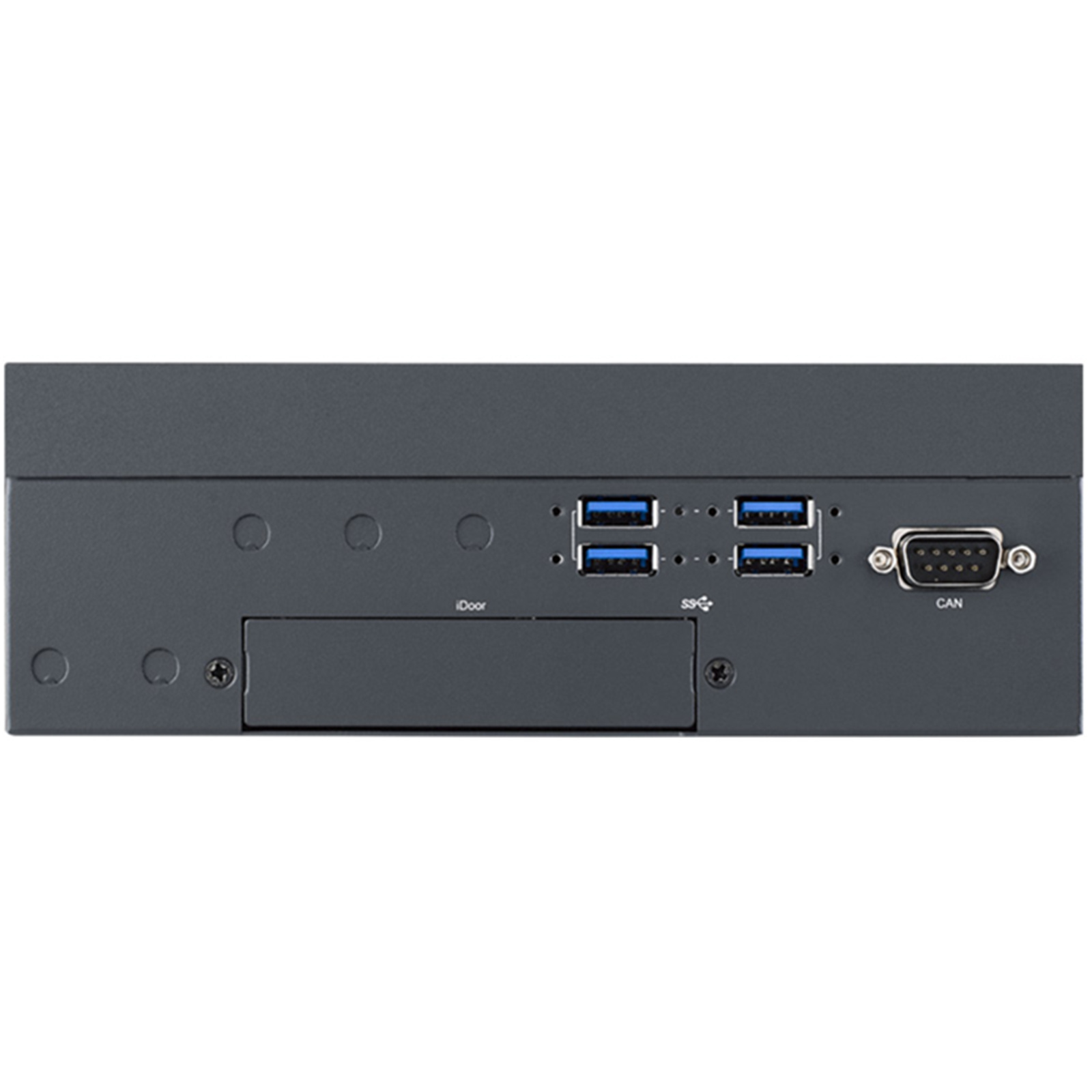

CANBus
1
OTG USB
1 x Micro USB
Expansion
Mini PCIe
1 x mPCIe (Signal: PCIe + USB 2.0)
M.2
1 x M.2 3052 (Signal: USB)
SIM
2 x Nano SIM slots
TPM (Optional)
1 x TPM 2.0
GMSL (Optional)
2-ch GMSL2.0 with FAKRA connectors
Storage
M.2
1 x M.2 2280 (Signal: PCIe x1, Gen 4)

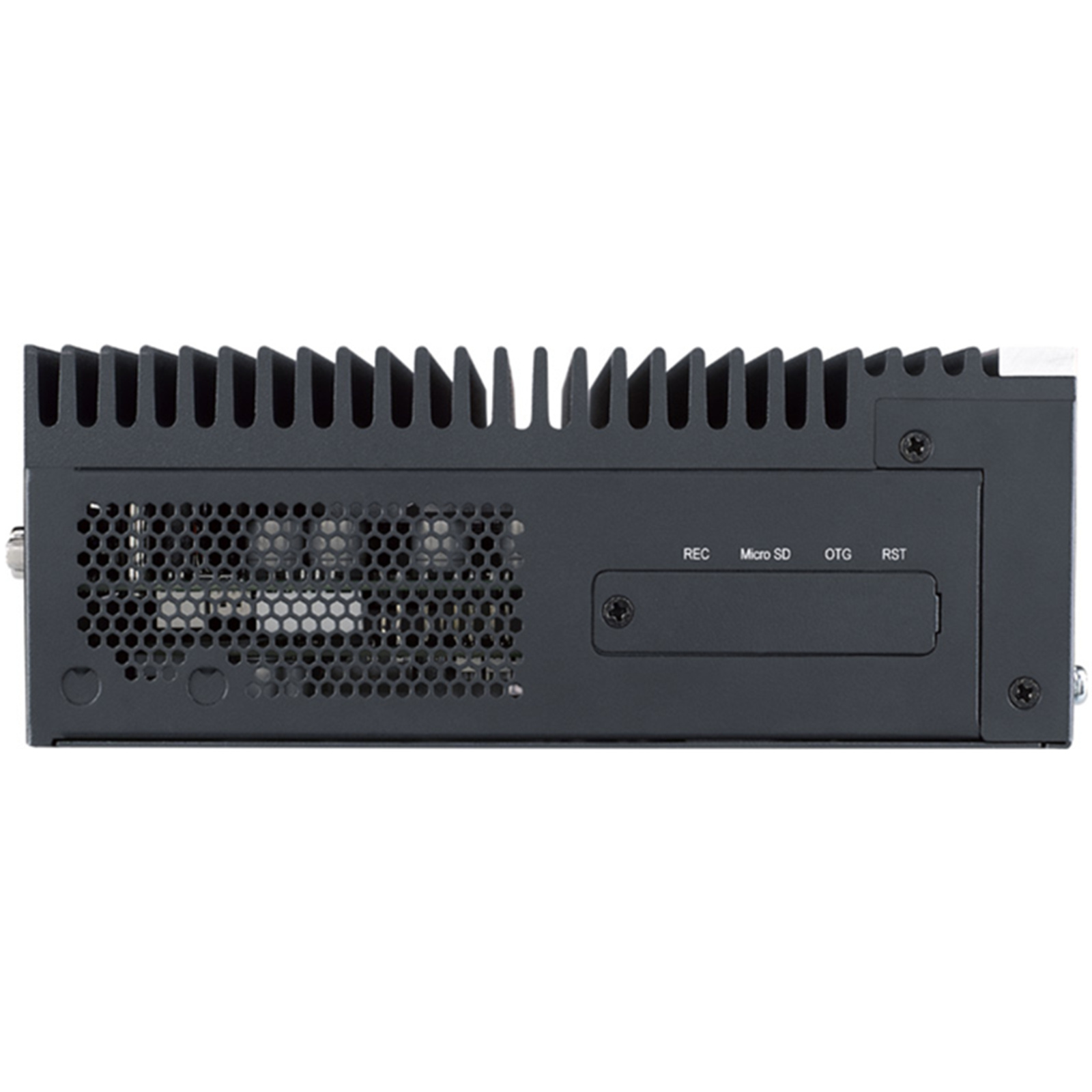

SD Card
1 x Micro SD
Power
Mode
AT
Input Voltage
9 ~ 36 VDC
Environment
Operating Temperature*
-10 ~ 50 °C with 0.7 m/s airflow
Operating Humidity
95% @ 40 °C (non-condensing)
Vibration
3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis
Shock
10G / 11ms
Mechanical
Dimensions (W x D x H)
194.8 x 174.3 x 65.85 mm (7.67" x 6.86" x 2.59")
Weight
2.05 kg (w/o packing material)
Installation
Desktop
BSP
Jetpack
Above 5.1
