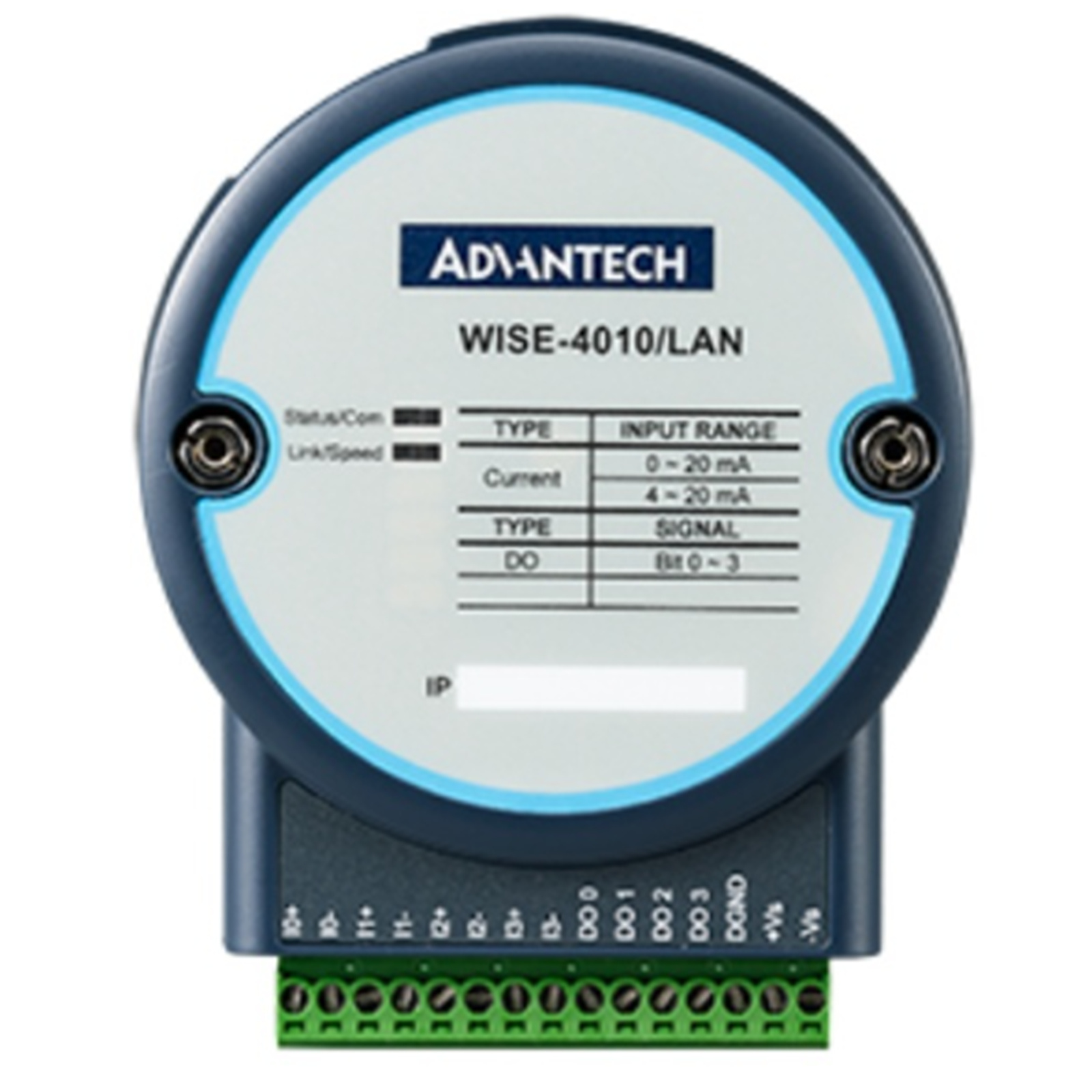

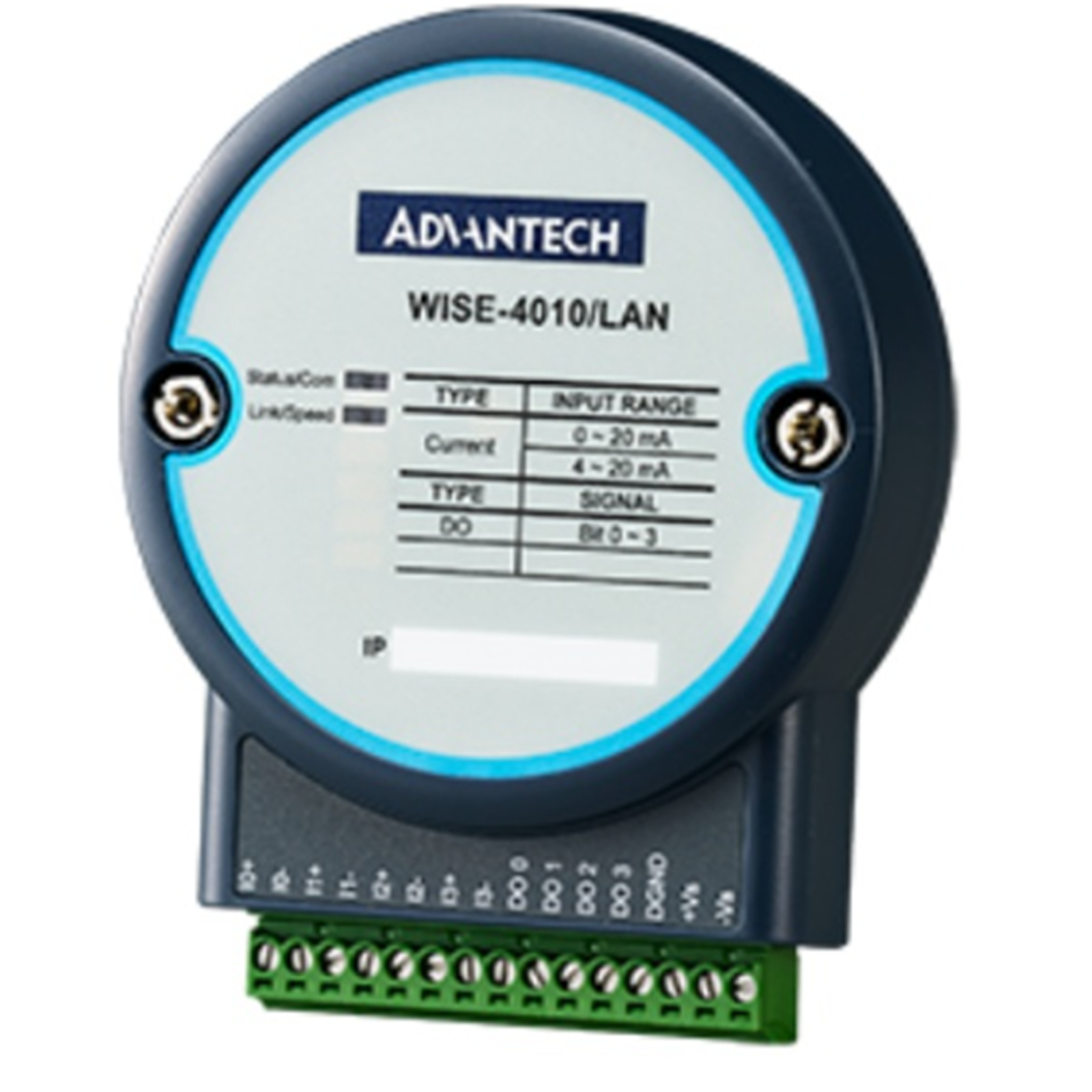

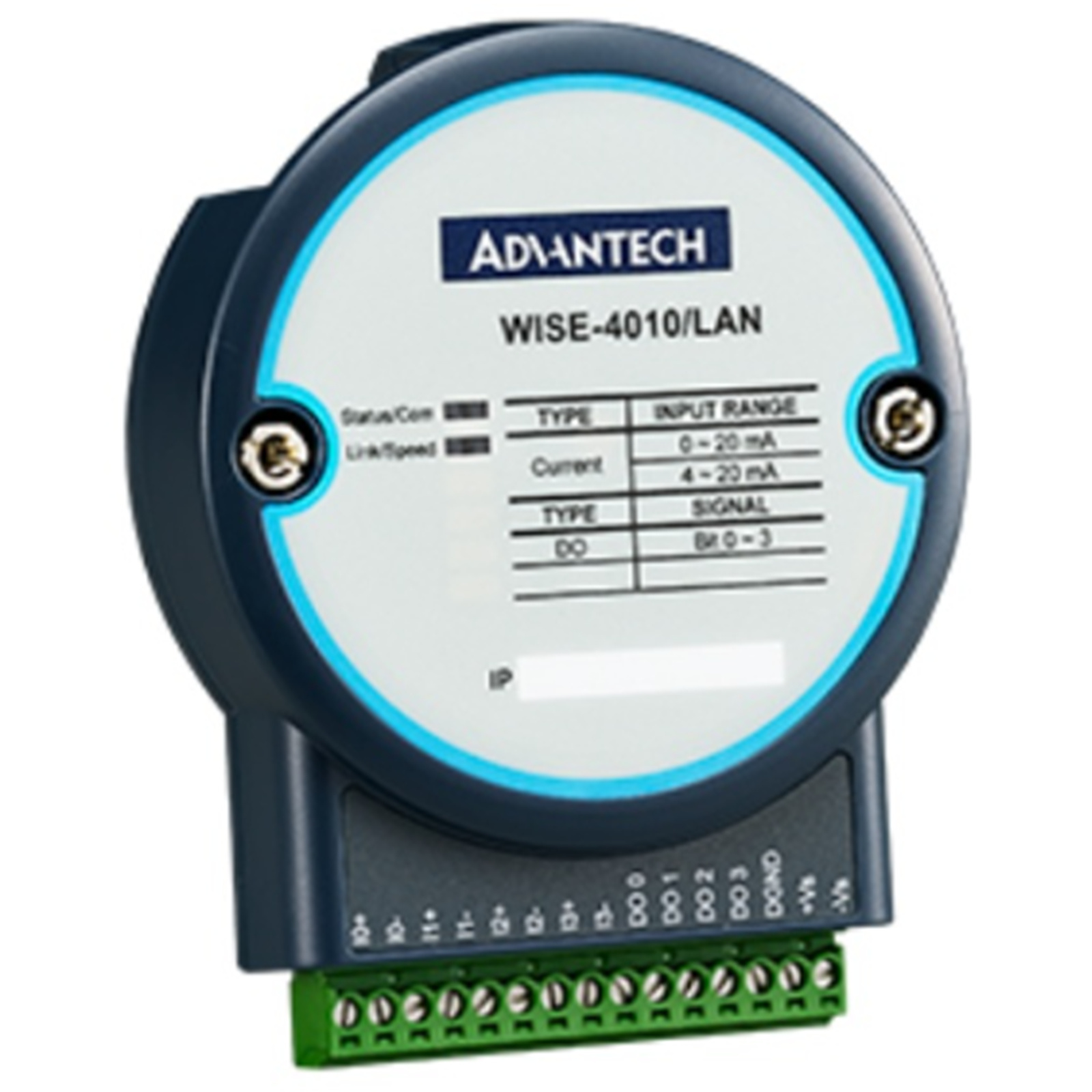

Advantech WISE-4010/LAN-AE 4CH CI / DO IOT LAN

PB Tech price
PB Tech price
NZD $ 314 .80
$ 314 .80
$314.80  +GST
$314.80

Advantech WISE-4010/LAN-AE 4CH CI / DO IOT LAN

  • Brand: Advantech
  • MPN: WISE-4010/LAN-AE
  • Part #: IPCAVH130006
  • UPC:
PB Tech price
NZD $ 314 .80 $ 314 .80


Delivery: Order now and it ships on 25 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$314.80  +GST
$314.80

Features

The WISE-4000LAN series is a newly designed IoT Ethernet I/O module which supports new RESTful web API for IoT applications. A HTML5 web configure interface enables users to configure WISE modules without the limitation of a platform or operation system.

- Supported protocols: Modbus/TCP, TCP/IP, UDP, DHCP, HTTP, MQTT
- Supports RESTful web API in JSON format
- Supports local logging with RTC time stamp
- Supports mobile device web configuration in HTML5
- Supports 10~30 VDC power with reverse protection

Specifications

Analog Input

Channels

4

Input Range

0~20 mA, 4~20 mA

lnput Type

mA

Resolution(Bits)

12-bit

Sampling Rates(S/s)

10/100 S/s (per channel)

Communications

Interface

Ethernet

Digital Output

Channels

4 (TTL)

Voltage Rating

0~30 VDC

Environment

Operating Temperature

-40~70 °C (-40~158 °F)

Storage Humidity

0~95% RH (non-condensing)

Storage Temperature

-40~85 °C (-40~185 °F)

General

Connectors

1 x RJ45, 1 x 15-pin plug-in screw terminal

Protocol

Modbus/TCP, TCP/IP, UDP, HTTP, DHCP

Power Requirements

Input Voltage

10~30 VDC

Manufacturer Part No:
WISE-4010/LAN-AE
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCAVH130006
Product Model:
WISE-4010/LAN-AE
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
