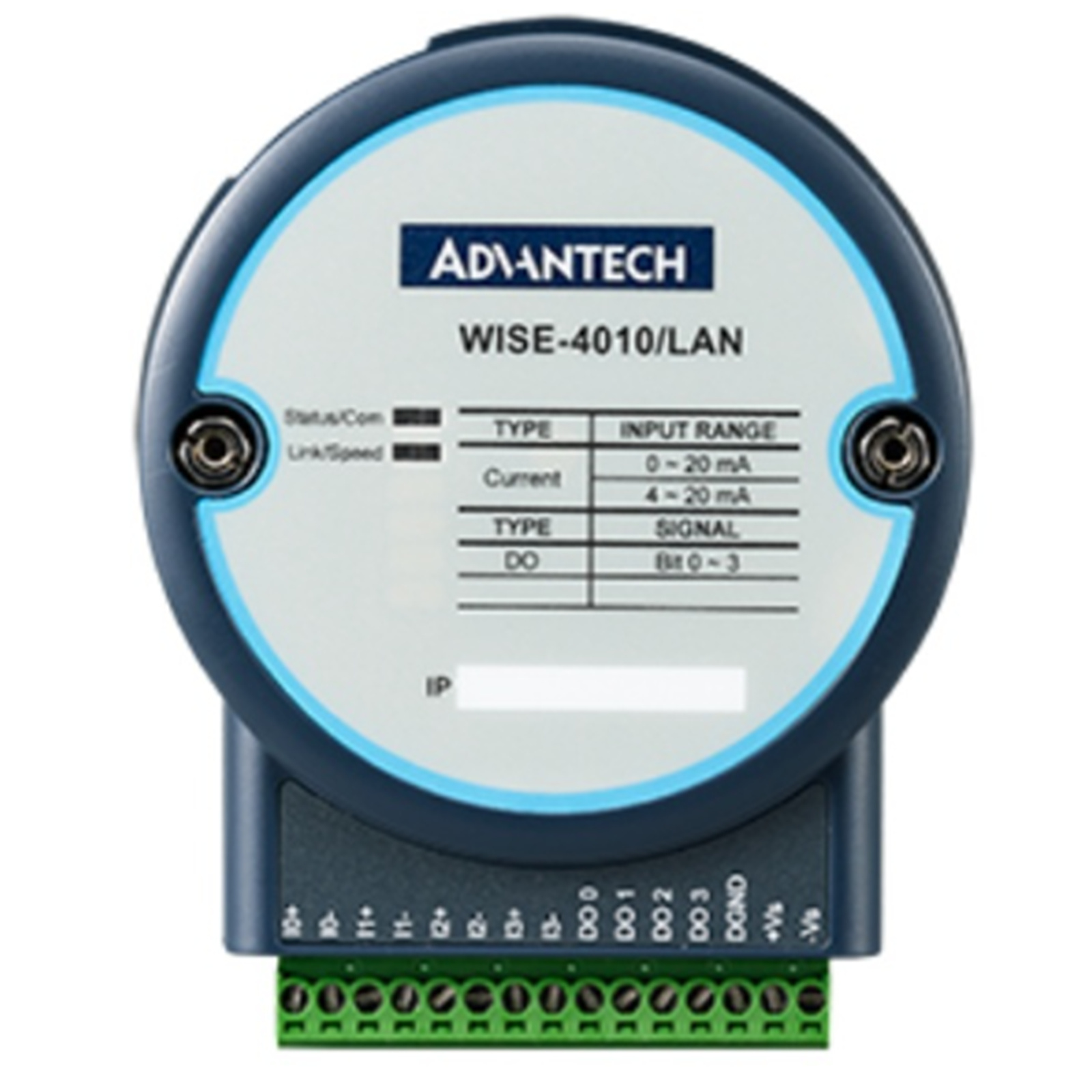

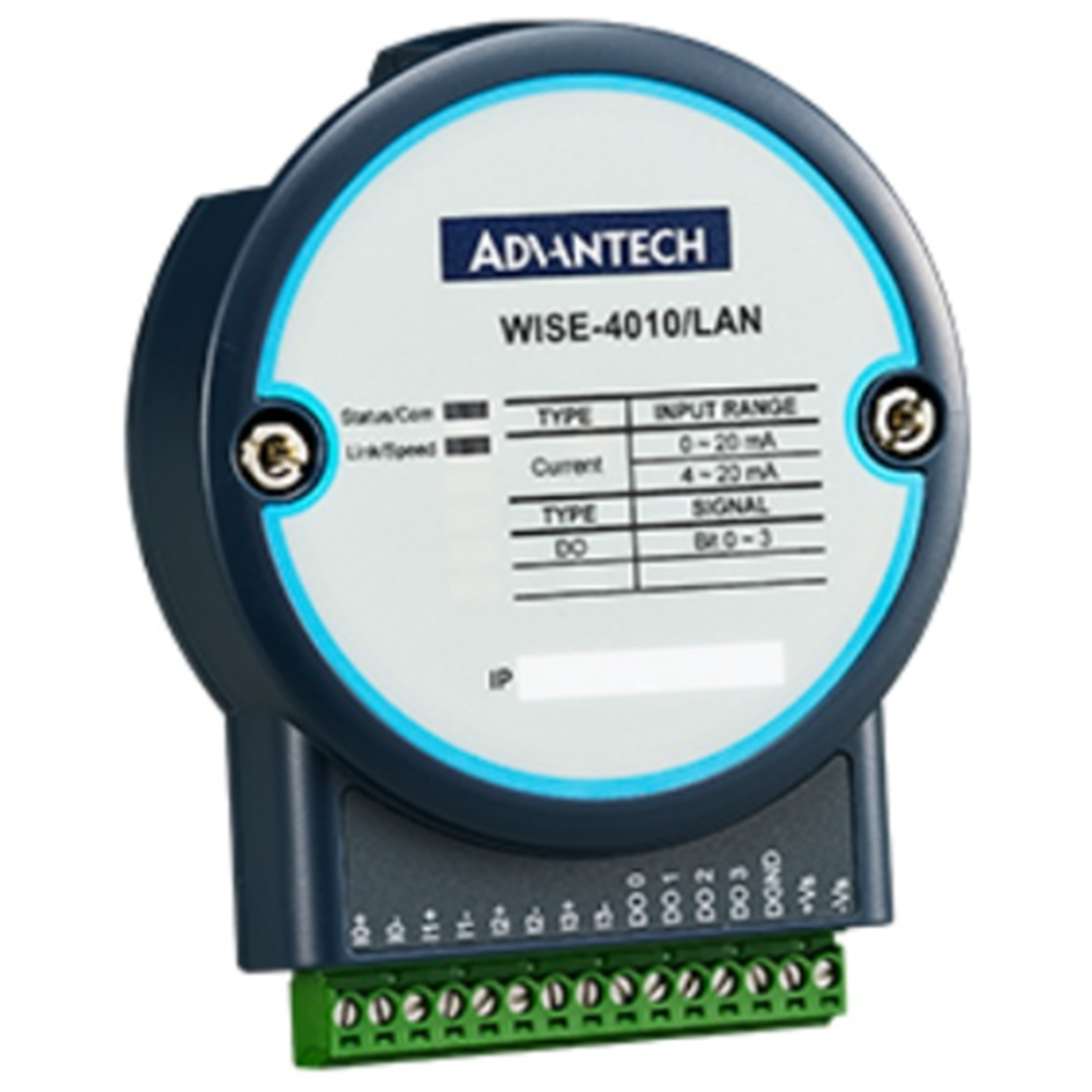

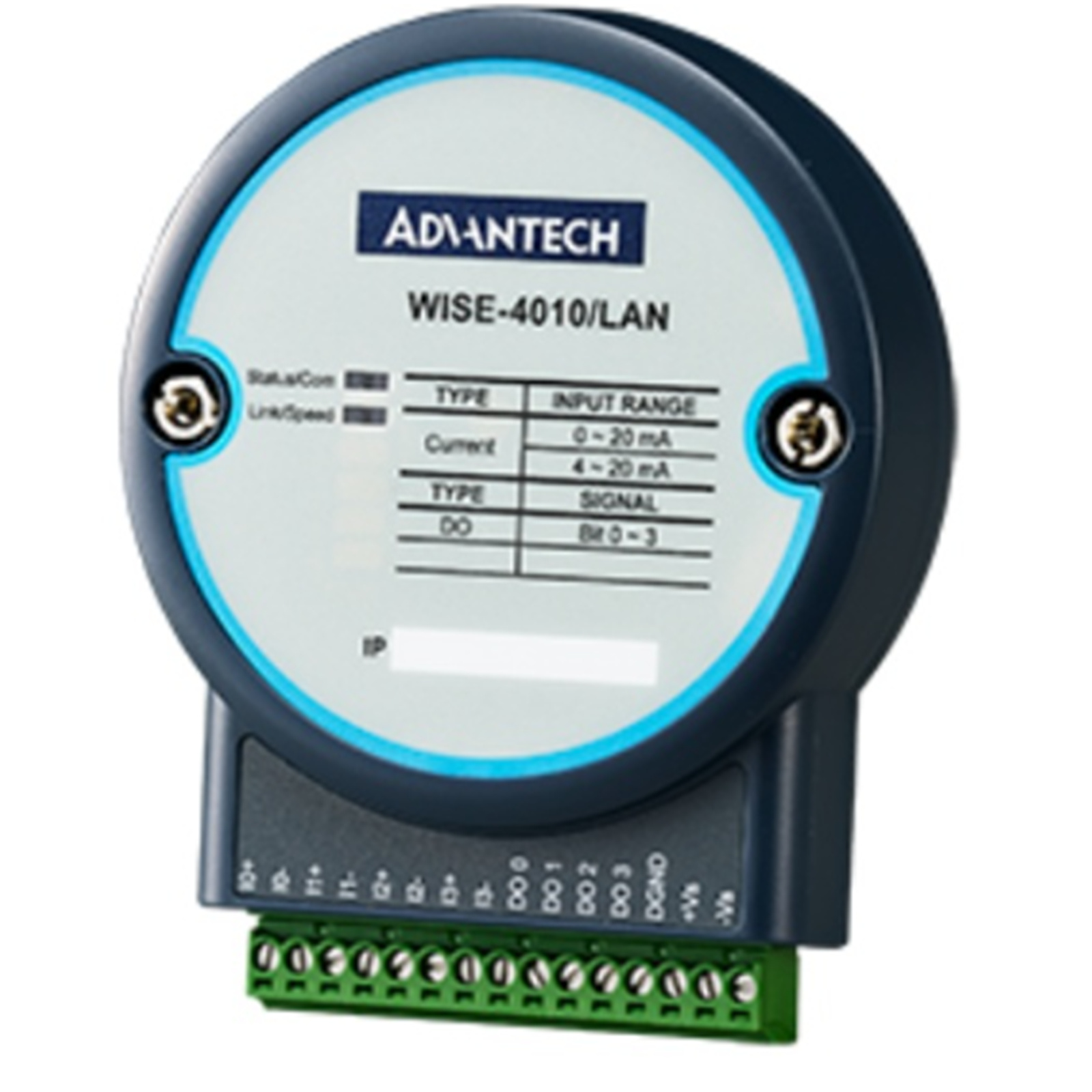

Advantech WISE-4010/LAN-AE 4CH CI / DO IOT LAN
- Brand: Advantech
- MPN: WISE-4010/LAN-AE
- Part #: IPCAVH130006

Product URL: https://www.pbtech.com/au/product/IPCAVH130006/Advantech-WISE-4010LAN-AE-4CH-CI--DO-IOT-LAN
Features
The WISE-4000LAN series is a newly designed IoT Ethernet I/O module which supports new RESTful web API for IoT applications. A HTML5 web configure interface enables users to configure WISE modules without the limitation of a platform or operation system.
- Supported protocols: Modbus/TCP, TCP/IP, UDP, DHCP, HTTP, MQTT
- Supports RESTful web API in JSON format
- Supports local logging with RTC time stamp
- Supports mobile device web configuration in HTML5
- Supports 10~30 VDC power with reverse protection
Specifications
Analog Input
Channels
4
Input Range
0~20 mA, 4~20 mA
lnput Type
mA
Resolution(Bits)
12-bit
Sampling Rates(S/s)
10/100 S/s (per channel)
Communications
Interface
Ethernet
Digital Output
Channels
4 (TTL)
Voltage Rating
0~30 VDC
Environment
Operating Temperature
-40~70 °C (-40~158 °F)
Storage Humidity
0~95% RH (non-condensing)
Storage Temperature
-40~85 °C (-40~185 °F)
General
Connectors
1 x RJ45, 1 x 15-pin plug-in screw terminal
Protocol
Modbus/TCP, TCP/IP, UDP, HTTP, DHCP
Power Requirements
Input Voltage
10~30 VDC
