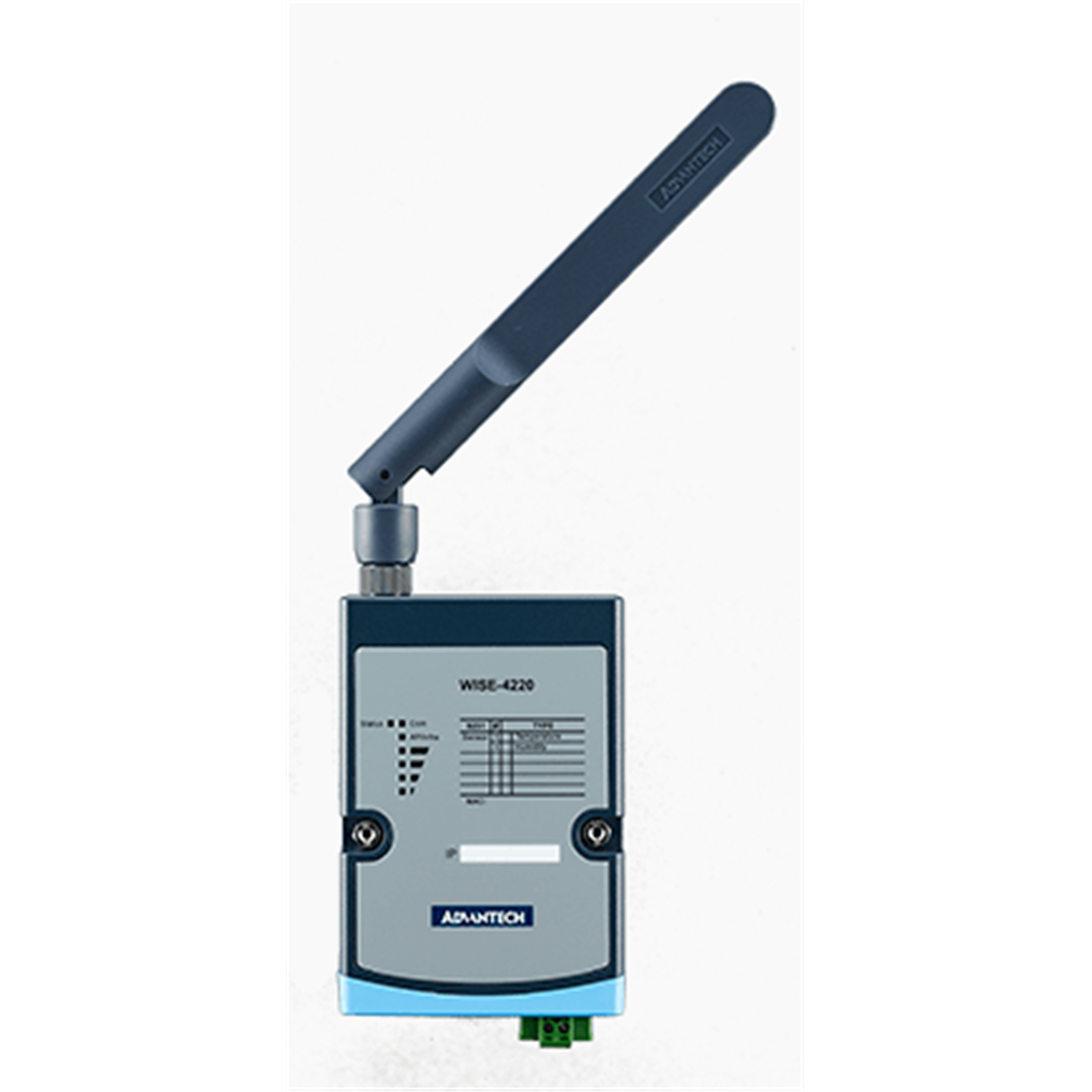

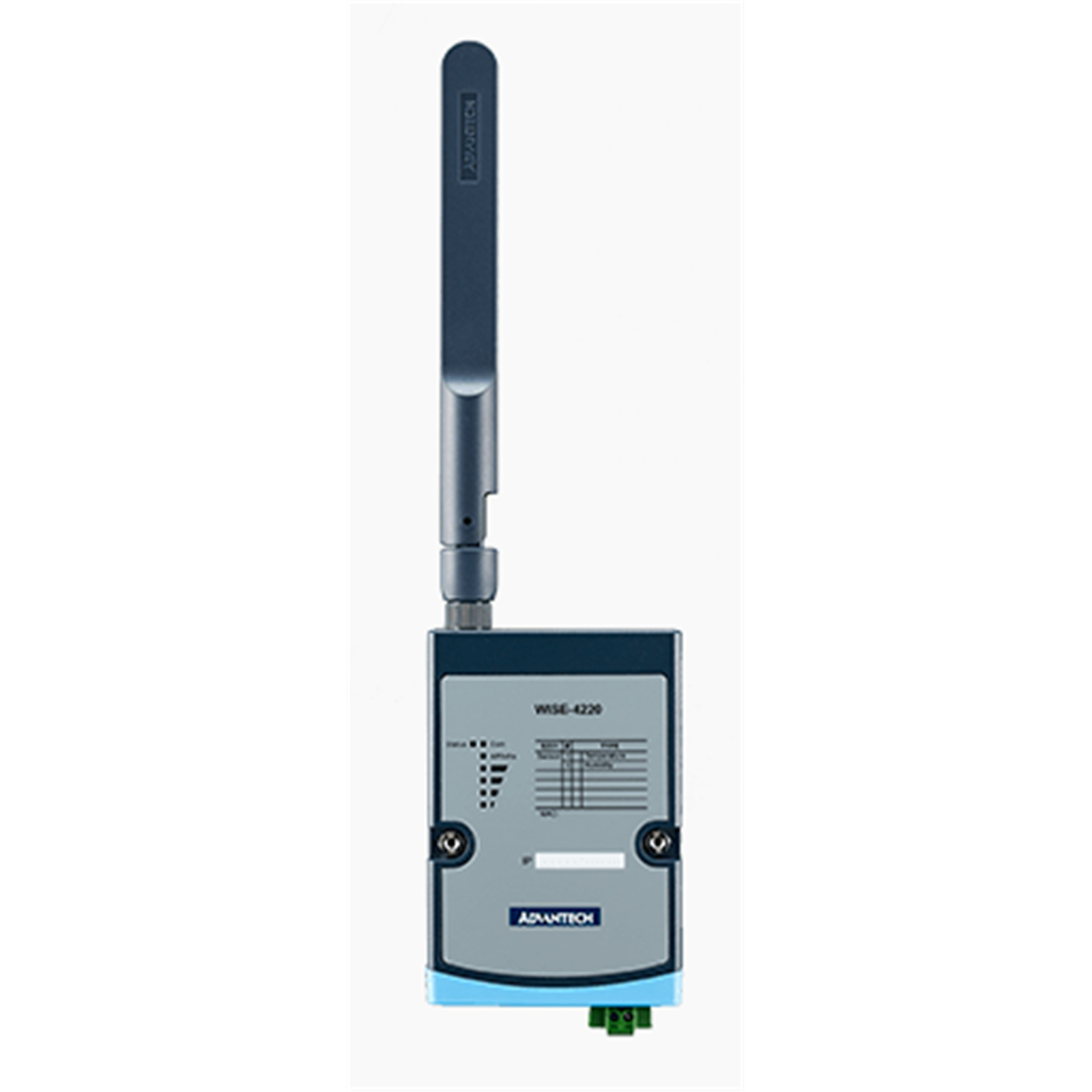

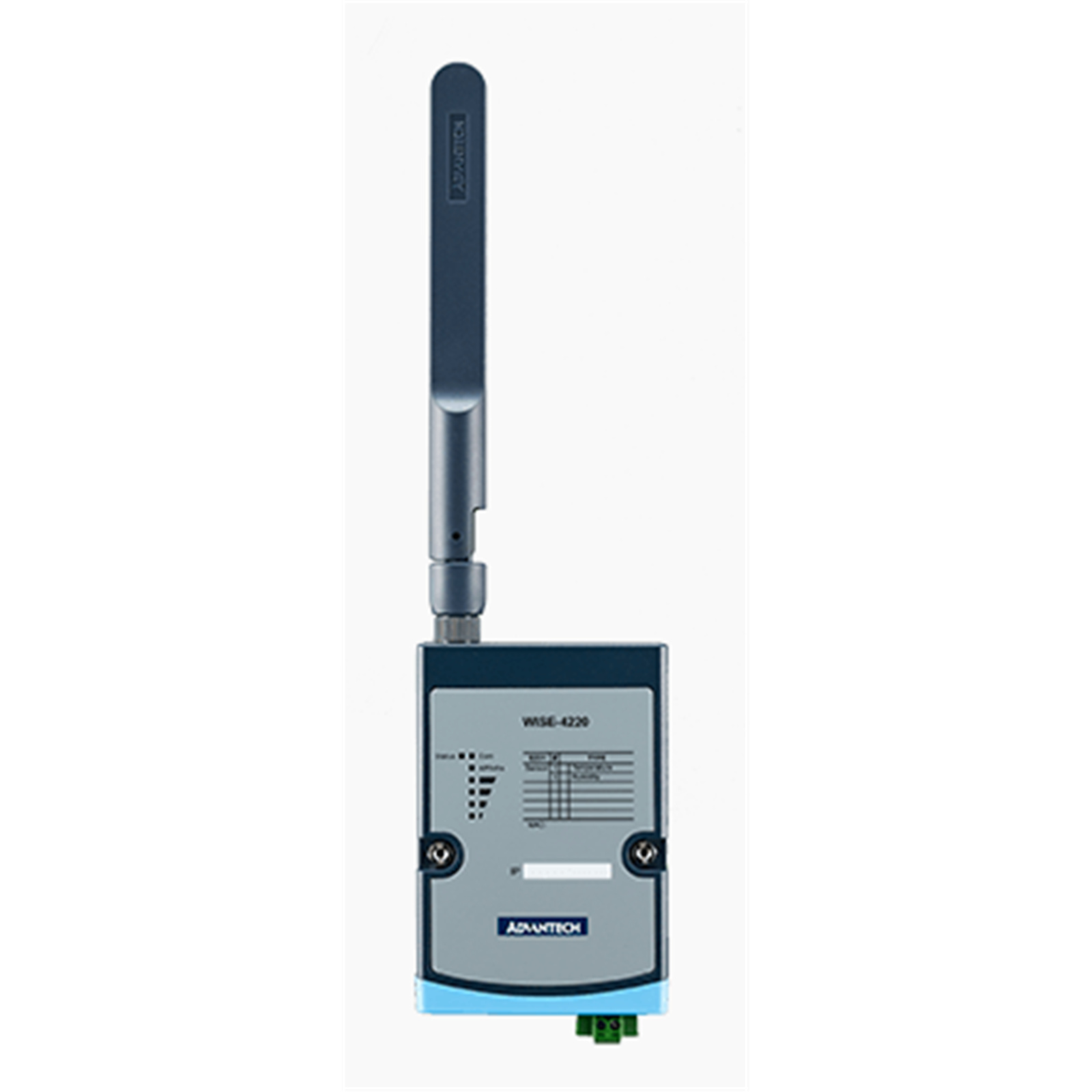

Advantech WISE-4220-S231A 2.4G WiFi IoT Wireless Module with Temperature & Humidity Sensor

PB Tech price

NZD $ 364 .04

$ 364 .04

Advantech WISE-4220-S231A 2.4G WiFi IoT Wireless Module with Temperature & Humidity Sensor

Brand: Advantech
MPN: WISE-4220-S231A
Part #: IPCAVH140008
UPC:

PB Tech price

NZD $ 364 .04

In stock at Supplier

Delivery: Order now and it ships on 26 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: WISE-4220-S231A
Part #: IPCAVH140008
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

- 2.4GHz Wi-Fi reducing the wiring cost during big data acquisition
- Easily extend the existing network by adding APs, and share existing Ethernet software
- Configured by mobile devices directly without installing any software or Apps
- Zero data loss using the log function with RTC time stamp
- Data can be automatically pushed to Dropbox or computer
- Supports RESTful web API in JSON format for IoT integration

Specifications

110m (L.O.S.)

IEEE 802.11b/g/n 2.4GHz

1.2 W @ 24 VDC

10 ~ 50 VDC

Power Reversal Protection

General

69 x 102 x 38 mm (without antenna)

DIN 35 rail, wall, and stack

RESTful Web API in JSON format, HTML5 Configuration Interface with JavaScript & CSS3

Support

System (1.6 second) & Communication (programmable)

Up to 10,000 samples with RTC time stamp

Protocol

Modbus/TCP, TCP/IP, UDP, HTTP, DHCP

Hardware

Certification

CE, FCC Class A, IC, NCC, SRRC, RCM, VCCI, TELEC

LED Indicators

Status, Line-power, Wireless Com, Initial/Normal, Signal Strength

Power Consumption

1.2 W @ 24 VDC

Power Input

10~50 VDC

Environment

Operating Temperature

-25~70 °C (-13~158 °F)

Relative Humidity

20~95% RH (non-condensing)

Storage Humidity

0~95% RH (non-condensing)

Storage Temperature

-40~85 °C (-40~185 °F)

Power Requirements

Input Voltage

10~50 VDC

Dimension (W x H x D)

70 x 102 x 38 mm

Enclosure

Mounting

DIN-rail, Wall, Pole, Stack

Weight (Net)

0.5 kg

±2.0°C (±35.6°F) (vertical installation)

0.1 (°C/°F/K)

-25°C ~ 70°C (-13°F ~ 157.9°F)

±4% RH @ 0%~50% RH, ±10% RH @ 50%~60% RH, ±13% RH @ 60%~90% RH

0.1% RH

10 ~ 90% RH

Wireless Communication

Frequency Band

IEEE 802.11 b/g/n 2.4 (GHz)

Standard(Technology)

WIFI

Thermocouple Input

Resolution

16-bit

Manufacturer Part No:

WISE-4220-S231A

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH140008

Product Model:

WISE-4220-S231A

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
