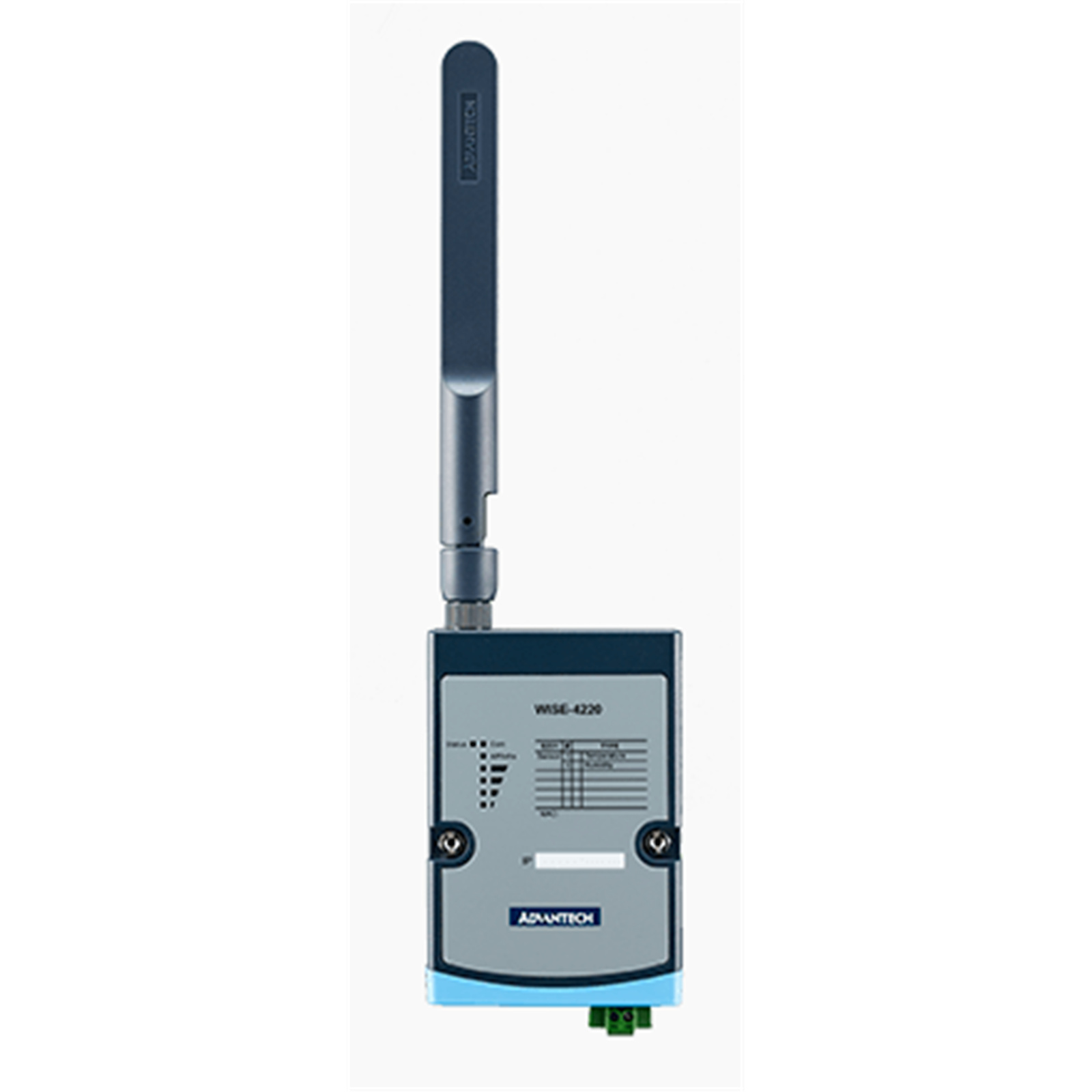

Advantech WISE-4220-S231A 2.4G WiFi IoT Wireless Module with Temperature & Humidity Sensor
- Brand: Advantech
- MPN: WISE-4220-S231A
- Part #: IPCAVH140008

Product URL: https://www.pbtech.com/au/product/IPCAVH140008/Advantech-WISE-4220-S231A-24G-WiFi-IoT-Wireless-Mo
Features
- Easily extend the existing network by adding APs, and share existing Ethernet software
- Configured by mobile devices directly without installing any software or Apps
- Zero data loss using the log function with RTC time stamp
- Data can be automatically pushed to Dropbox or computer
- Supports RESTful web API in JSON format for IoT integration
Specifications
110m (L.O.S.)
IEEE 802.11b/g/n 2.4GHz
1.2 W @ 24 VDC
10 ~ 50 VDC
Power Reversal Protection
General
69 x 102 x 38 mm (without antenna)
DIN 35 rail, wall, and stack
PC
RESTful Web API in JSON format, HTML5 Configuration Interface with JavaScript & CSS3
Support
Support
Support
System (1.6 second) & Communication (programmable)
Up to 10,000 samples with RTC time stamp
Protocol
Modbus/TCP, TCP/IP, UDP, HTTP, DHCP
Hardware
Certification
CE, FCC Class A, IC, NCC, SRRC, RCM, VCCI, TELEC
LED Indicators
Status, Line-power, Wireless Com, Initial/Normal, Signal Strength
Power Consumption
1.2 W @ 24 VDC
Power Input
10~50 VDC
Environment
Operating Temperature
-25~70 °C (-13~158 °F)
Relative Humidity
20~95% RH (non-condensing)
Storage Humidity
0~95% RH (non-condensing)
Storage Temperature
-40~85 °C (-40~185 °F)
Power Requirements
Input Voltage
10~50 VDC
Dimension (W x H x D)
70 x 102 x 38 mm
Enclosure
PC
Mounting
DIN-rail, Wall, Pole, Stack
Weight (Net)
0.5 kg
±2.0°C (±35.6°F) (vertical installation)
0.1 (°C/°F/K)
-25°C ~ 70°C (-13°F ~ 157.9°F)
±4% RH @ 0%~50% RH, ±10% RH @ 50%~60% RH, ±13% RH @ 60%~90% RH
0.1% RH
10 ~ 90% RH
Wireless Communication
Frequency Band
IEEE 802.11 b/g/n 2.4 (GHz)
Standard(Technology)
WIFI
Thermocouple Input
Resolution
16-bit
