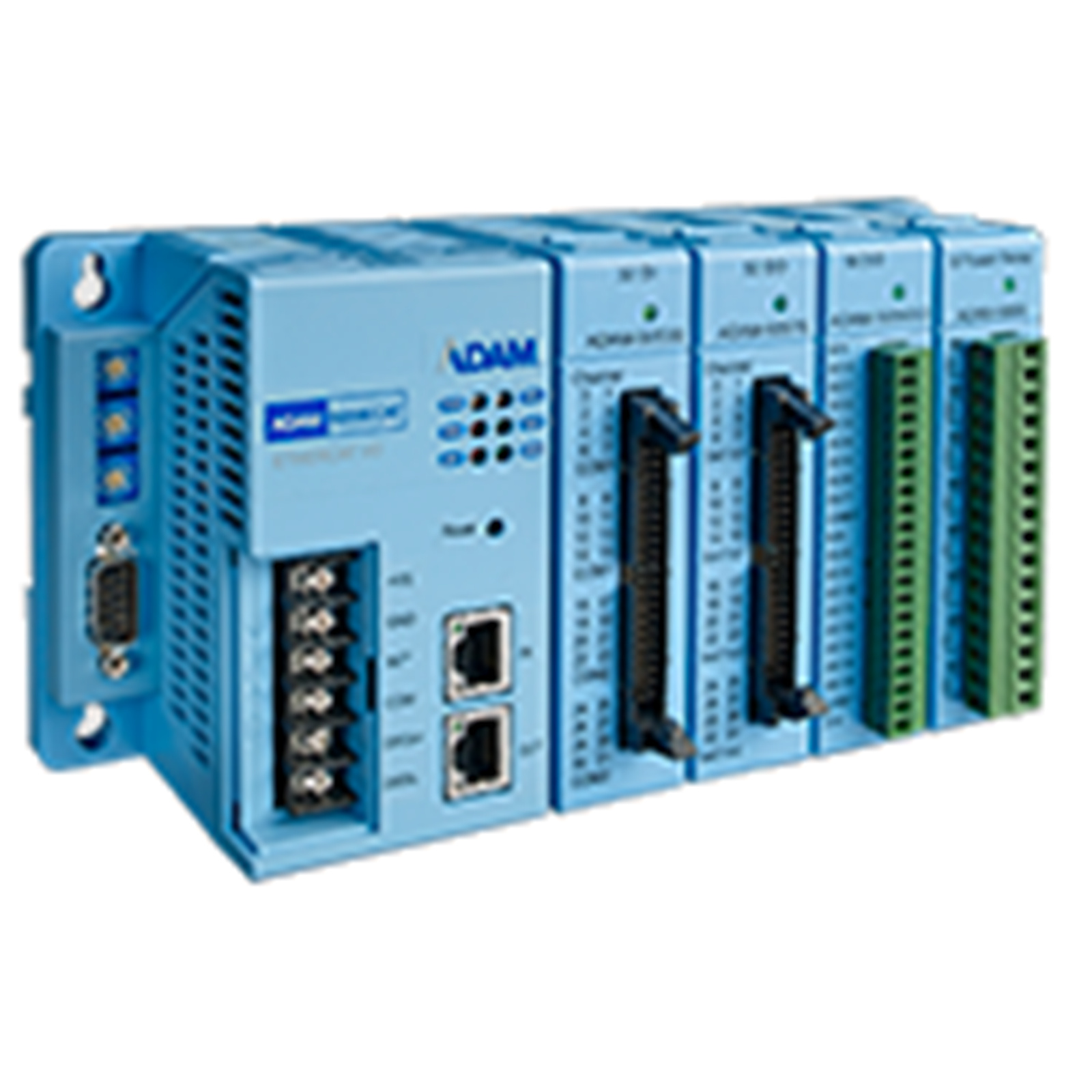

Advantech ADAM-5000/ECAT-AE 4-slot Distributed High Speed I/O System for EtherCAT
- Brand: Advantech
- MPN: ADAM-5000/ECAT-AE
- Part #: IPCAVH220098

Product URL: https://www.pbtech.com/pacific/product/IPCAVH220098/Advantech-ADAM-5000ECAT-AE-4-slot-Distributed-High
Features
- 32-bit ARM RISC Processor
- 4 slots with various digital and analog I/O modules is just a single EtherCAT node on the network
- Supports EtherCAT Distributed Clock (DC) mode and SyncManager mode
- Supports the Modular Device Profile (MDP) when all modules are a pure I/O function
- Configure I/O module parameters and upgrade via a utility
- Node addresses can be fixed by rotary switches, or set by software
- Compatible with Advantech Common Motion SDK or other EtherCAT master through ENI file generation
- 8-bit DIP switch for Mode setting and three rotate switch for up to 4,096 slave IDs (x1, x10, x100)
Specifications
Control System
CPU
32-bit ARM RISC Processor
I/O Slots
4
Memory
Flash ROM: 64M SPI
RAM: 4G DDR3
?LED Indicators
Power LED
System status LED
EtherCAT RUN LED
EtherCAT ERROR LED
EtherCAT Port 0 LINK LED
EtherCAT Port 1 LINK LED
Communications
Data Transfer Rate
Up to 100 Mbps
Communication Cycle Time
100 us
Interface
2 x RJ-45
Wiring
UTP, category 5 or greater
Power
Power Consumption
2.5 W @ 24 VDC(not including I/O modules)
Power Input
10 ~ 30 VDC
Software
?API
Advantech Common Motion Library
Windows Utility
Network setting, I/O configuration
Protection
I/O Module Isolation
3.000 VDC
?LAN Communication
1.500 VDC
Overvoltage Protection
Yes
Power Reversal
Yes
General
Certification
CE, FCC class A
Connectors
1 x Screw-terminal for RS-485 (communication)
1 x DB9-M for RS-232 (internal use)
1 x Screw-terminal for power input
2 x RJ-45 for LAN
Dimensions (W x H x D)
231 x 110 x 75 mm
Mounting
DIN-rail, wall
Environment
Operating Humidity
5 ~ 95%, non-condensing
Operating Temperature
- 10 ~ 70°C (14 ~ 158°F)
Storage Temperature
- 25 ~ 85°C (-13 ~ 185°F)
