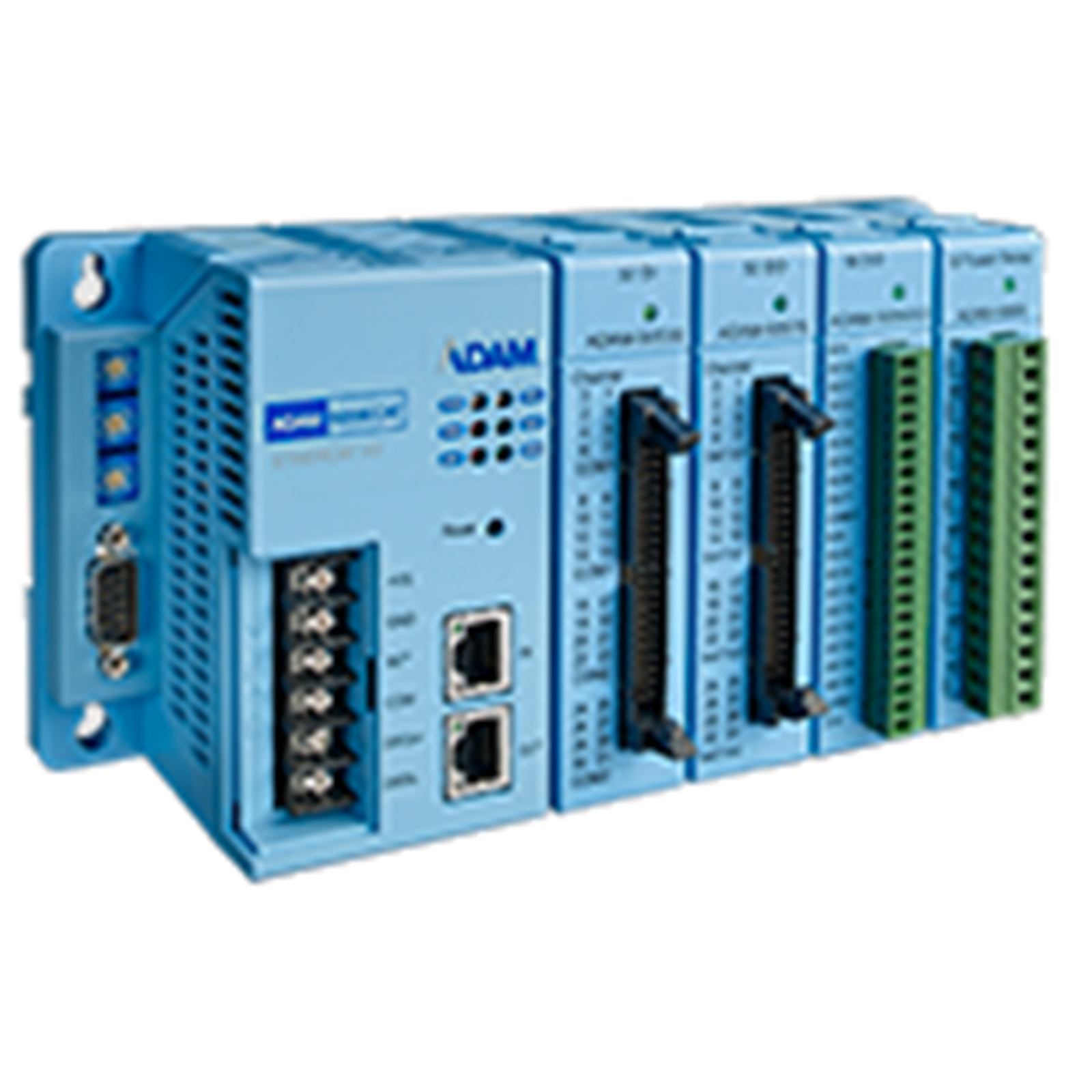

Advantech ADAM-5000/ECAT-AE 4-slot Distributed High Speed I/O System for EtherCAT

  • Brand: Advantech
  • MPN: ADAM-5000/ECAT-AE
  • Part #: IPCAVH220098
  • UPC:
PB Tech price
$ 493 .77 $ 543 .15
 +GST  inc GST


Delivery: Order now and it ships on 25 Sep
Express Delivery Times
Metro - Within 2-3 working days
Rural - Within 3-5 working days

Standard Delivery Times
NSW, VIC, ACT, QLD - Within 3-7 working days
SA, WA, TAS, NT - Within 5-10 working days

View all shipping info
$493.77  +GST
$543.15

Features

- 32-bit ARM RISC Processor

- 4 slots with various digital and analog I/O modules is just a single EtherCAT node on the network

- Supports EtherCAT Distributed Clock (DC) mode and SyncManager mode

- Supports the Modular Device Profile (MDP) when all modules are a pure I/O function

- Configure I/O module parameters and upgrade via a utility

- Node addresses can be fixed by rotary switches, or set by software

- Compatible with Advantech Common Motion SDK or other EtherCAT master through ENI file generation

- 8-bit DIP switch for Mode setting and three rotate switch for up to 4,096 slave IDs (x1, x10, x100)

Specifications

Control System

CPU

32-bit ARM RISC Processor

I/O Slots

4

Memory

Flash ROM: 64M SPI
RAM: 4G DDR3

?LED Indicators

Power LED
System status LED
EtherCAT RUN LED
EtherCAT ERROR LED
EtherCAT Port 0 LINK LED
EtherCAT Port 1 LINK LED

Communications

Data Transfer Rate

Up to 100 Mbps

Communication Cycle Time

100 us

Interface

2 x RJ-45

Wiring

UTP, category 5 or greater

Power

Power Consumption

2.5 W @ 24 VDC(not including I/O modules)

Power Input

10 ~ 30 VDC

Software

?API

Advantech Common Motion Library

Windows Utility

Network setting, I/O configuration

Protection

I/O Module Isolation

3.000 VDC

?LAN Communication

1.500 VDC

Overvoltage Protection

Yes

Power Reversal

Yes

General

Certification

CE, FCC class A

Connectors

1 x Screw-terminal for RS-485 (communication)
1 x DB9-M for RS-232 (internal use)
1 x Screw-terminal for power input
2 x RJ-45 for LAN

Dimensions (W x H x D)

231 x 110 x 75 mm

Mounting

DIN-rail, wall

Environment

Operating Humidity

5 ~ 95%, non-condensing

Operating Temperature

- 10 ~ 70°C (14 ~ 158°F)

Storage Temperature

- 25 ~ 85°C (-13 ~ 185°F)

Manufacturer Part No:
ADAM-5000/ECAT-AE
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCAVH220098
Product Model:
ADAM-5000/ECAT-AE
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
