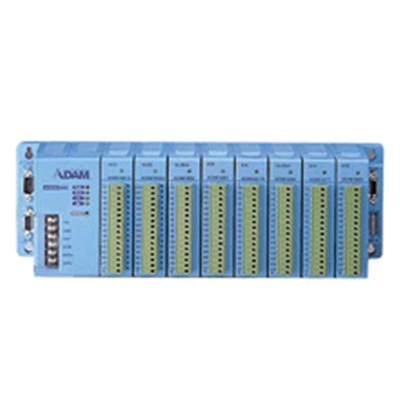

Advantech ADAM-5000E-AE 8 slot Remote I/O System with Modbus RS-485

PB Tech price
PB Tech price
NZD $ 698 .80
$ 698 .80
$698.80  +GST
$698.80

Advantech ADAM-5000E-AE 8 slot Remote I/O System with Modbus RS-485

  • Brand: Advantech
  • MPN: ADAM-5000E-AE
  • Part #: IPCAVH220100
  • UPC:
PB Tech price
NZD $ 698 .80 $ 698 .80


Delivery: Order now and it ships on 26 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$698.80  +GST
$698.80

Features

ADAM-5000E

8-slot Distributed DA&C System for RS-485

- RS-485 communication for easy installation and networking
- 8 slots for up to 128 points data monitoring card control in one module
- Supports ADAM ASCII protocol or Modbus®/RTU protocol
- Supports Modbus/RTU protocol with user-defined Modbus address
- Extensive software support, includes windows DLL drivers, OCX drivers, OPC server and popular HMI/SCADA software drivers
- Seamlessly integrated with easy-to-use ADAMView data acquisition software

Specifications

Control System

CPU

16-bit 80188 microprocessor

I/O Slots

ADAM-5000E: 8

LED Indicators

Power, CPU, communications

Watchdog Timer

1.6 sec. (System)

Communications

Command Format

ASCII command/response protocol, Modbus/RTU

Communication Distance

RS-485: 1.2 km (4000 feet)

Data Format

Asynchronous. 1 start bit, 8 data bits, 1 stop bit, no parity

Network Protocols

Programming link: RS-232 (3-wire: TX, RX, GND)
Communication: RS-485 (2-wire)

Reliability Check

Communication error checking with checksum

Max. Nodes

128 (in RS-485 daisy-chain network)

Speeds (kbps)

1.2, 2.4, 4.8, 9.6, 19.2, 38.4, 57.6, and 115.2

Power

Power Consumption

4.0 W @ 24 VDC (ADAM-5000E) (not including I/O modules)

Power Input

Unregulated 10 ~ 30 VDC

Software

Software

- Driver Support Windows DLL, OPC Server, Wonderware InTouch, Intellution, iFIX, Citect, Advantech Studio, ADAMView
- C and .NET Class Library

Protection

Communication Line

2,500 VDC (ADAM-5000/485)

Isolation

3,000 VDC (ADAM-5000E)

I/O Module Isolation

3,000 VDC

Transient Protection

RS-485 communication lines, power input

Power Reversal Protection

Yes

General

Certification

CE, FM

Connectors

1 x DB9-M/DB9-F/screw terminal for RS-485 (communication)
1 x DB9-F for RS-232 (configuration)
1 x Screw-terminal for power input

Dimensions (WxHxD)

4-slot: 231 x 110 x 75 mm
8-slot: 355 x 110 x 75 mm

Enclosure

ABS+PC

Mounting

DIN-rail, wall, rack (with mounting kit)

Environment

Humidity

5 ~ 95%, non-condensing

Operating Temperature

-10 ~ 70°C (14 ~ 158°F)

Storing Temperature

-25 ~ 85°C (-13 ~ 185°F)

Manufacturer Part No:
ADAM-5000E-AE
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCAVH220100
Product Model:
ADAM-5000E-AE
Warranty: 12 months *
