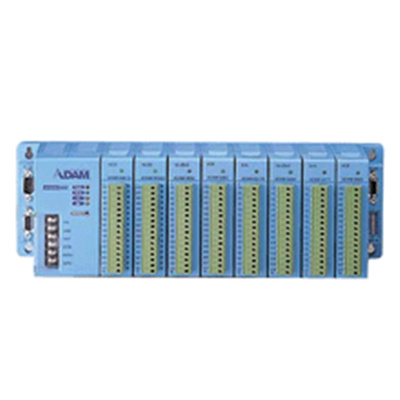

Advantech ADAM-5000E-AE 8 slot Remote I/O System with Modbus RS-485
- Brand: Advantech
- MPN: ADAM-5000E-AE
- Part #: IPCAVH220100

Product URL: https://www.pbtech.com/au/product/IPCAVH220100/Advantech-ADAM-5000E-AE-8-slot-Remote-IO-System-wi
Features
ADAM-5000E
8-slot Distributed DA&C System for RS-485
- RS-485 communication for easy installation and networking
- 8 slots for up to 128 points data monitoring card control in one module
- Supports ADAM ASCII protocol or Modbus®/RTU protocol
- Supports Modbus/RTU protocol with user-defined Modbus address
- Extensive software support, includes windows DLL drivers, OCX drivers, OPC server and popular HMI/SCADA software drivers
- Seamlessly integrated with easy-to-use ADAMView data acquisition software
Specifications
Control System
CPU
16-bit 80188 microprocessor
I/O Slots
ADAM-5000E: 8
LED Indicators
Power, CPU, communications
Watchdog Timer
1.6 sec. (System)
Communications
Command Format
ASCII command/response protocol, Modbus/RTU
Communication Distance
RS-485: 1.2 km (4000 feet)
Data Format
Asynchronous. 1 start bit, 8 data bits, 1 stop bit, no parity
Network Protocols
Programming link: RS-232 (3-wire: TX, RX, GND)
Communication: RS-485 (2-wire)
Reliability Check
Communication error checking with checksum
Max. Nodes
128 (in RS-485 daisy-chain network)
Speeds (kbps)
1.2, 2.4, 4.8, 9.6, 19.2, 38.4, 57.6, and 115.2
Power
Power Consumption
4.0 W @ 24 VDC (ADAM-5000E) (not including I/O modules)
Power Input
Unregulated 10 ~ 30 VDC
Software
Software
- Driver Support Windows DLL, OPC Server, Wonderware InTouch, Intellution, iFIX, Citect, Advantech Studio, ADAMView
- C and .NET Class Library
Protection
Communication Line
2,500 VDC (ADAM-5000/485)
Isolation
3,000 VDC (ADAM-5000E)
I/O Module Isolation
3,000 VDC
Transient Protection
RS-485 communication lines, power input
Power Reversal Protection
Yes
General
Certification
CE, FM
Connectors
1 x DB9-M/DB9-F/screw terminal for RS-485 (communication)
1 x DB9-F for RS-232 (configuration)
1 x Screw-terminal for power input
Dimensions (WxHxD)
4-slot: 231 x 110 x 75 mm
8-slot: 355 x 110 x 75 mm
Enclosure
ABS+PC
Mounting
DIN-rail, wall, rack (with mounting kit)
Environment
Humidity
5 ~ 95%, non-condensing
Operating Temperature
-10 ~ 70°C (14 ~ 158°F)
Storing Temperature
-25 ~ 85°C (-13 ~ 185°F)
