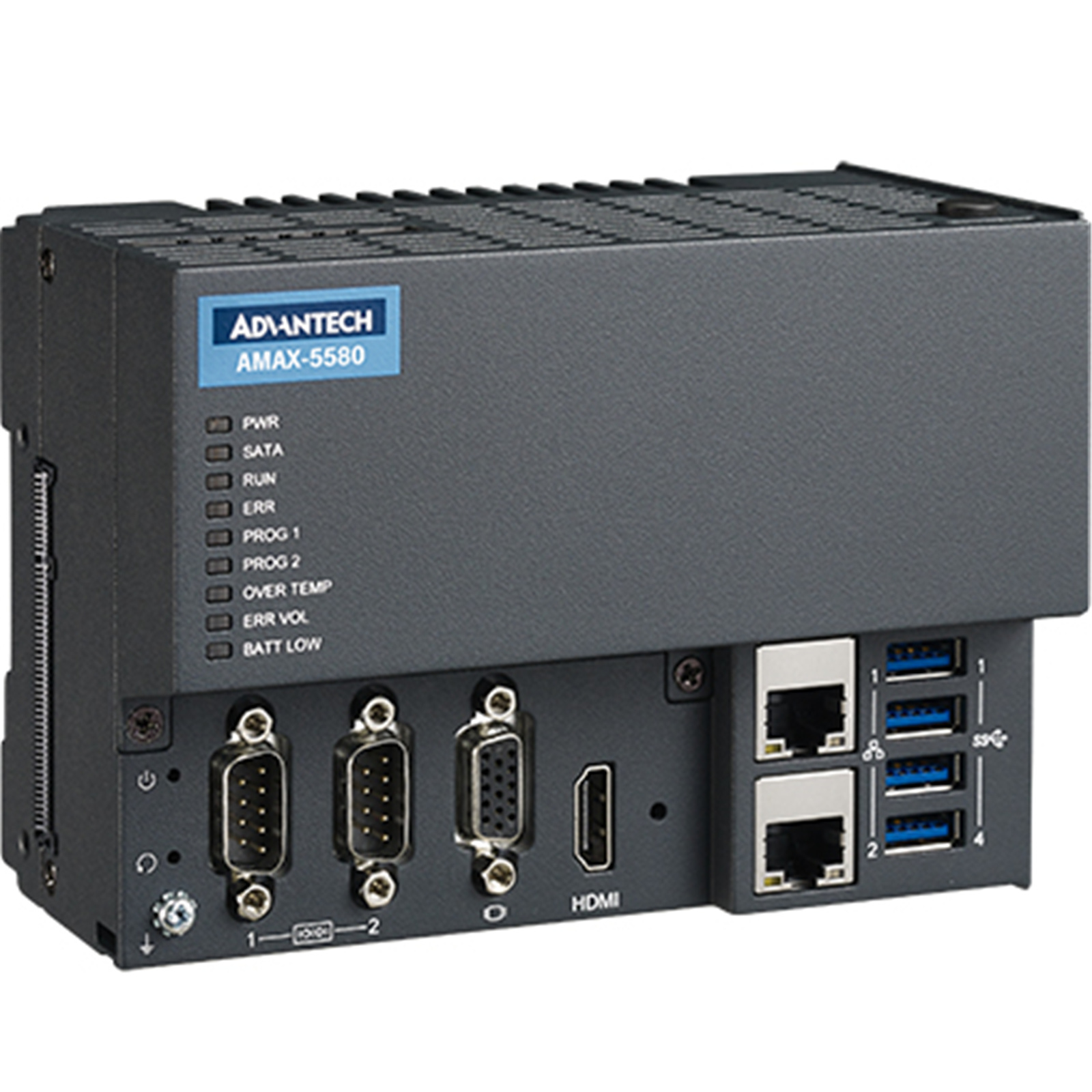

Advantech AMAX-5580-54000A Intel Core i7/i5/Celeron Control IPC With EtherCAT Slice IO Expansion

PB Tech price
PB Tech price
NZD $ 3,100 .00
$ 3,100 .00
$3,100.00  +GST
$3,100.00

Advantech AMAX-5580-54000A Intel Core i7/i5/Celeron Control IPC With EtherCAT Slice IO Expansion

  • Brand: Advantech
  • MPN: AMAX-5580-54000A
  • Part #: IPCAVH220199
  • UPC:
PB Tech price
NZD $ 3,100 .00 $ 3,100 .00


Delivery: Order now and it ships on 25 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$3,100.00  +GST
$3,100.00

Features

Intel® Core™ i7/i5/Celeron® Control IPC With EtherCAT Slice IO Expansion

Advantech's AMAX-5580 is a compact and powerful Control IPC with an Intel Core i7/i5/Celeron CPU. It is the ideal open control platform to be combined with AMAX-5000 Series EtherCAT Slice IO modules, and features flexible I/O expansion, network capability through various interfaces, and support dual power input for robust power system. It has a built-in standard mPCIe interface for communication module like NVRAM or Wifi module. AMAX-5580 is the best solution for Data collection, transmission, control and analysis application. Seamless integration with I/O can reduce costs and fulfill diverse range of automation projects.

- 6th generation Intel® Core™ i7/i5/Celeron processors up to 2.6 GHz with 4GB/8GB DDR4 memory
- 2 x GbE, 4 x USB 3.0, 2 x RS-232 /422/485, 1 x VGA, 1 x HDMI
- Dual power input with alarm output
- Compact and fanless design for DIN-rail mount in Control cabinet
- Maximum 4 expansion capability on left side for AMAX-54XX series module
- Wireless mPCIe module support for 3G/LTE/Wifi/GPS
- Chassis grounding protection
- Independent resource on Intel i210 GbE for better EtherCAT performance
- Upstream LAN redundancy (Intel Teaming Function)

Specifications

General

?Certification

CE, FCC, UL

Dimensions (W x H x D)

139 x 100 x 80 mm

Form Factor

Fanless and passive cooling

Enclosure

Aluminum housing

Mounting

DIN-rail

Weight (Net)

1.3 kg

Power Requirement

24 VDC ± 20%

Power Consumption

15 W (Typical), 42 W (Max)

OS Support

Windows 7 32/64 bit, Windows 10 64bit, UbuntuLinux

System Hardware

?BIOS

AMI EFI 128Mbit Flash BIOS

Watchdog Timer

Programmable 255 levels timer interval, from 1 to 255 sec

Processor

Intel® Core™ i7-6600U 2.6GHz Dual Core, 4MB L2
Intel® Core™ i5-6300U 2.4GHz Dual Core, 3MB L2
Intel® Celeron 3955U 2.0GHz Dual Core, 2MB L2

System Chip

Integrated PCH-LP

Memory

Dual DDR4, default 4G*1 for Celeron and 4G*2 for i5/i7

Graphics Engine

Intel® Gen 9 LP GT2

Ethernet

Intel® i210-IT GbE, 802.1Qav, IEEE1588/802.1AS, 802.3az

LED Indicators

Power, Storage, Battery, and 2x programmable LEDs

Storage

1 x M.2 2280 M-Key slot (SATA Signal only)

Expansion

1 x Full-size mPCIe Slot (USB2 or PCIe Signal)
AMAX-5400 function modules from left side (max. 4)
AMAX-5000 EtherCAT Slice IO from right side
(necessary add 1 x AMAX-5001 power module

I/O Interfaces

Serial Ports

2 x RS-232/422/485, DB9, 50 ~ 115.2kbps

LAN Ports

2 x RJ45, 10/100/1000 Mbps

USB Ports

4 x USB ports (4 x USB 3.0 compliant )
1 x internal USB

Display

1 x VGA, support up to 1920 x 1200 @ 60 Hz 24 bpp
1 x HDMI, support up to 4096 x 2160 @ 24Hz 24bpp

Power Connector

Dual power input with alarm output

Grounding Protection

Chassis ground isolation

Environment

Operating Temperature

-10 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s

Storage Temperature

-40 ~ 85°C (-40 ~ 185°F)

Relative Humidity

95% RH @ 40°C, non-condensing

Shock Protection

Operating, IEC 60068-2-27, 10G, half sine, 11 ms

Vibration Protection

Operating, IEC 60068-2-64, 1 Grms, random, 5 ~ 500 Hz,
1hr/axis (M.2)

Manufacturer Part No:
AMAX-5580-54000A
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCAVH220199
Product Model:
AMAX-5580-54000A
Warranty: 12 months *
