Advantech AMAX-5580-54000A Intel Core i7/i5/Celeron Control IPC With EtherCAT Slice IO Expansion
- Brand: Advantech
- MPN: AMAX-5580-54000A
- Part #: IPCAVH220199

Product URL: https://www.pbtech.com/au/product/IPCAVH220199/Advantech-AMAX-5580-54000A-Intel-Core-i7i5Celeron
Features

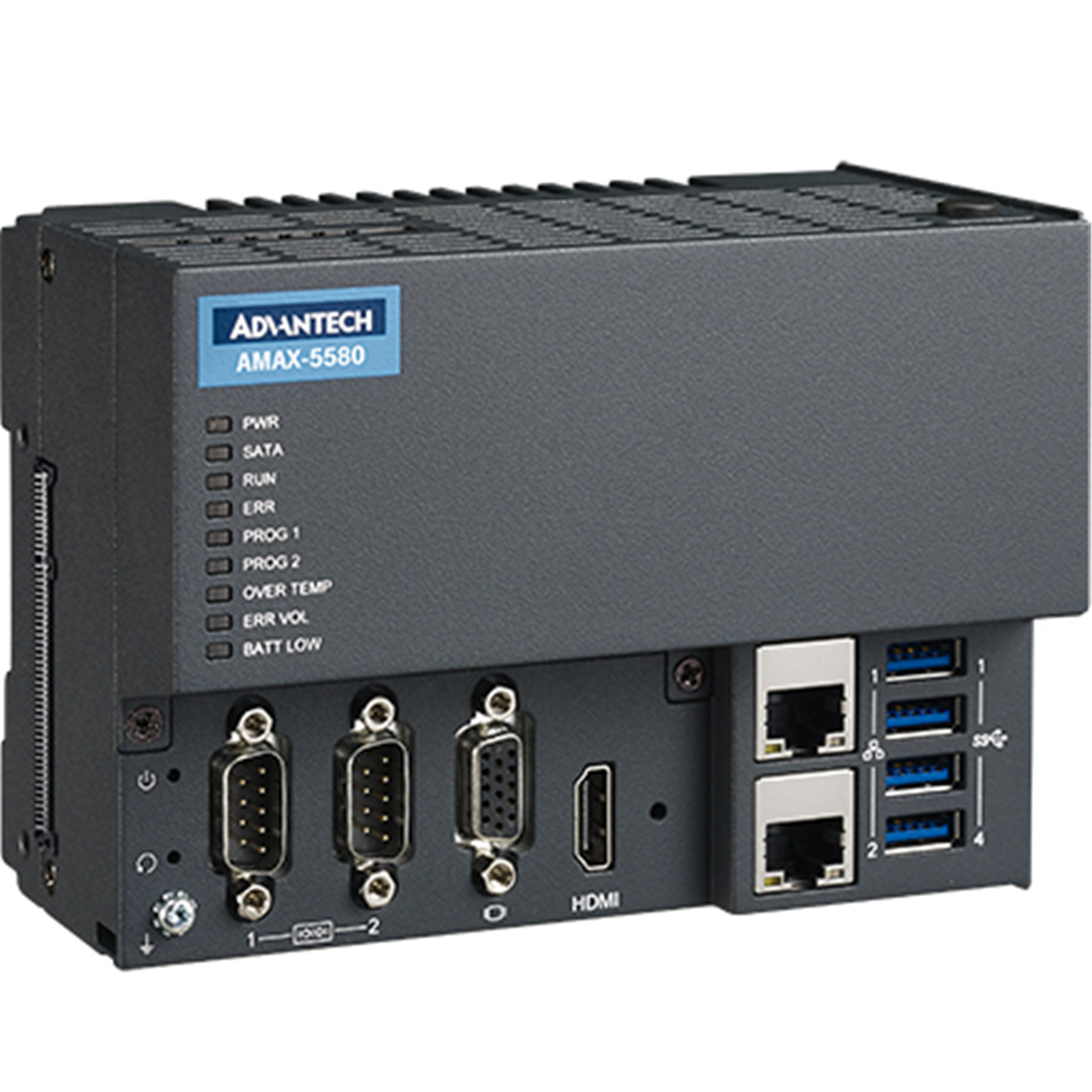

Intel® Core™ i7/i5/Celeron® Control IPC With EtherCAT Slice IO Expansion
Advantech's AMAX-5580 is a compact and powerful Control IPC with an Intel Core i7/i5/Celeron CPU. It is the ideal open control platform to be combined with AMAX-5000 Series EtherCAT Slice IO modules, and features flexible I/O expansion, network capability through various interfaces, and support dual power input for robust power system. It has a built-in standard mPCIe interface for communication module like NVRAM or Wifi module. AMAX-5580 is the best solution for Data collection, transmission, control and analysis application. Seamless integration with I/O can reduce costs and fulfill diverse range of automation projects.
- 6th generation Intel® Core™ i7/i5/Celeron processors up to 2.6 GHz with 4GB/8GB DDR4 memory
- 2 x GbE, 4 x USB 3.0, 2 x RS-232 /422/485, 1 x VGA, 1 x HDMI
- Dual power input with alarm output
- Compact and fanless design for DIN-rail mount in Control cabinet
- Maximum 4 expansion capability on left side for AMAX-54XX series module
- Wireless mPCIe module support for 3G/LTE/Wifi/GPS
- Chassis grounding protection
- Independent resource on Intel i210 GbE for better EtherCAT performance
- Upstream LAN redundancy (Intel Teaming Function)
Specifications
General
?Certification
CE, FCC, UL
Dimensions (W x H x D)
139 x 100 x 80 mm
Form Factor
Fanless and passive cooling
Enclosure
Aluminum housing
Mounting
DIN-rail
Weight (Net)
1.3 kg
Power Requirement
24 VDC ± 20%
Power Consumption
15 W (Typical), 42 W (Max)
OS Support
Windows 7 32/64 bit, Windows 10 64bit, UbuntuLinux
System Hardware
?BIOS
AMI EFI 128Mbit Flash BIOS
Watchdog Timer
Programmable 255 levels timer interval, from 1 to 255 sec
Processor
Intel® Core™ i7-6600U 2.6GHz Dual Core, 4MB L2
Intel® Core™ i5-6300U 2.4GHz Dual Core, 3MB L2
Intel® Celeron 3955U 2.0GHz Dual Core, 2MB L2
System Chip
Integrated PCH-LP
Memory
Dual DDR4, default 4G*1 for Celeron and 4G*2 for i5/i7
Graphics Engine
Intel® Gen 9 LP GT2
Ethernet
Intel® i210-IT GbE, 802.1Qav, IEEE1588/802.1AS, 802.3az
LED Indicators
Power, Storage, Battery, and 2x programmable LEDs
Storage
1 x M.2 2280 M-Key slot (SATA Signal only)
Expansion
1 x Full-size mPCIe Slot (USB2 or PCIe Signal)
AMAX-5400 function modules from left side (max. 4)
AMAX-5000 EtherCAT Slice IO from right side
(necessary add 1 x AMAX-5001 power module
I/O Interfaces
Serial Ports
2 x RS-232/422/485, DB9, 50 ~ 115.2kbps
LAN Ports
2 x RJ45, 10/100/1000 Mbps
USB Ports
4 x USB ports (4 x USB 3.0 compliant )
1 x internal USB
Display
1 x VGA, support up to 1920 x 1200 @ 60 Hz 24 bpp
1 x HDMI, support up to 4096 x 2160 @ 24Hz 24bpp
Power Connector
Dual power input with alarm output
Grounding Protection
Chassis ground isolation
Environment
Operating Temperature
-10 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
Relative Humidity
95% RH @ 40°C, non-condensing
Shock Protection
Operating, IEC 60068-2-27, 10G, half sine, 11 ms
Vibration Protection
Operating, IEC 60068-2-64, 1 Grms, random, 5 ~ 500 Hz,
1hr/axis (M.2)
