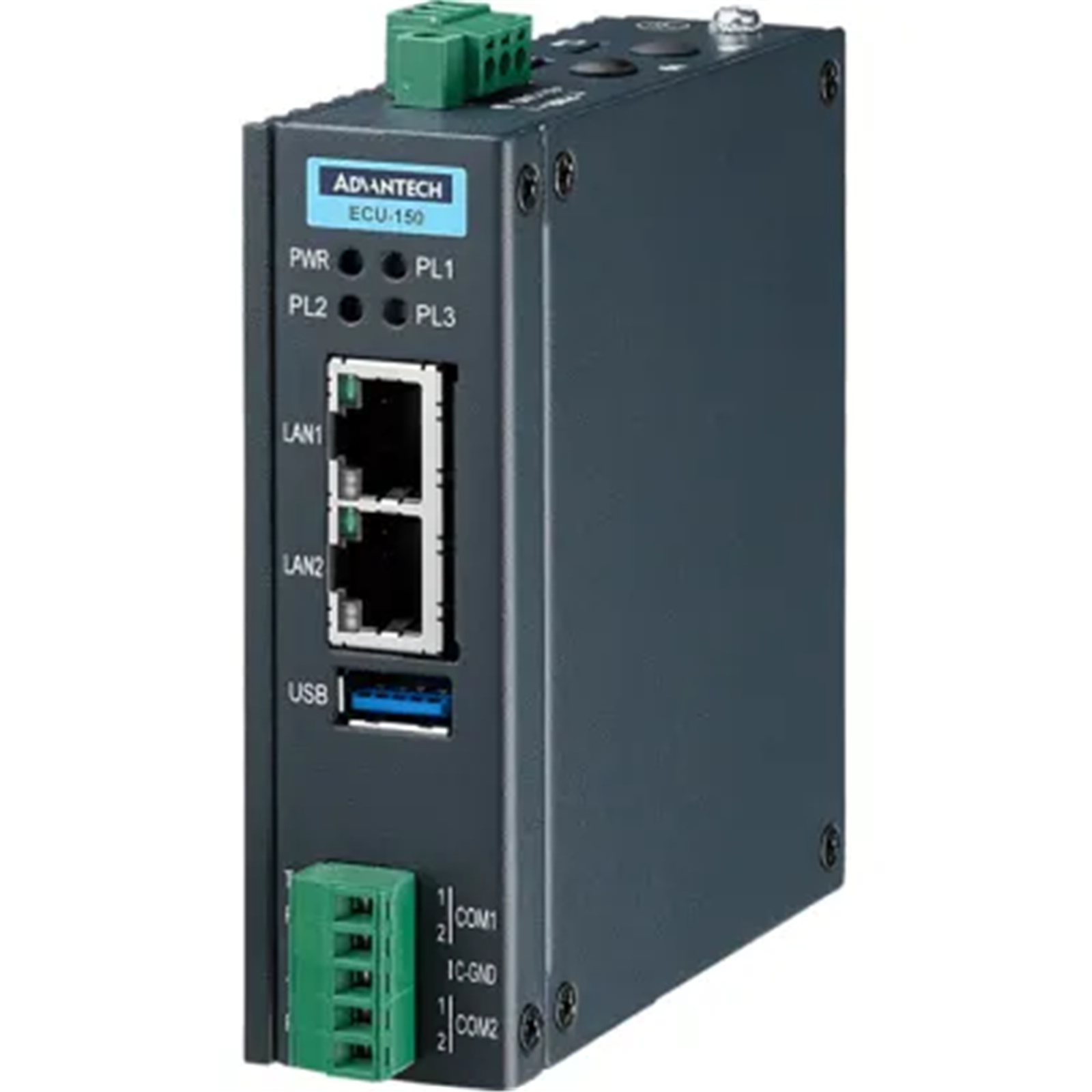

Advantech ECU-150-12A A53 1.3GHz,2xLAN,2xCOM,1xmPCIe w/EdgeLink

PB Tech price
PB Tech price
NZD $ 850 .00
$ 850 .00
$850.00  +GST
$850.00

Advantech ECU-150-12A A53 1.3GHz,2xLAN,2xCOM,1xmPCIe w/EdgeLink

  • Brand: Advantech
  • MPN: ECU-150-12A
  • Part #: IPCAVH220408
  • UPC:
PB Tech price
NZD $ 850 .00 $ 850 .00


Delivery: Order now and it ships on 25 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$850.00  +GST
$850.00

Features

Compact High-Performance IoT Gateway with NXP i.MX8M Quad Core Cortex A53, 2 LAN, 2 COM & 1 USB

- NXP i.MX8M Quad Core Cortex A53 1.3G CPU
- DDR4 2GB RAM, 16GB eMMC for system storage
- 2 x RS-232/485 isolated serial ports
- 2 x 10/100/1000 Ethernet ports
- 1 x Mini-PCIe for WIFI/Cellular/4G
- Support web service for remotely on-line monitoring
- Support SD card & on-line firmware update
- Support Modbus, IEC-60870-5, DNP3.0, OPC-UA, BACNet protocol (ECU-150-12A1&ECU-150-12A1U need container EdgeLink)
- Support Data logger on SD card

Specifications

General

Humidity (Storage)

5~95% RH (non-condensing)

Programming Language

Linux C

Protocol

OPC-UA Client & Server, DNP3.0 Client & Server,
IEC-60870-5-104 Master & Slave, IEC-60870-5-101
Slave, Modbus RTU/TCP Master & Slave, BACNet/IP
Server

Grounding Protection

Chassis grounding

Hardware

LAN

2 x 10/100/1000 Base-T Ethernet

Watchdog Timer

Programmable

Expansion

1 x Full-size mPCIe slot

Certification

CE, FCC, UL

OS Support

Linux

Power Input

10~30 VDC

CPU

NXP® ARM® Cortex™ A53 i.MX8M 1.3 GHz Quad-Core

Memory

1 x LPDDR4 with 2 GB

Storage

16 GB eMMC

LED Indicators

Power, LAN (Active, Link), Serial (Tx/Rx), Programmable

I/O Interface

Serial Ports

2 x RS-232/485 (Terminal Block)

USB Ports

1 x USB 3.0

Power Connector

1 x 3-Pin Terminal Block

Environment

Vibration Protection

1 Grms, random

Ingress Protection

IP30

Operating Temperature

-40~70 °C (-40~158 °F)

Storage Temperature

-40~85 °C (-40~185 °F)

Isolation Voltage

2,500 VDC

Expansion Function

SIM card slot

Nano SIM card

Mechanical

Mounting

Wall, DIN-rail

Form Factor

Passive Cooling and Front Accessible

Enclosure

Aluminum housing, Steel

Dimension (W x H x D)

100 x 93 x 30 mm

Manufacturer Part No:
ECU-150-12A
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCAVH220408
Product Model:
ECU-150-12A
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
