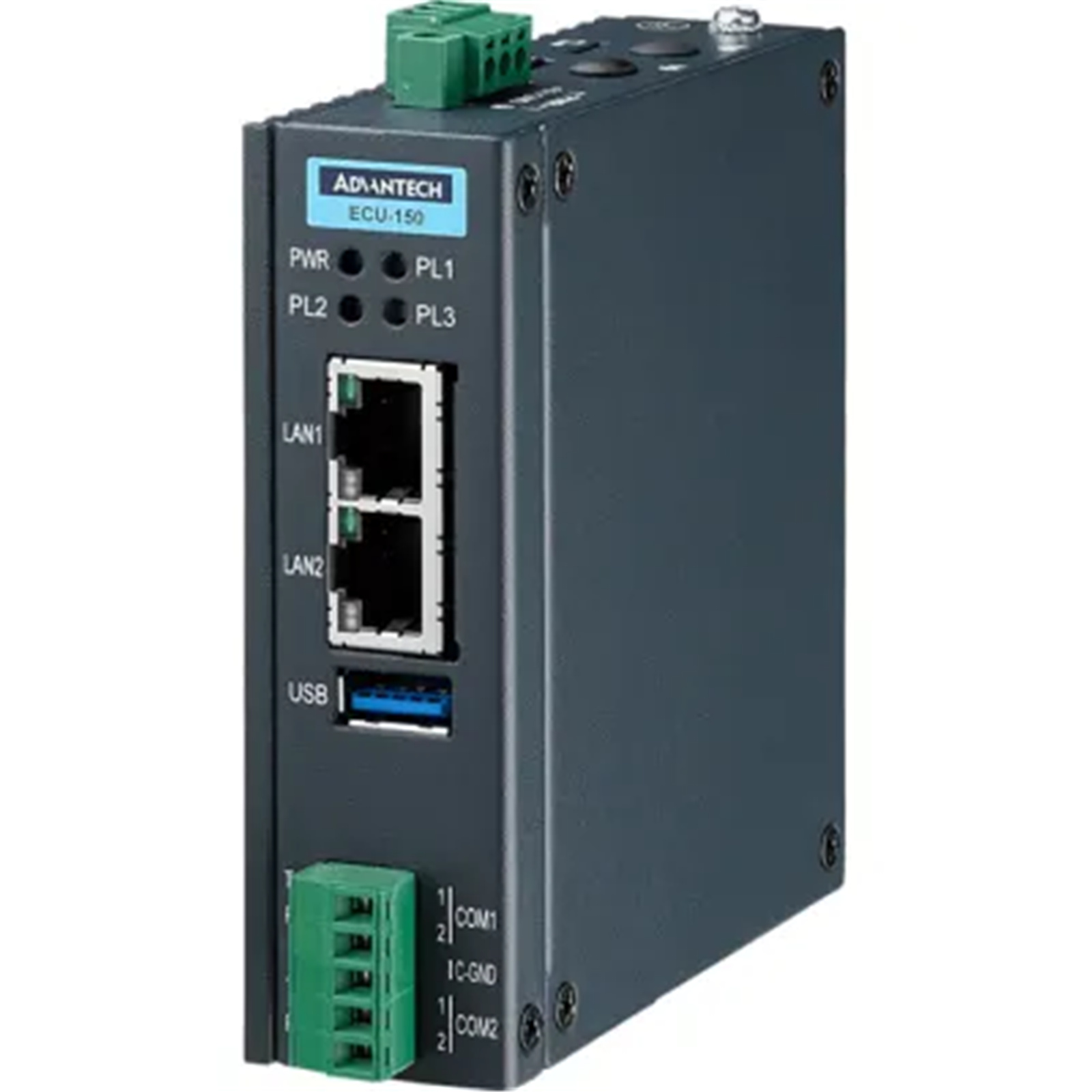

Advantech ECU-150-12A A53 1.3GHz,2xLAN,2xCOM,1xmPCIe w/EdgeLink
- Brand: Advantech
- MPN: ECU-150-12A
- Part #: IPCAVH220408

Product URL: https://www.pbtech.com/product/IPCAVH220408/Advantech-ECU-150-12A-A53-13GHz2xLAN2xCOM1xmPCIe-w
Features
Compact High-Performance IoT Gateway with NXP i.MX8M Quad Core Cortex A53, 2 LAN, 2 COM & 1 USB
- NXP i.MX8M Quad Core Cortex A53 1.3G CPU
- DDR4 2GB RAM, 16GB eMMC for system storage
- 2 x RS-232/485 isolated serial ports
- 2 x 10/100/1000 Ethernet ports
- 1 x Mini-PCIe for WIFI/Cellular/4G
- Support web service for remotely on-line monitoring
- Support SD card & on-line firmware update
- Support Modbus, IEC-60870-5, DNP3.0, OPC-UA, BACNet protocol (ECU-150-12A1&ECU-150-12A1U need container EdgeLink)
- Support Data logger on SD card
Specifications
General
Humidity (Storage)
5~95% RH (non-condensing)
Programming Language
Linux C
Protocol
OPC-UA Client & Server, DNP3.0 Client & Server,
IEC-60870-5-104 Master & Slave, IEC-60870-5-101
Slave, Modbus RTU/TCP Master & Slave, BACNet/IP
Server
Grounding Protection
Chassis grounding
Hardware
LAN
2 x 10/100/1000 Base-T Ethernet
Watchdog Timer
Programmable
Expansion
1 x Full-size mPCIe slot
Certification
CE, FCC, UL
OS Support
Linux
Power Input
10~30 VDC
CPU
NXP® ARM® Cortex™ A53 i.MX8M 1.3 GHz Quad-Core
Memory
1 x LPDDR4 with 2 GB
Storage
16 GB eMMC
LED Indicators
Power, LAN (Active, Link), Serial (Tx/Rx), Programmable
I/O Interface
Serial Ports
2 x RS-232/485 (Terminal Block)
USB Ports
1 x USB 3.0
Power Connector
1 x 3-Pin Terminal Block
Environment
Vibration Protection
1 Grms, random
Ingress Protection
IP30
Operating Temperature
-40~70 °C (-40~158 °F)
Storage Temperature
-40~85 °C (-40~185 °F)
Isolation Voltage
2,500 VDC
Expansion Function
SIM card slot
Nano SIM card
Mechanical
Mounting
Wall, DIN-rail
Form Factor
Passive Cooling and Front Accessible
Enclosure
Aluminum housing, Steel
Dimension (W x H x D)
100 x 93 x 30 mm
