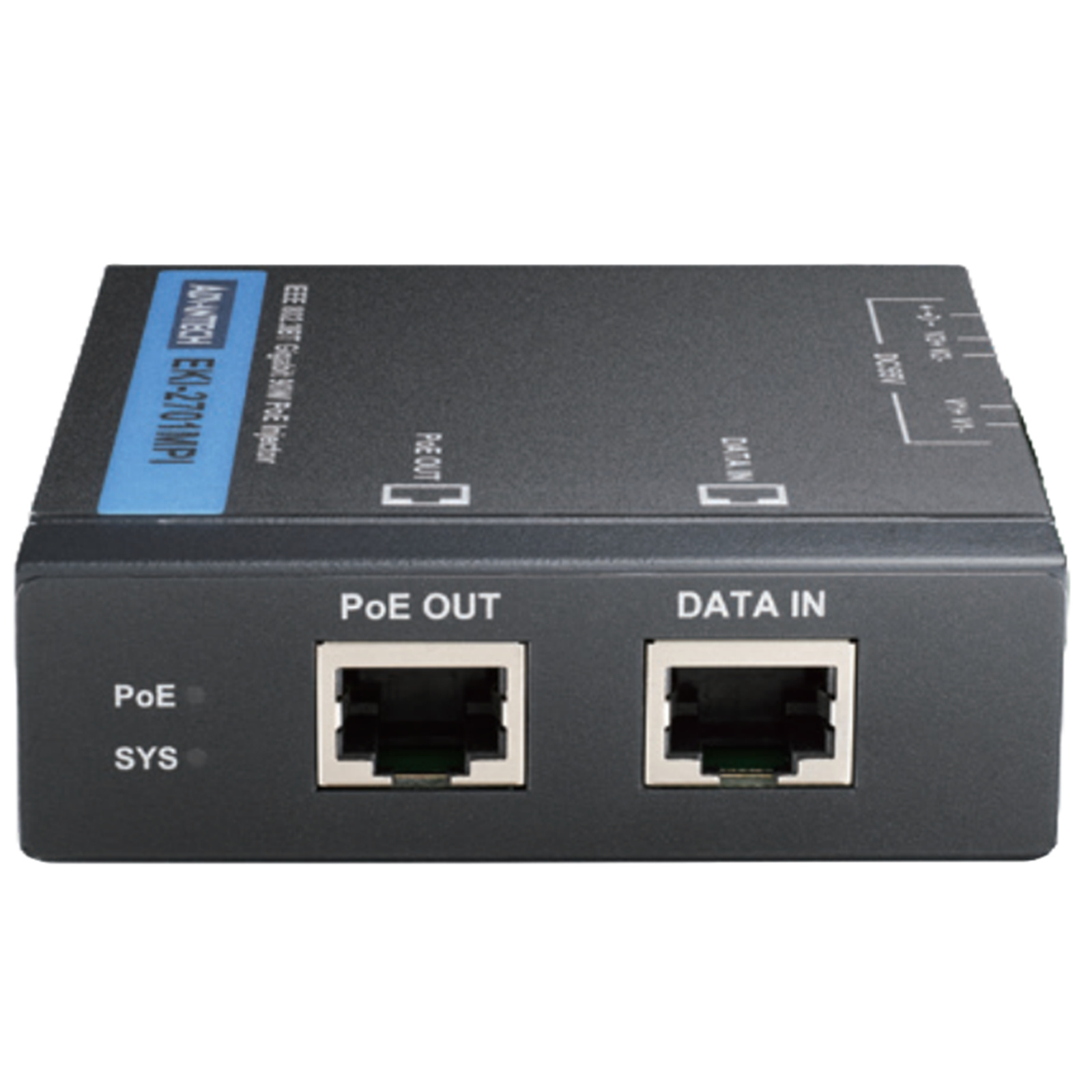

Advantech EKI-2701MPI-PS-AE Hardened PoE injector, 1000Mbps, 90W

PB Tech price
PB Tech price
NZD $ 719 .00
$ 719 .00

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Advantech EKI-2701MPI-PS-AE Hardened PoE injector, 1000Mbps, 90W

  • Brand: Advantech
  • MPN: EKI-2701MPI-PS-AE
  • Part #: IPCAVH220498
  • UPC:
PB Tech price
NZD $ 719 .00 $ 719 .00


Delivery: Out of stock
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info

Features

EKI-2701MPI is a next-generation injector which is compliant with IEEE 802.3af/at/bt. With PoE (Power over Ethernet) technology, both data and power to Ethernet-enabled devices run on a standard CAT5 cable. Based on the IEEE 802.3af/at/bt PoE standard, it provides the capability to serve up to 90W on a single port using four pairs of Cat. 5e/ Cat.6 Ethernet cabling.

The EKI-2701MPI injector flexibly deploys standard and high powered PD devices to transfer data and power simultaneously through one Ethernet cable while reaching distances of up to 100 meters. It supports dual power inputs via a pluggable terminal block or DC jack. DIN-rail and wall-mounting installation options provide greater user expediency.

To overcome the 100-meter transmit limitation of Ethernet cable for long distance distribution, the EKI-2701MPI-R PoE extender enables the PoE PD device to be installed up to 200 meters away. The EKI-2701MPI injector delivers data and power over 100 meters to the extender and then the PoE extender forwards the data while retaining power to remote PD sites.

- Supports 10/100/1000Base-T (X) for PoE out and Data in
- IEEE 802.3af/at/bt compliant
- Power input 55~57 VDC, injects power up to 90W
- Provides slim size and DIN-rail with IP40 metal mechanism
- Supports operating temperatures from -40 ~ 75°C

Specifications

Model

EKI-2701MPI-PS-AE Industrial Gigabit Mega PoE Injector with AC adapter

Communications

Standard

IEEE 802.3, 802.3u, 802.3x, 802.3af/at/bt, 802.3ab/802.3bz

LAN

10/100/1000Base-T (X)

Transmission Distance

Ethernet: Up to 100 m (mid-span)

Transmission Speed

Up to 1000 Mbps

Interface

Connectors

PoE OUT: RJ45
DATA IN: RJ45

LED Indicators

PoE, SYS

Power

Power Consumption

Max. 62 W (Full load PoE)

Power Input

55~57 VDC (Single input)

Power Output

90 W

Connectors

6P Pluggable Terminal Block, DC Jack

Mechanism

Dimensions (W x H x D)

84 x 80 x 25 mm (3.307" x 3.15" x 0.984")

Enclosure

IP40, Metal shell with solid mounting kits

Mounting

DIN-rail, Wall

Protection

Reverse Polarity

Present

Environment

Operating Temperature

EKI-2701MPI-PS-AE: 0 ~ 40°C (32 ~ 104°F)

Storage Temperature

EKI-2701MPI-PS-AE: -20 ~ 80°C (-4 ~ 176°F)

Operating Humidity

10 ~ 95% (non-condensing)

Storage Humidity

10 ~ 95% (non-condensing)

Certification

EMI

CE, FCC

EMS

EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8

Safety

UL62368

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

Manufacturer Part No:
EKI-2701MPI-PS-AE
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCAVH220498
Product Model:
EKI-2701MPI-PS-AE
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
