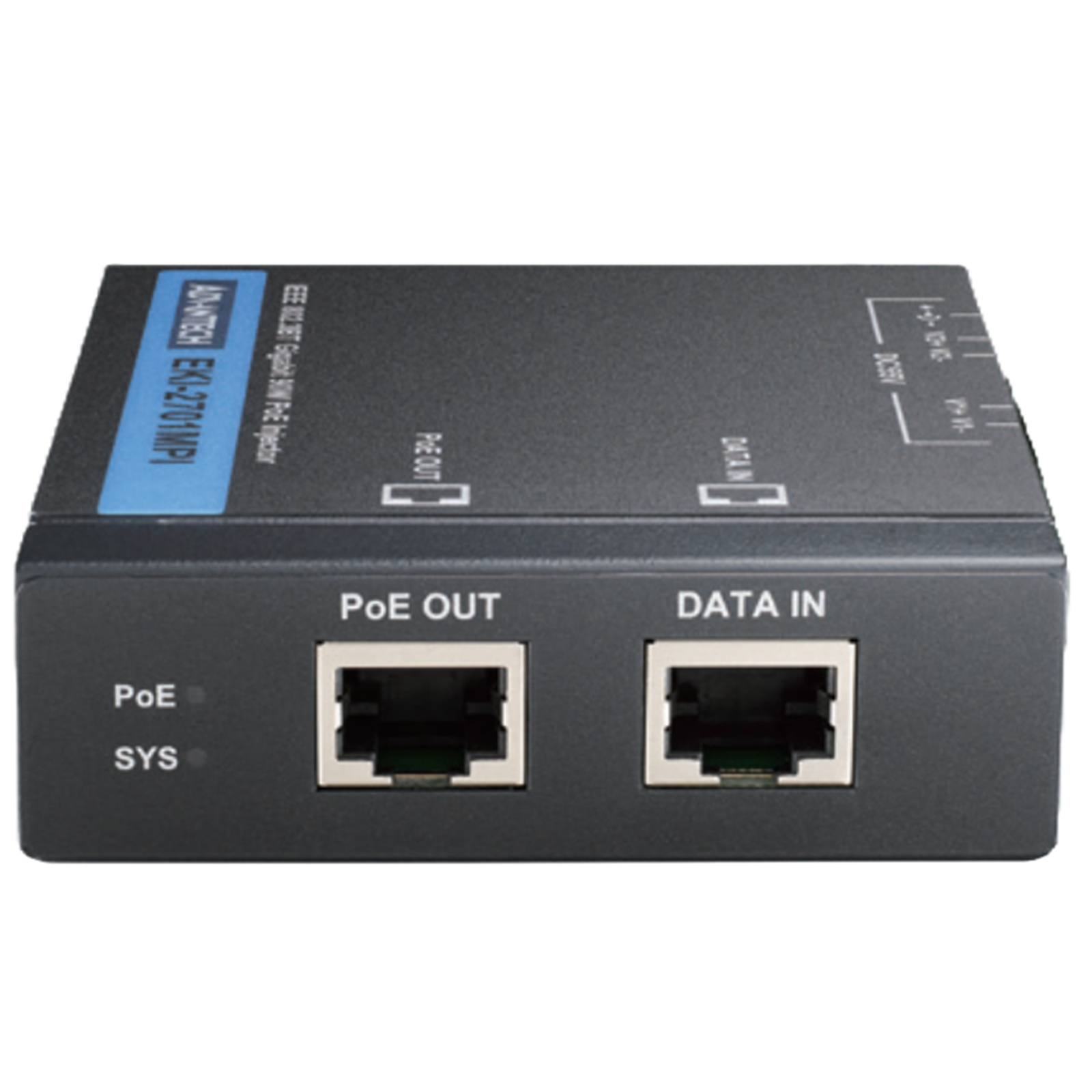

Advantech EKI-2701MPI-PS-AE Hardened PoE injector, 1000Mbps, 90W
Out of stock
Advantech EKI-2701MPI-PS-AE Hardened PoE injector, 1000Mbps, 90W
- Brand: Advantech
- MPN: EKI-2701MPI-PS-AE
- Part #: IPCAVH220498
- UPC:
View all shipping info
- Brand: Advantech
- MPN: EKI-2701MPI-PS-AE
- Part #: IPCAVH220498
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial PCs & IoT





Advantech EKI-2701MPI-PS-AE Hardened PoE injector, 1000Mbps, 90W
- Brand: Advantech
- MPN: EKI-2701MPI-PS-AE
- Part #: IPCAVH220498

Product URL: https://www.pbtech.com/au/product/IPCAVH220498/Advantech-EKI-2701MPI-PS-AE-Hardened-PoE-injector
Features
EKI-2701MPI is a next-generation injector which is compliant with IEEE 802.3af/at/bt. With PoE (Power over Ethernet) technology, both data and power to Ethernet-enabled devices run on a standard CAT5 cable. Based on the IEEE 802.3af/at/bt PoE standard, it provides the capability to serve up to 90W on a single port using four pairs of Cat. 5e/ Cat.6 Ethernet cabling.
The EKI-2701MPI injector flexibly deploys standard and high powered PD devices to transfer data and power simultaneously through one Ethernet cable while reaching distances of up to 100 meters. It supports dual power inputs via a pluggable terminal block or DC jack. DIN-rail and wall-mounting installation options provide greater user expediency.
To overcome the 100-meter transmit limitation of Ethernet cable for long distance distribution, the EKI-2701MPI-R PoE extender enables the PoE PD device to be installed up to 200 meters away. The EKI-2701MPI injector delivers data and power over 100 meters to the extender and then the PoE extender forwards the data while retaining power to remote PD sites.
- Supports 10/100/1000Base-T (X) for PoE out and Data in
- IEEE 802.3af/at/bt compliant
- Power input 55~57 VDC, injects power up to 90W
- Provides slim size and DIN-rail with IP40 metal mechanism
- Supports operating temperatures from -40 ~ 75°C
Specifications
Model
EKI-2701MPI-PS-AE Industrial Gigabit Mega PoE Injector with AC adapter
Communications
Standard
IEEE 802.3, 802.3u, 802.3x, 802.3af/at/bt, 802.3ab/802.3bz
LAN
10/100/1000Base-T (X)
Transmission Distance
Ethernet: Up to 100 m (mid-span)
Transmission Speed
Up to 1000 Mbps
Interface
Connectors
PoE OUT: RJ45
DATA IN: RJ45
LED Indicators
PoE, SYS
Power
Power Consumption
Max. 62 W (Full load PoE)
Power Input
55~57 VDC (Single input)
Power Output
90 W
Connectors
6P Pluggable Terminal Block, DC Jack
Mechanism
Dimensions (W x H x D)
84 x 80 x 25 mm (3.307" x 3.15" x 0.984")
Enclosure
IP40, Metal shell with solid mounting kits
Mounting
DIN-rail, Wall
Protection
Reverse Polarity
Present
Environment
Operating Temperature
EKI-2701MPI-PS-AE: 0 ~ 40°C (32 ~ 104°F)
Storage Temperature
EKI-2701MPI-PS-AE: -20 ~ 80°C (-4 ~ 176°F)
Operating Humidity
10 ~ 95% (non-condensing)
Storage Humidity
10 ~ 95% (non-condensing)
Certification
EMI
CE, FCC
EMS
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
Safety
UL62368
Shock
IEC 60068-2-27
Freefall
IEC 60068-2-32
Vibration
IEC 60068-2-6
