Advantech FPM-3191G-R3BE 19" SXGA Industrial Monitor with Resistive Touch Control, Direct VGA, and DVI Ports

PB Tech price
PB Tech price
NZD $ 3,449 .08
$ 3,449 .08
$3,449.08  +GST
$3,449.08

Advantech FPM-3191G-R3BE 19" SXGA Industrial Monitor with Resistive Touch Control, Direct VGA, and DVI Ports

  • Brand: Advantech
  • MPN: FPM-3191G-R3BE
  • Part #: IPCAVH220711
  • UPC:
PB Tech price
NZD $ 3,449 .08 $ 3,449 .08


Delivery: Order now and it ships on 30 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$3,449.08  +GST
$3,449.08

Features

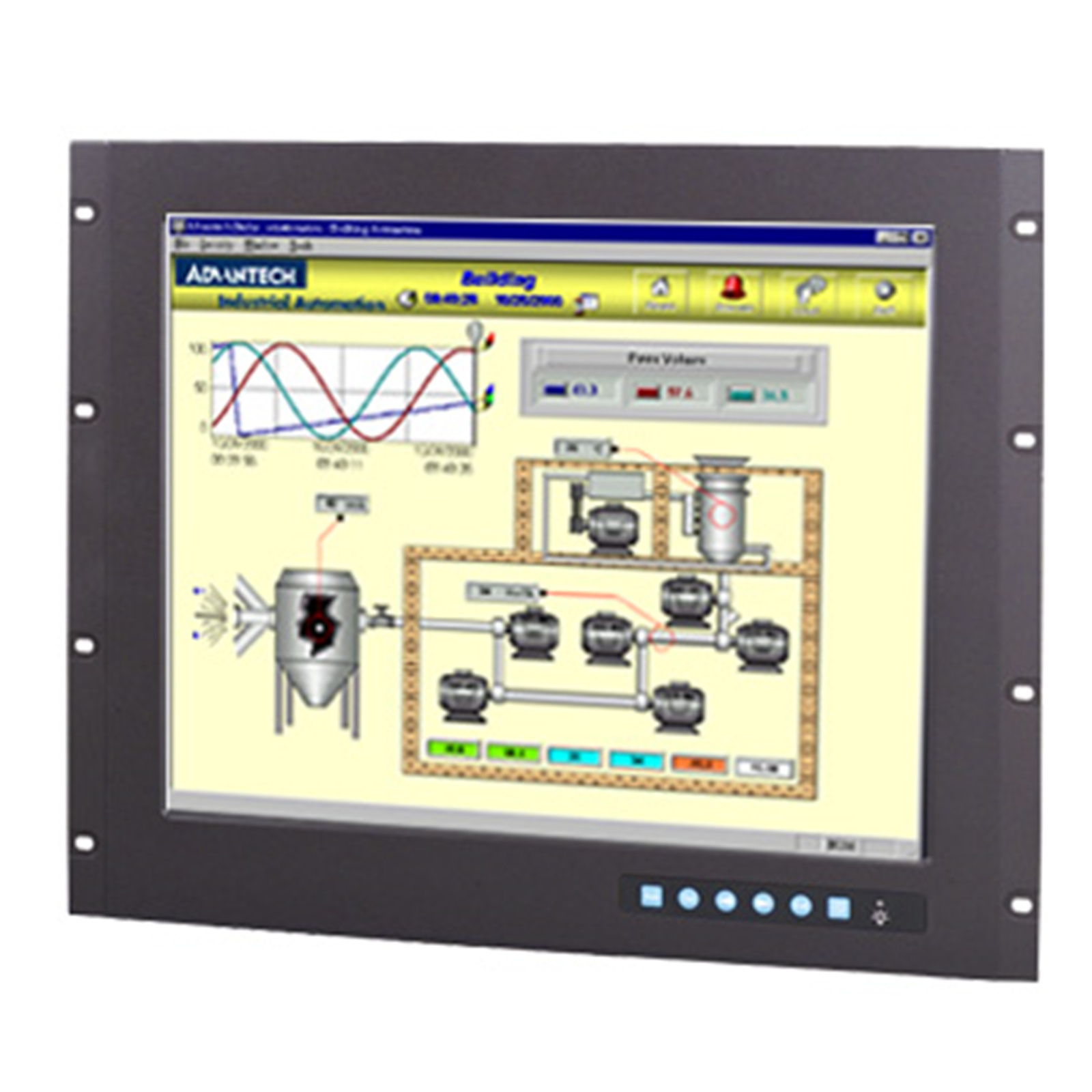

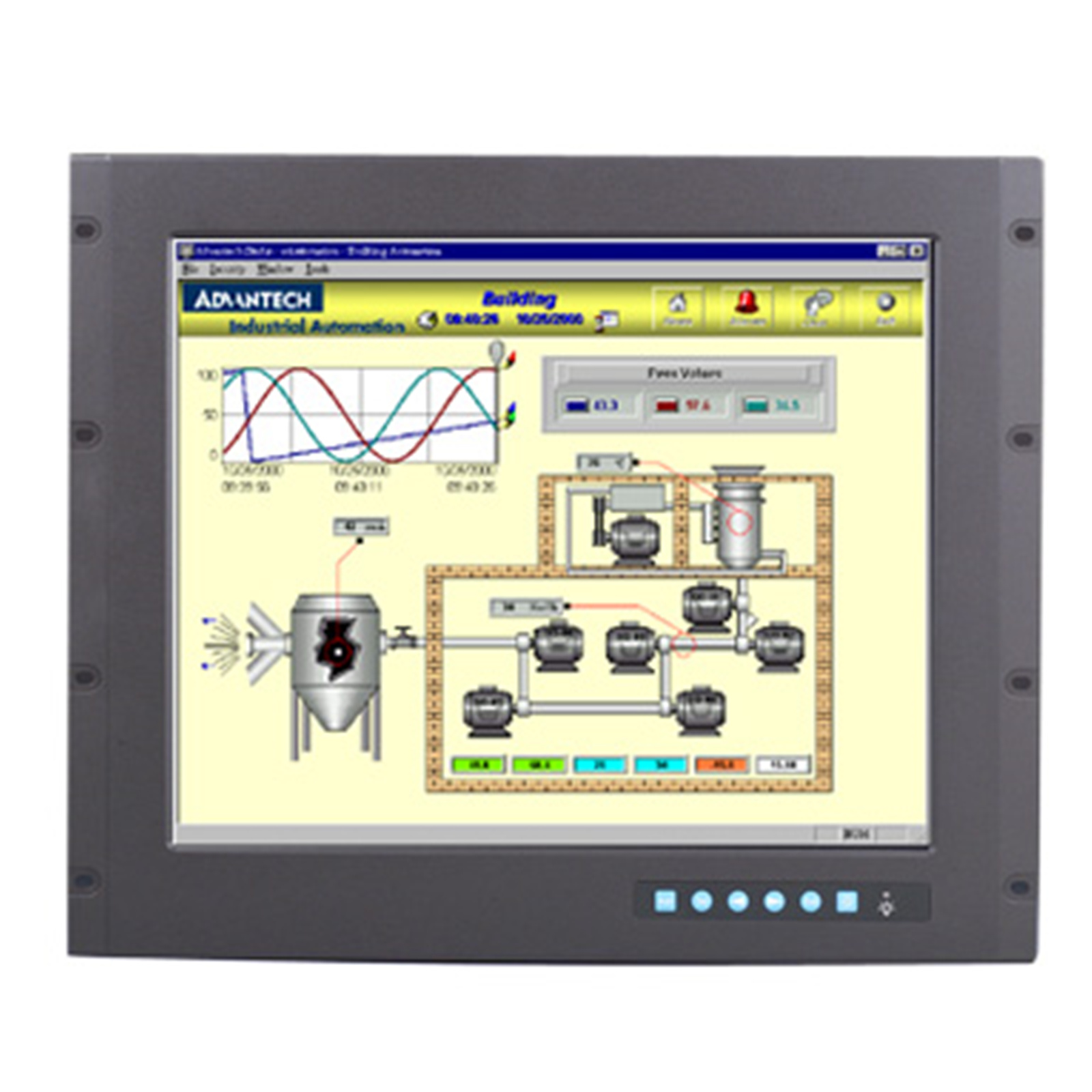

FPM-3191G is a 19" color TFT LCD flat panel monitor specifically designed for industrial applications. With a display size of 19", FPM-3191G provides an adequate display area with sharp and vivid images. The monitor also supports direct VGA signal transmissions, allowing users to upgrade the displays without altering the existing infrastructure. The provision of OSD function keys makes it easy to adjust the onscreen display. Furthermore, the stainless steel chassis and IP65-rated aluminum front panel ensure suitability for industrial applications.

- 19" SXGA TFT LED LCD with 50K backlight lifetime
- Robust design with stainless steel chassis and aluminum front panel
- Anti-glare screen with tempered glass and IP65-certified front panel
- Lockable OSD control pad on rear cover
- Supports 24 VDC power input
- Supports panel, wall, desktop, rack, or VESA arm mounting
- Supports 9U pre-drilled rackmount mounting holes



For more information: https://advdownload.advantech.com/productfile/PIS/FPM-3191G/file/FPM-3191G_DS(122922)20230106154719.pdf

Specifications

General

OSD Controls

OSD control pad on front panel

Certification

BSMI, CCC, CE, FCC Class A, UL

Dimensions (W x H x D)

482 x 399.2 x 67 mm (18.98 x 15.71 x 2.64 in)

Enclosure

Front panel: Aluminum with coating
Rear cover: Stainless steel chassis

Mount Options

Panel, wall, desktop, VESA arm, and 19" rackmount

Power Input

Phoenix Jack: 24 VDC input
Power Consumption 18 W + 20%

Video Port

VGA & DVI-D port

Weight (Net)

10.65 kg (23.46 Ibs)

LCD Display

Display Type

SXGA TFT LCD with LED backlight

Display Size

19"

Max. Resolution

1280 x 1024

Max. Color

16.7M

Viewing Angle (H/V °)

170/160

Luminance (cd/m²)

350

Backlight Life

50,000 hr

Contrast Ratio

1000:1

Touchscreen

Driver

Penmount 6000

Interface

RS-232 and USB

Lifespan

35 million touches at a single point

Light Transmission

> 80%

OS Support

Windows XP,2000,Vista,7,8/8.1,10 , XP/7/8/10 Embedded,CE,Linux

Power Consumption

+5 V @ 100 mA

Touch Resolution

Linearity

Environment

Operating Temperature

-20 ~ 60 °C (-4 ~ 140 °F)

Storage Temperature

-30 ~ 80 °C (-22 ~ 176 °F)

Humidity (Storage)

90% @ 50 °C non-condensing

IP Rating

Front panel is IP65 compliant

Vibration

5 ~ 500 Hz, 1 Grms (Operating, Random)

Manufacturer Part No:
FPM-3191G-R3BE
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCAVH220711
Product Model:
FPM-3191G-R3BE
Warranty: 12 months *
